Name: GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier
Brand: Xi'an Bairui Electrical Technology Co., Ltd.
SKU: GS5011-EX
Price: 8 USD
Availability: InStock

Hogar > productos > Transmisores y instrumentos >

GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier

GS5011-EX safety barrier switch

250V AC safety barrier

30V DC output switch

Place of Origin:

Shaanxi, China

Nombre de la marca:

chenzhu

Model Number:

GS5011-EX

Ahora Charle

Pida una cita

Detalles del producto

Solicitud:

aislador de señal

Tipo:

Aislador de señal analógica

Serie:

GS5000

Tipo de montaje:

DIN35mm

Descripción:

aislador de señal

Código de fecha de fabricación:

2024

Voltaje - Aislamiento:

8,2 VCC

Tecnología:

Acoplamiento magnético

Tensión - Suministro:

20-35 VCC

Energía aislada:

2500V

Tipo de canal:

Unidireccional

Número de canales:

Resaltar:

GS5011-EX safety barrier switch

250V AC safety barrier

30V DC output switch

Términos de pago y envío

Minimum Order Quantity

5 sets

Precio

8＄

Tiempo de entrega

5 días

Condiciones de pago

T/T

Capacidad de la fuente

500PCS/día

Productos relacionados

GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier

Ahora Charle

Endress+Hauser ITEMP TMT72 TMT82 TMT142B TMT162 TMT182B Temperature Transmitter 4-20mA Hart Head Mount Digital Sensor

Ahora Charle

GS5011-EX GS5012-EX 250V AC,2A or 30V DC,2A output switch quantity safety barrier

Ahora Charle

4-20mA Loop power supply HART transmission signal GS5031-EX GS5032-EX

Ahora Charle

Éntrenos en contacto con

86--18149042799

xianbairui@foxmail.com

Ahora Charle

Descripción de producto

GS5011-EX GS5012-EX Safety Barrier

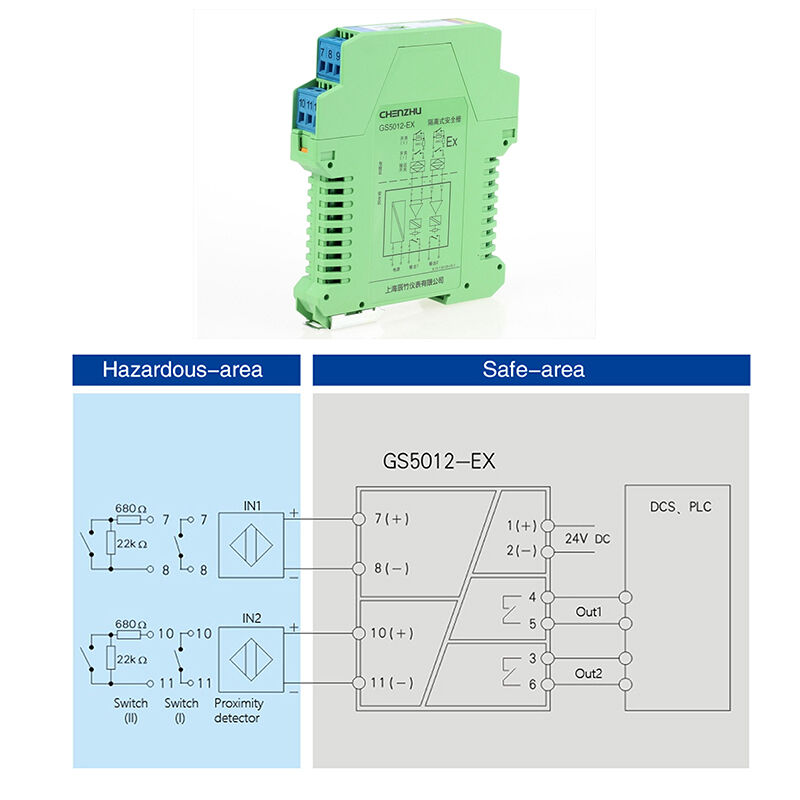

Relay output isolated barrier designed to transfer digital signals (switch or NAMUR proximity detectors) from hazardous areas to safe areas. Particularly suitable for explosion-proof elevators, security doors, and other explosion-proof equipment safety switch signal monitoring and processing. Features independent power supply with three-way isolation between power supply, input, and output.

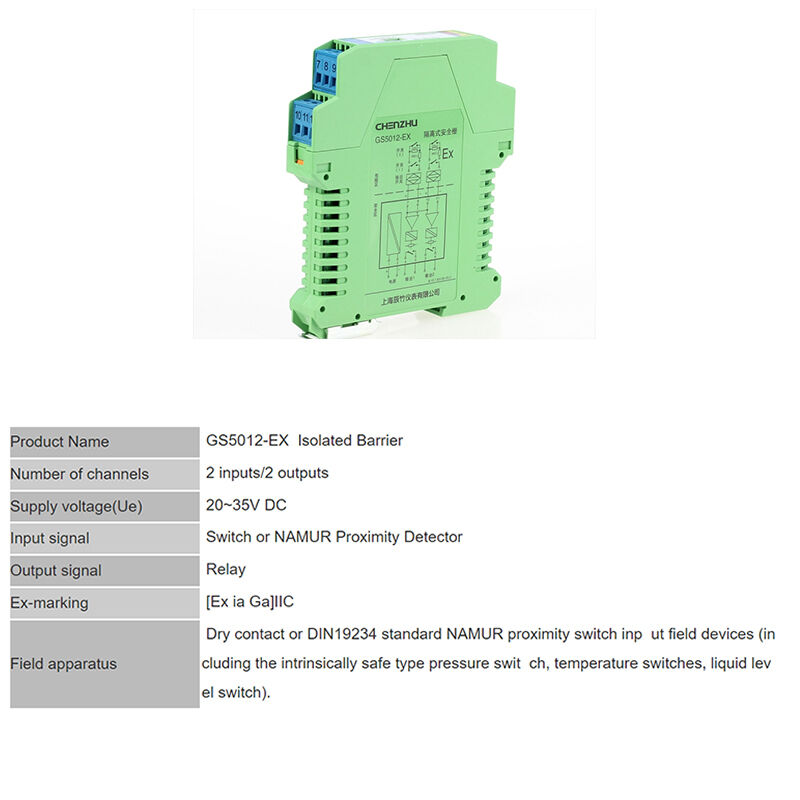

Technical Specifications

Parameter	GS5011-EX	GS5012-EX	GS5111-EX
Number of channels	1 in, 2 out	2 in, 2 out	1 in, 1 out
Response time	≤10ms
Input signal	Dry contact; NAMUR type proximity switch
Open-circuit voltage	≤28V	≤28V	≤28V
Distribution voltage	Voltage at 20mA: ≥15.5V	Voltage at 20mA: ≥15.5V	Voltage at 20mA: ≥15.5V
Normal operating current	≤25mA	≤25mA	≤25mA
Output signal	250V AC, 2A or 30V DC, 2A
Current output load resistor	RL≤300Ω (550Ω optional)	RL≤300Ω (550Ω optional)	RL≤300Ω (550Ω optional)
Voltage output load resistor	RL 330kΩ or higher	RL 330kΩ or higher	RL 330kΩ or higher
Supply voltage (Ue)	20-35V DC	20-35V DC	20-35V DC
Power protection	Reverse power supply protection	Reverse power supply protection	Reverse power supply protection
Current consumption	≤75mA (at 24V with 20mA output)	≤75mA (at 24V with 20mA output)	≤75mA (at 24V with 20mA output)
Power supply mode	Independent power supply	Independent power supply	Independent power supply
Power connection method	Terminal power supply	Terminal power supply	Terminal power supply
Material	PA	PA	PA
Protection grade	IP20	IP20	IP20

About Bailui Electric Technology Co., Ltd.

Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on sensor product research, development, design, production, and trade. With over ten years of technology accumulation, we follow the business philosophy of "technology first and service first" to provide customers with complete, mature application solutions. Our expertise spans pharmaceutical, aerospace, chemical, electronics, and other industries.

With extensive experience in foreign trade, we handle all aspects of international business professionally. Our company commitment: "reasonable price, short production time, satisfactory after-sales service." We welcome cooperation with customers for mutual development and benefit. Potential buyers are encouraged to contact us.

Frequently Asked Questions

What's your idea about your offer?

We operate our own factory and offer high quality products at competitive prices.

What's the MOQ?

The minimum order quantity is one piece, with pricing based on quantity - larger orders receive better pricing.

What type of payment do you have available?

We accept TT and L/C for sample orders. Western Union, Moneygram, and Aliexpress payments are also available.

What's the delivery time?

7-10 days after we receive payment.

How to make an order?

Tell us the size and quantity you need, or describe your application. Our technicians will recommend the appropriate size. After payment to our bank account, we will arrange production and ship as soon as possible.
