GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation

GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation

NAMUR digital isolators signal amplifiers

explosion-proof signal isolation amplifiers

safe zone digital isolators amplifiers

Place of Origin:

Shaanxi, China

Brand Name:

chenzhu

Model Number:

GS8512-EX

Chat Now
Request A Quote
GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation
Product Details
Application:
Signal Isolator
Type:
Analog Signal Isolator
Series:
GS8500
Mounting Type:
DIN35mm
Description:
Signal Isolator
Manufacturing Date Code:
2024
Voltage - Isolation:
8.2vDC
Technology:
Magnetic Coupling
Voltage - Supply:
20-35V DC
Isolated Power:
2500v
Channel Type:
Unidirectional
Number Of Channels:
2
Highlight:

NAMUR digital isolators signal amplifiers

,

explosion-proof signal isolation amplifiers

,

safe zone digital isolators amplifiers

Payment & Shipping Terms
Minimum Order Quantity
5 sets
Price
Negotiable
Delivery Time
3-5days
Payment Terms
L/C,D/A,D/P,T/T
RELATED PRODUCTS
Good price Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer online

Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer

Chat Now
Good price Chenzhu GS8512-EX.22 Isolation Amplifier AC Motor Signal Converter Safety Barrier CJ-SG SC-VA for Distribution online

Chenzhu GS8512-EX.22 Isolation Amplifier AC Motor Signal Converter Safety Barrier CJ-SG SC-VA for Distribution

Chat Now
Good price GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation online

GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation

Chat Now
Good price PR Electronics 4116 Power Supply and signal Isolator for 2-wire Transmitters PR 4116 Universal Transmitter online

PR Electronics 4116 Power Supply and signal Isolator for 2-wire Transmitters PR 4116 Universal Transmitter

Chat Now
CONTACT US
86--18149042799
xianbairui@foxmail.com
Chat Now
Product Description
GS8512-EX NAMUR Digital Isolators Signal Amplifiers
Designed for explosion-proof and safe zones isolation, these digital isolators provide reliable signal amplification and protection in hazardous environments.

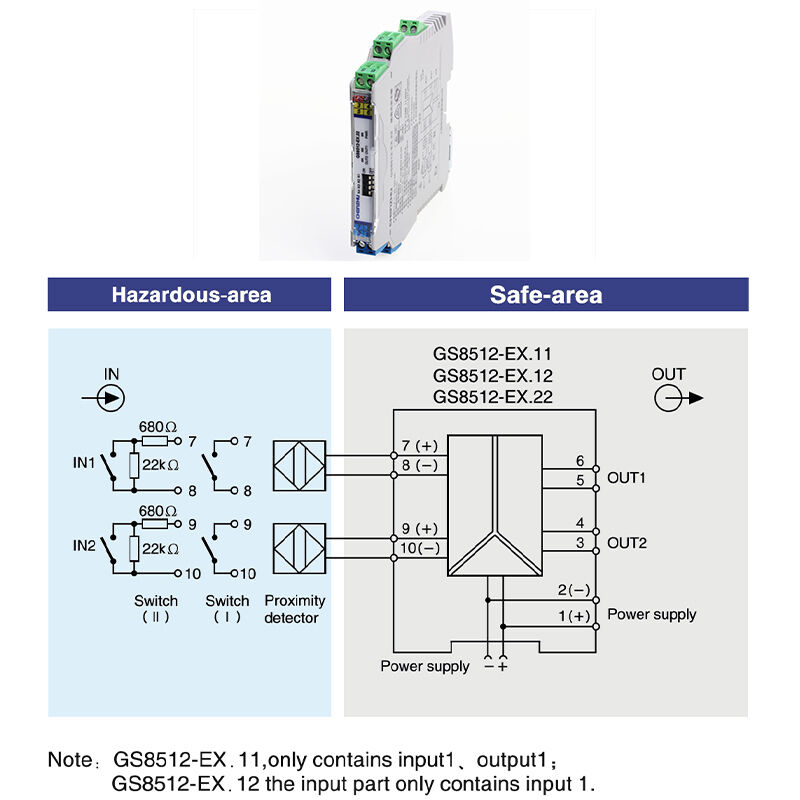

 GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation 0

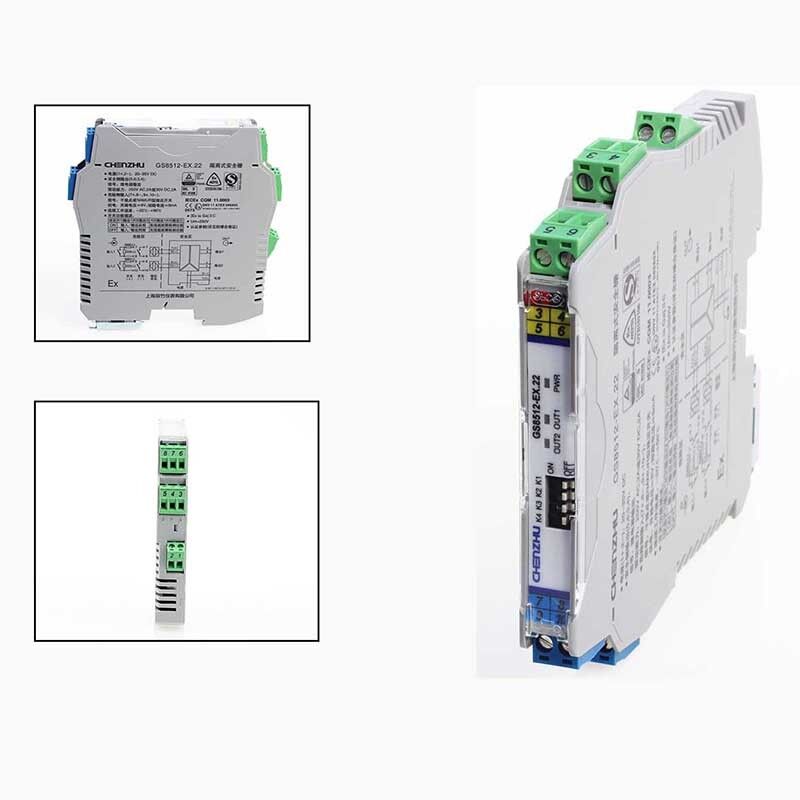

  • GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation 1
Technical Specifications
ModelGS8512-EX.22GS8512-EX.12GS8512-EX.11
Number of channels2 in and 2 out1 in, 2 out1 in, 1 out
Response time≤10ms

Insulation strengthNon-intrinsically safe terminal to intrinsically safe terminal ≥2500V AC, power supply to non-intrinsically safe terminal ≥500V AC

Insulation resistanceNon-intrinsically safe terminal to intrinsically safe terminal ≥100MΩ, power supply to non-intrinsically safe terminal ≥100MΩ

Electromagnetic compatibilityComplies with IEC 61326-1(GB/T 18268), IEC 61326-1

Explosion-proof mark[Ex ia Ga]ⅡC; [Ex ia Da]ⅢC

Connected field devicesDry contact or NAMUR type proximity switch inputs complying with DIN19234 standards, intrinsically safe pressure switches, temperature switches, liquid level switches

Applicable placesInstalled in safe locations, connects to intrinsically safe instruments in hazardous areas up to Zone 0 IIC, Zone 20, and IIIC

Input signalDry contact; NAMUR type proximity switch

Open-circuit voltage≈8V

Short-circuit current≈8mA

Driving ability250V AC, 2A or 30V DC, 2A250V AC, 2A or 30V DC, 2A
Load typeResistive loadResistive load
Output signalRelayRelay
Supply voltage (Ue)20~35V DC

Power protectionReverse power supply protection

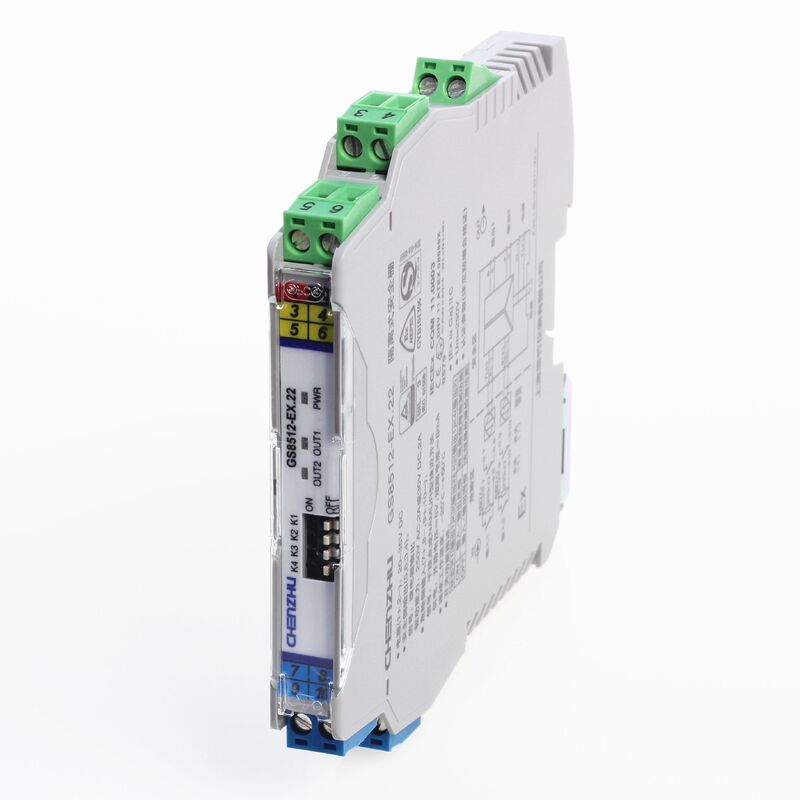

 GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation 2
About Bailui Electric Technology Co., Ltd.
Established in January 2013, Bailui Electric Technology is a professional company focused on sensor product R&D, design, production, and trade. With over ten years of technology accumulation, we follow the business philosophy of "technology first and service first" to provide customers with complete application solutions.
Our expertise spans multiple industries including pharmaceutical, aerospace, chemical, and electronics. We have extensive experience in international trade and are committed to delivering reasonable prices, short production times, and satisfactory after-sales service.

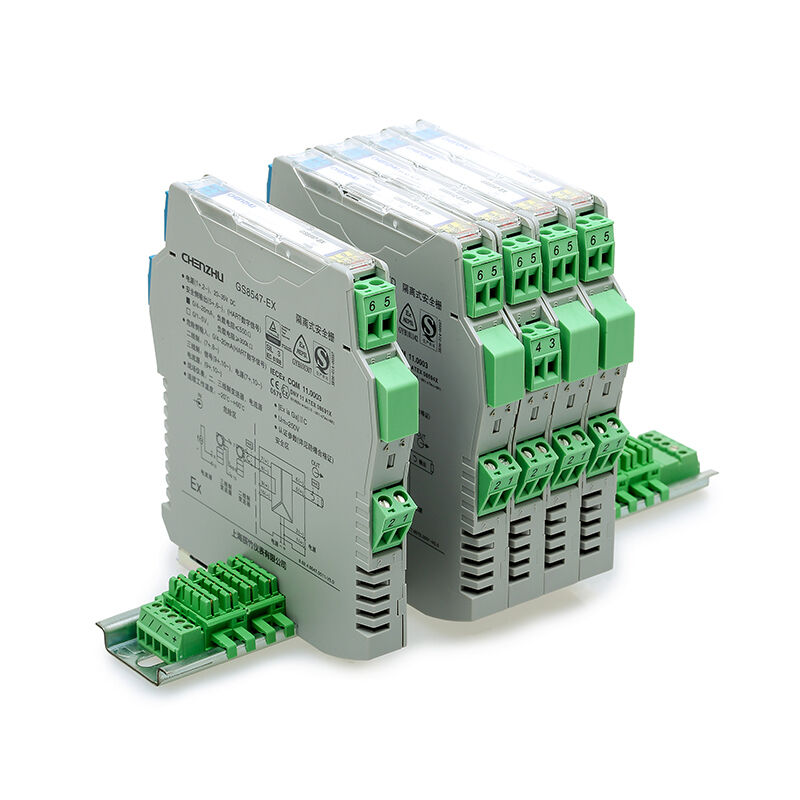

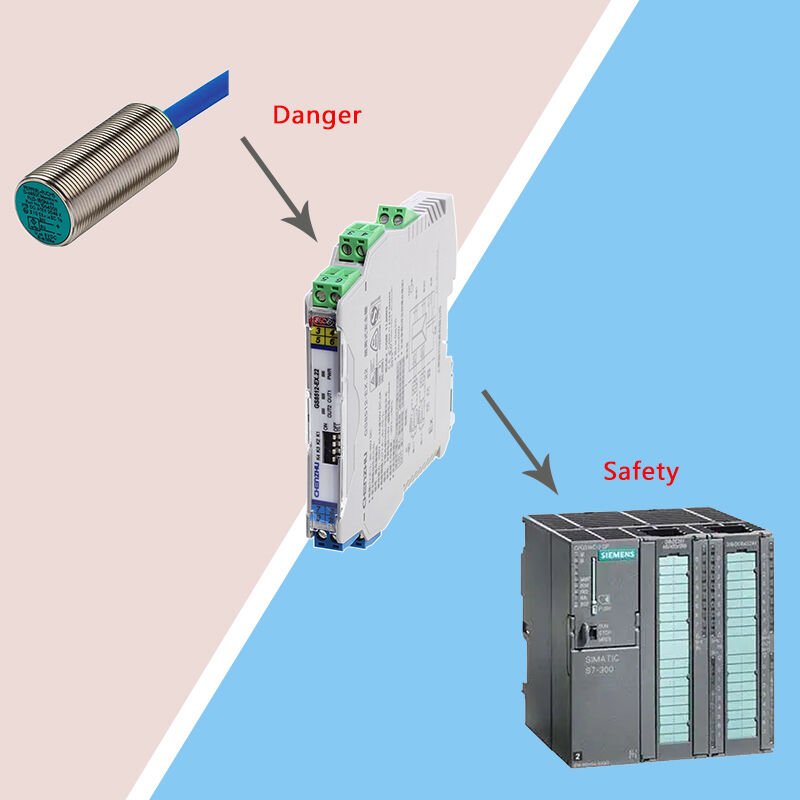

GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation 3 GS8512-EX NAMUR Digital Isolators Signal Amplifiers for Explosion-Proof and Safe Zones Isolation 4
Frequently Asked Questions
What's your idea about your offer?
We have our own factory and offer high quality products with competitive pricing.
What's the MOQ?
The minimum order quantity is one piece, with pricing based on quantity - larger orders receive better pricing.
What type of payment do you have available?
We accept TT and L/C for sample orders, with Western Union, Moneygram, and Aliexpress also available.
What's the delivery time?
7-10 days after we receive payment.
How to make an order?
Tell us the size and quantity you need or describe your application. Our technicians will recommend the appropriate size. After payment to our bank account, we will arrange production and ship as soon as possible.
