Place of Origin:
Shaanxi, China
Brand Name:
Bairui Electric
Model Number:
5714

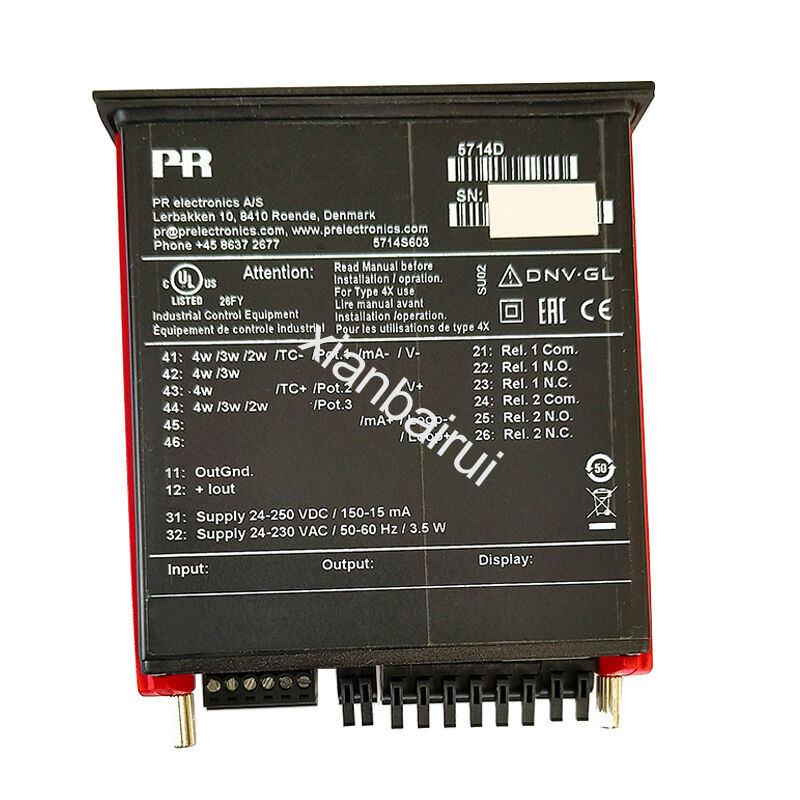

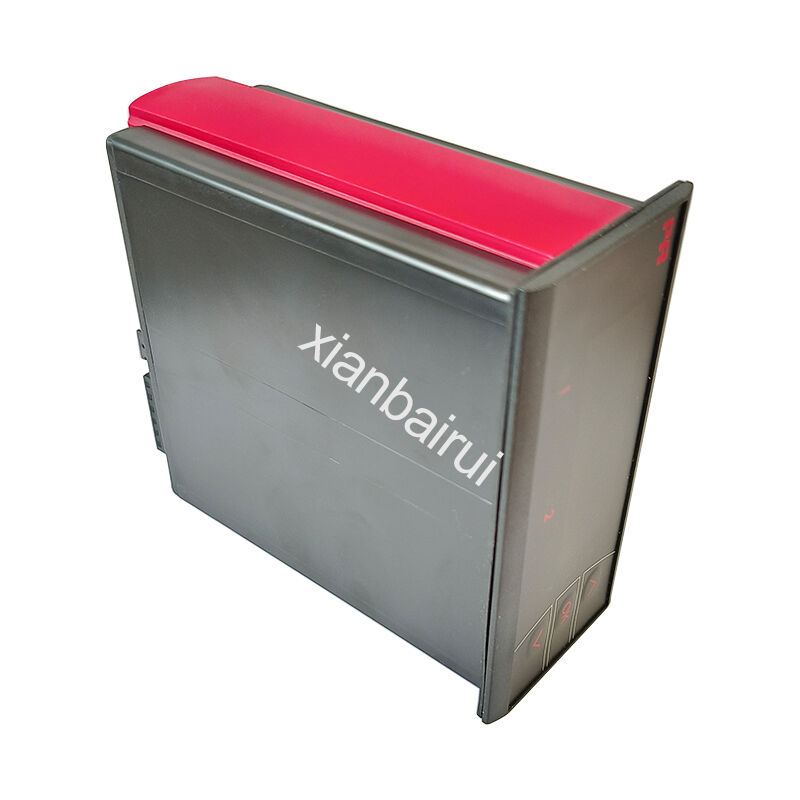

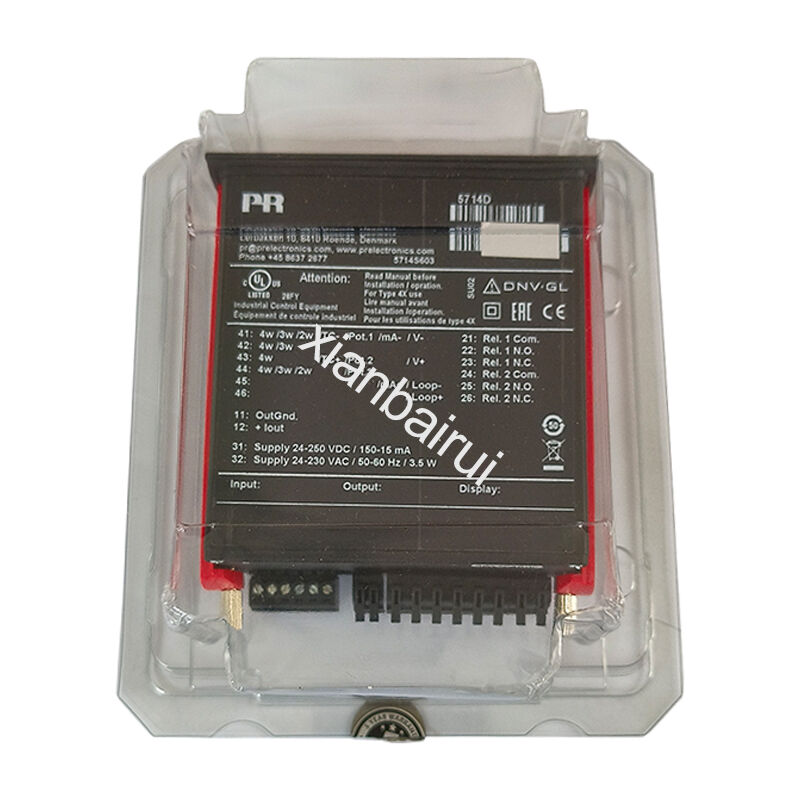

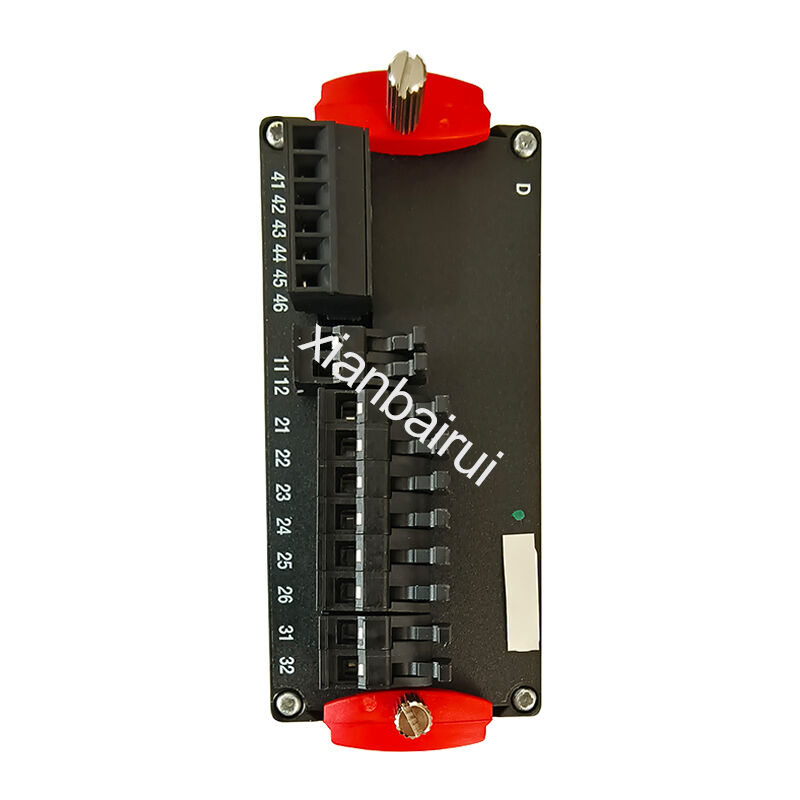

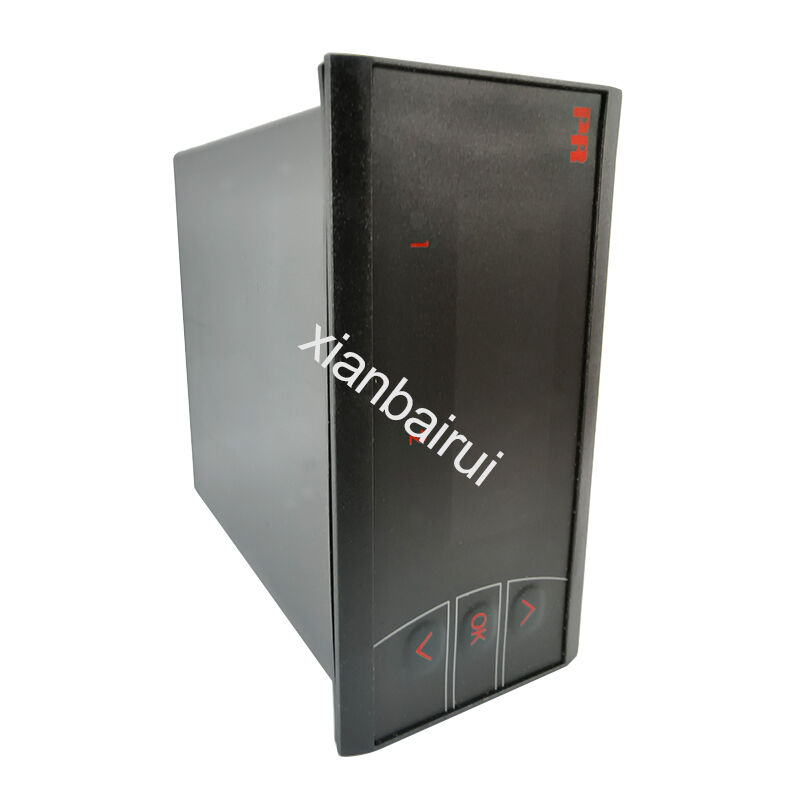

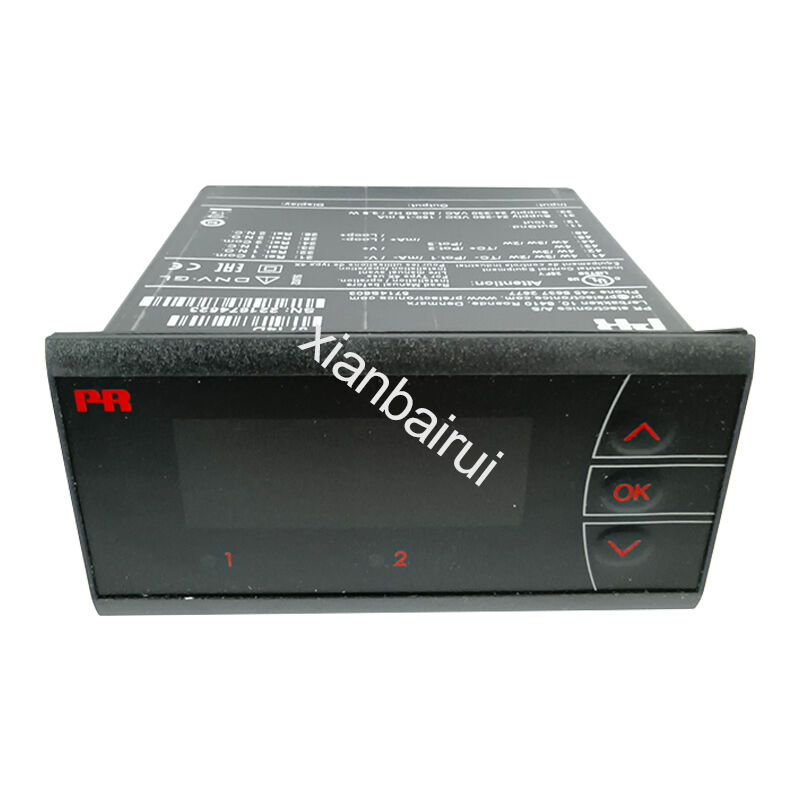

The PR electronics 5714 series is a versatile multifunctional digital display table designed for industrial applications. With multiple input options and robust construction, it provides reliable measurement and control capabilities.
| Installation Mode | Open mounting |
| Model Numbers | 5714A, 5714B, 5714C, 5714D |
| Origin | Denmark |
| Brand | PR electronics |
| Feature | PID digital display table |
| mA Measuring Range | 0...23 mA / 16 mA minimum range |
| Voltage Measuring Range | 0...12 VDC / 0.8 V minimum range |
| RTD Measuring Range | -200...+850°C |
| Linear Resistance Range | 0...10000 Ω |
| Potentiometer Range | 10 Ω...100 kΩ |
| Sensor Connections | RTD 2-wire, 3-wire, 4-wire |
| TC Type | BEJKLNRSTUW3W5Lr |
| Cold-end Compensation | Internal |
| Reference Voltage / 2-wire Power Supply | - / > 15 VDC |
| Display Type | 4-bit LED |
| Display Height | 13.8 mm |
| Relay | 2 x SPDT, AC: 500 VA |
| Ambient Temperature | -20...+60°C |
| Supply Voltage | 21.6...253 V AC / 19.2...300 V DC |
| Maximum Power Consumption | 3.5W |
| Isolation Voltage | 2.3 kVAC test / 250 VAC working |
| Response Time | < 400 ms / < 1 s |
| Precision | < ±0.1% measurement value |
| Temperature Coefficient | < ±0.01% measurement value / °C |
| NAMUR | NE43 |
| Parameter Setting | Panel button |
| Structural Dimensions | 48 x 96 x 120 mm |
| Opening Size | 44.5 x 91.5 mm |
| Application Industry | Industry and ship |
