Place of Origin:
Shaanxi, China
Brand Name:
chenzhu
Model Number:
GS5011-EX

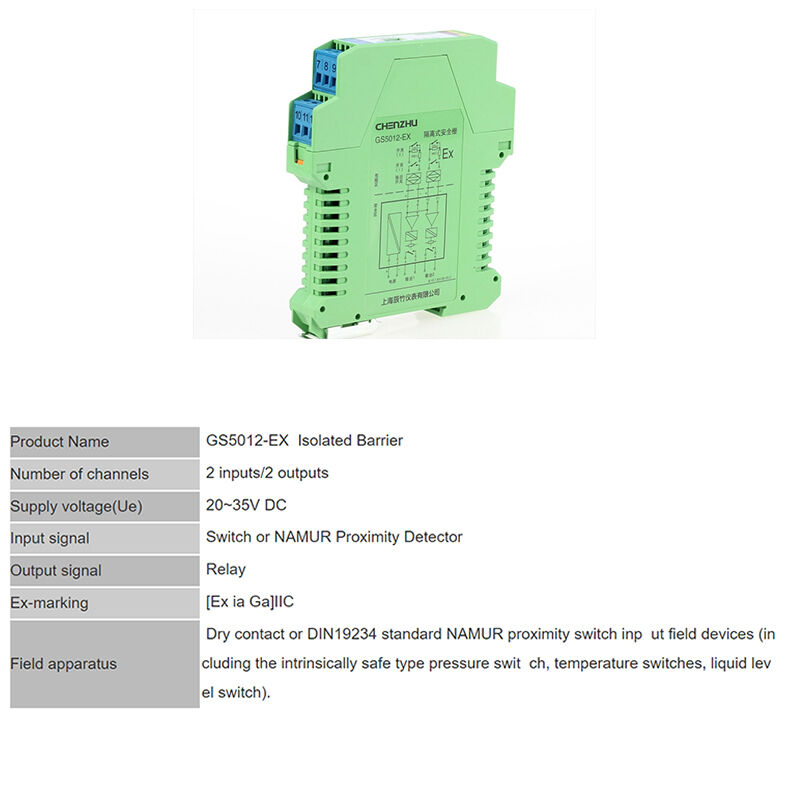

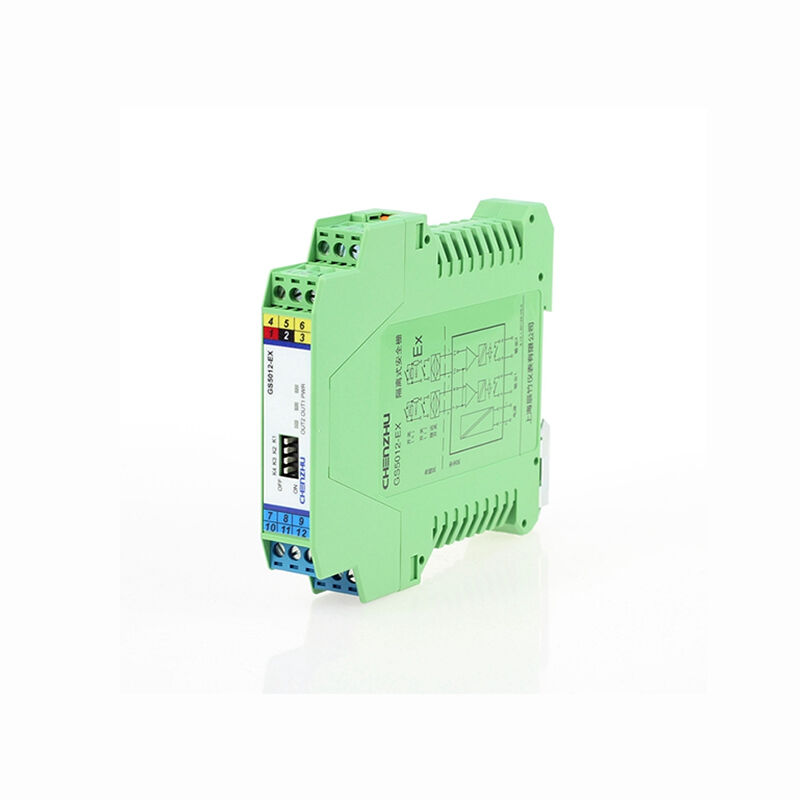

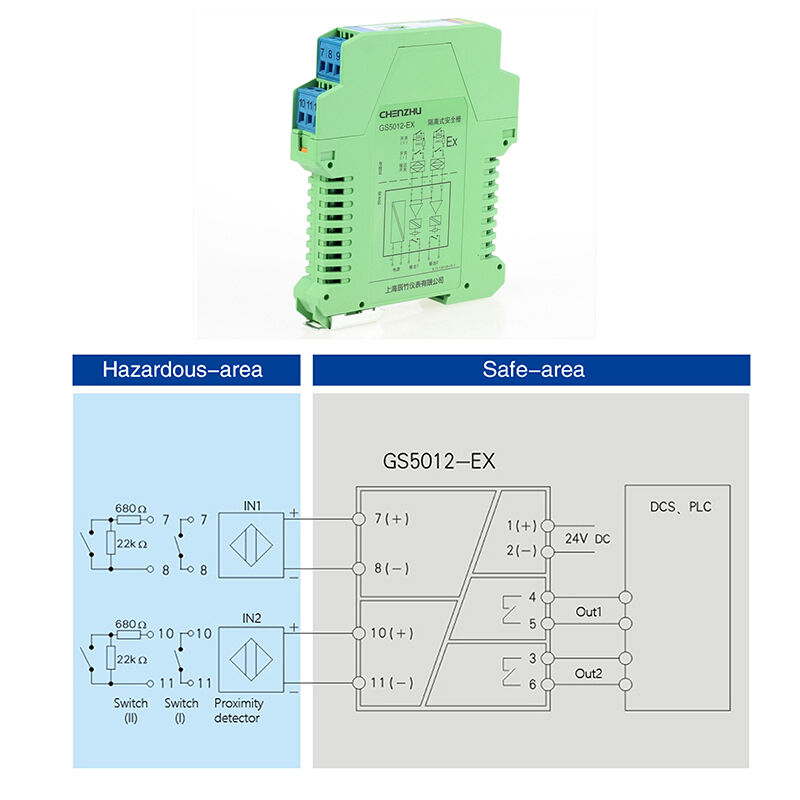

Relay output isolated barrier designed to transfer digital signals (switch or NAMUR proximity detectors) from hazardous areas to safe areas. Particularly suitable for explosion-proof elevators, security doors, and other explosion-proof equipment safety switch signal monitoring and processing. The product requires independent power supply with three-way isolation between power supply, input, and output.
| Parameter | GS5011-EX | GS5012-EX | GS5111-EX |
|---|---|---|---|
| Number of channels | 1 in, 2 out | 2 in, 2 out | 1 in, 1 out |
| Response time | ≤10ms | ||
| Input signal | Dry contact; NAMUR type proximity switch | ||
| Open-circuit voltage | ≤28V | ≤28V | ≤28V |
| Distribution voltage | Voltage at 20mA: ≥15.5V | Voltage at 20mA: ≥15.5V | Voltage at 20mA: ≥15.5V |
| Normal operating current | ≤25mA | ≤25mA | ≤25mA |
| Output signal | 250V AC, 2A or 30V DC, 2A | ||
| Current output load resistor | RL≤300Ω (550Ω optional) | RL≤300Ω (550Ω optional) | RL≤300Ω (550Ω optional) |
| Voltage output load resistor | RL 330 kΩ or higher | RL 330 kΩ or higher | RL 330 kΩ or higher |
| Supply voltage (Ue) | 20-35V DC | 20-35V DC | 20-35V DC |
| Power protection | Reverse power supply protection | Reverse power supply protection | Reverse power supply protection |
| Current consumption | ≤75mA (when powered by 24V and with 20mA output) | ≤75mA (when powered by 24V and with 20mA output) | ≤75mA (when powered by 24V and with 20mA output) |
| Power supply mode | Independent power supply | Independent power supply | Independent power supply |
| Power connection method | Terminal power supply | Terminal power supply | Terminal power supply |
| Material | PA | PA | PA |
| Protection grade | IP20 | IP20 | IP20 |
