Place of Origin:
Shanghai, China
Brand Name:
chenzhu
Model Number:

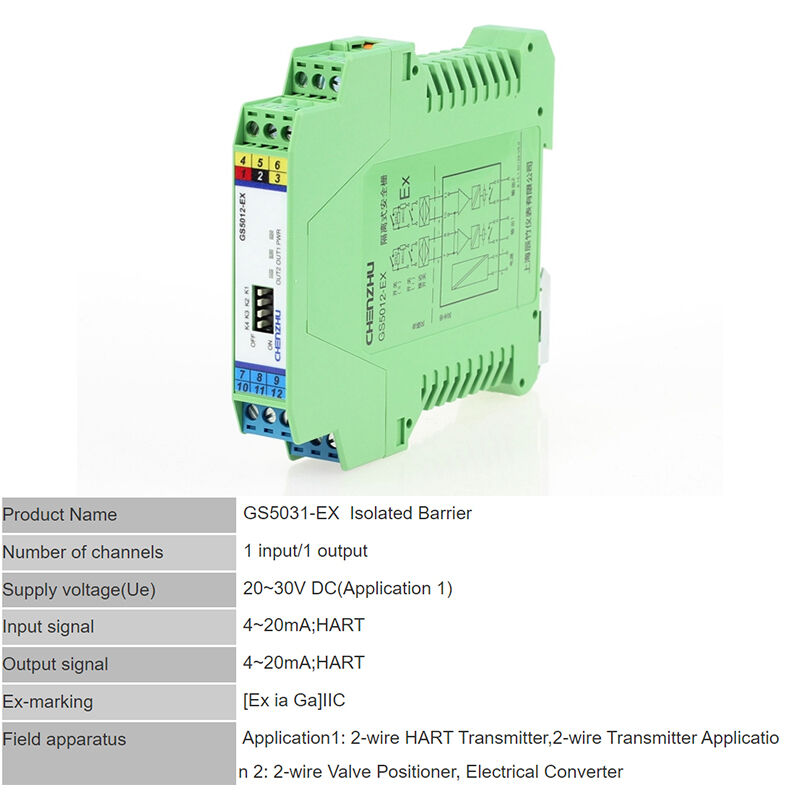

GS5031-EX

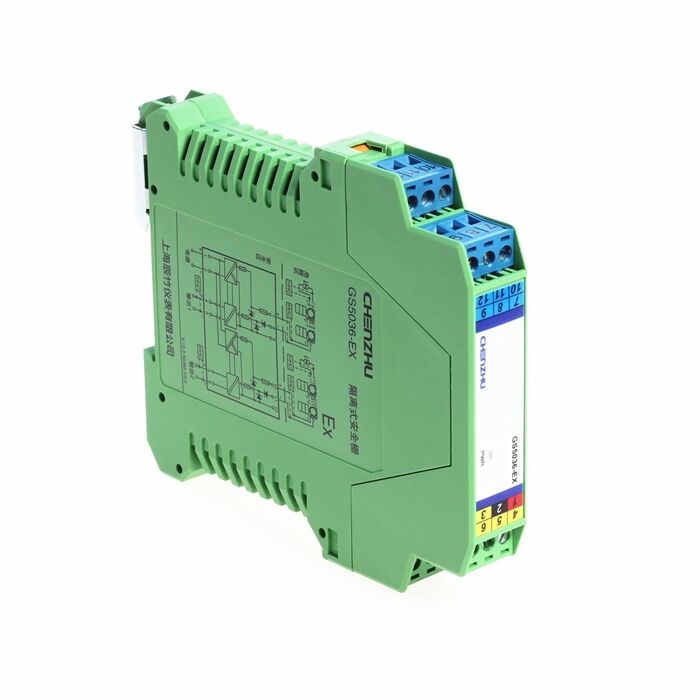

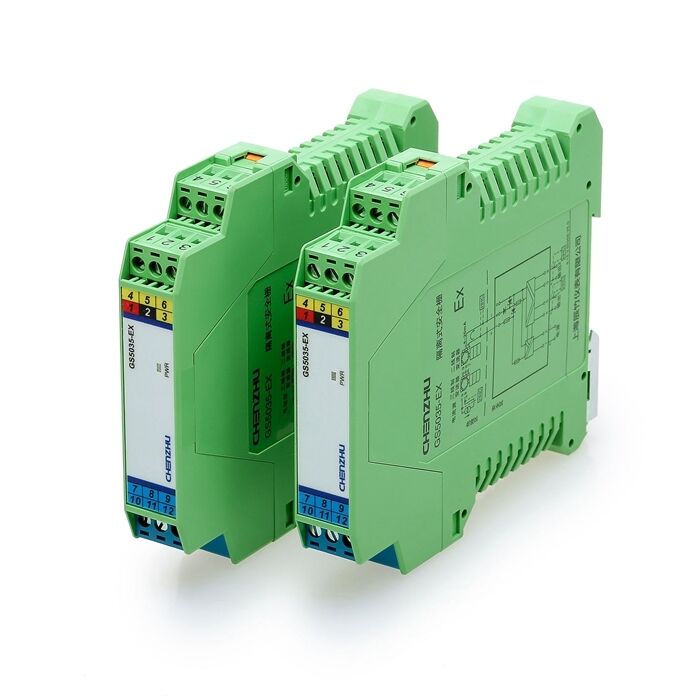

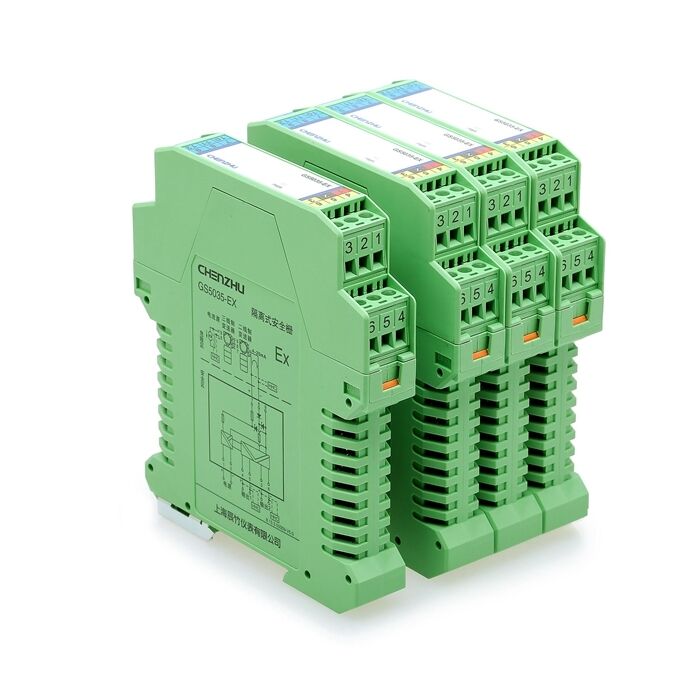

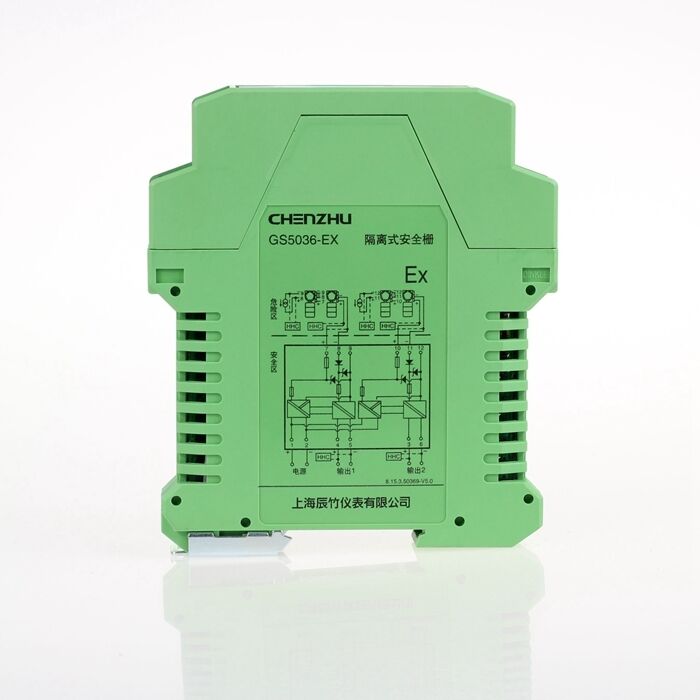

Technical Specifications| Specification | GS5035-EX | GS5036-EX | GS5045-EX |
|---|---|---|---|
| Number of channels | 1 in, 2 out | 2 in, 2 out | 1 in, 1 out |
| Response time | 2ms reaches 90% of final value | 2ms reaches 90% of final value | 2ms reaches 90% of final value |
| Input signal | 0-20mA; 4-20mA; HART digital signal | 0-20mA; 4-20mA; HART digital signal | 0-20mA; 4-20mA; HART digital signal |
| Open-circuit voltage | ≤28V | ≤28V | ≤28V |
| Distribution voltage | Voltage at 20mA: ≥15.5V | Voltage at 20mA: ≥15.5V | Voltage at 20mA: ≥15.5V |
| Normal operating current | ≤25mA | ≤25mA | ≤25mA |
| Output signal | 0-20mA; 4-20mA; HART digital signal; 0-5V; 1-5V | 0-20mA; 4-20mA; HART digital signal; 0-5V; 1-5V | 0-20mA; 4-20mA; HART digital signal; 0-5V; 1-5V |
| Current output load resistor | RL≤300Ω (550Ω optional) | RL≤300Ω (550Ω optional) | RL≤300Ω (550Ω optional) |
| Voltage output load resistor | RL 330 kΩ or higher | RL 330 kΩ or higher | RL 330 kΩ or higher |
| Supply voltage (Ue) | 20-35V DC | 20-35V DC | 20-35V DC |
| Power protection | Reverse power supply protection | Reverse power supply protection | Reverse power supply protection |
| Current consumption | ≤75mA (at 24V with 20mA output) | ≤75mA (at 24V with 20mA output) | ≤75mA (at 24V with 20mA output) |
| Power supply mode | Independent power supply | Independent power supply | Independent power supply |
| Power connection method | Terminal power supply | Terminal power supply | Terminal power supply |
| Material | PA | PA | PA |
| Protection grade | IP20 | IP20 | IP20 |
