New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics.

New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics.

MID-360 lidar sensor for robotics

original electronic components lidar

low speed robotics radar sensor

Place of Origin:

shenzhen

Brand Name:

livox

Model Number:

MID360

Chat Now
Request A Quote
New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics.
Product Details
Packaging Type:
Box Pack
Application:
Robots, Driverless Vehicles, Unmanned Aircraft
Series:
MID-360
Mounting Type:
Thread Fixation
Description:
Laser Detection Rangefinder
Manufacturing Date Code:
2025
Frame Rate:
10 HZ
Resolution:
0.2mm
Voltage - Supply:
DC 9-27v
Sensor Type:
Lidar
Pixel Size:
905 Nm
Field Angle:
360°
Product Name:
Radar Sensor
Working Temperature:
-20...55℃
Highlight:

MID-360 lidar sensor for robotics

,

original electronic components lidar

,

low speed robotics radar sensor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
RELATED PRODUCTS
Good price Mid-360 Radar Sensor for Image & Camera Sensing Applications online

Mid-360 Radar Sensor for Image & Camera Sensing Applications

Chat Now
Good price Livox Avia Image & Camera Sensors Laser Detection Rangefinder online

Livox Avia Image & Camera Sensors Laser Detection Rangefinder

Chat Now
Good price LS682-DA-EN/F2 High-Performance Image & Camera Sensors online

LS682-DA-EN/F2 High-Performance Image & Camera Sensors

Chat Now
CONTACT US
86--18149042799
xianbairui@foxmail.com
Chat Now
Product Description

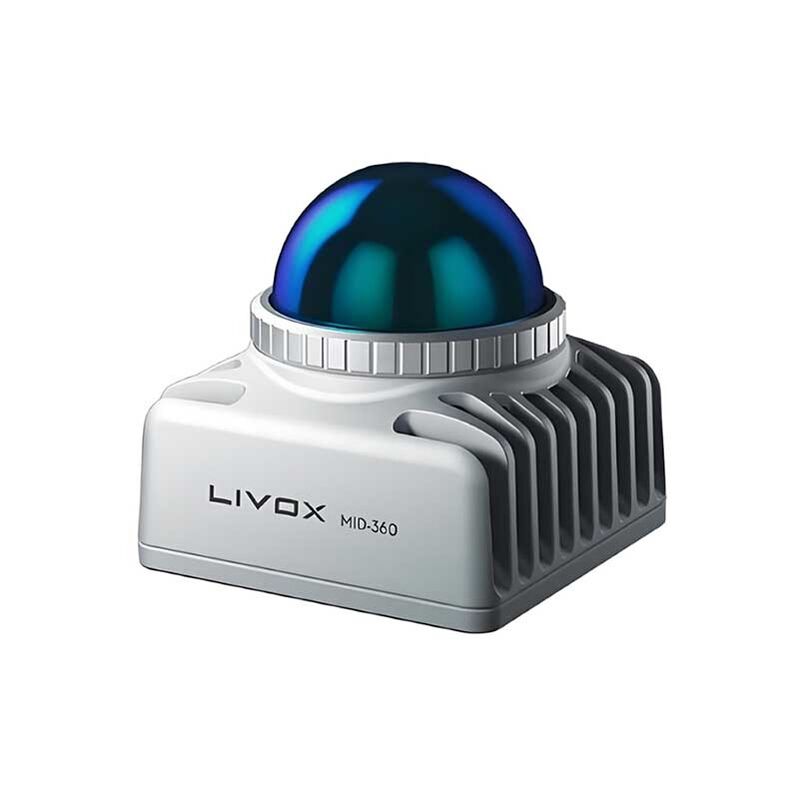

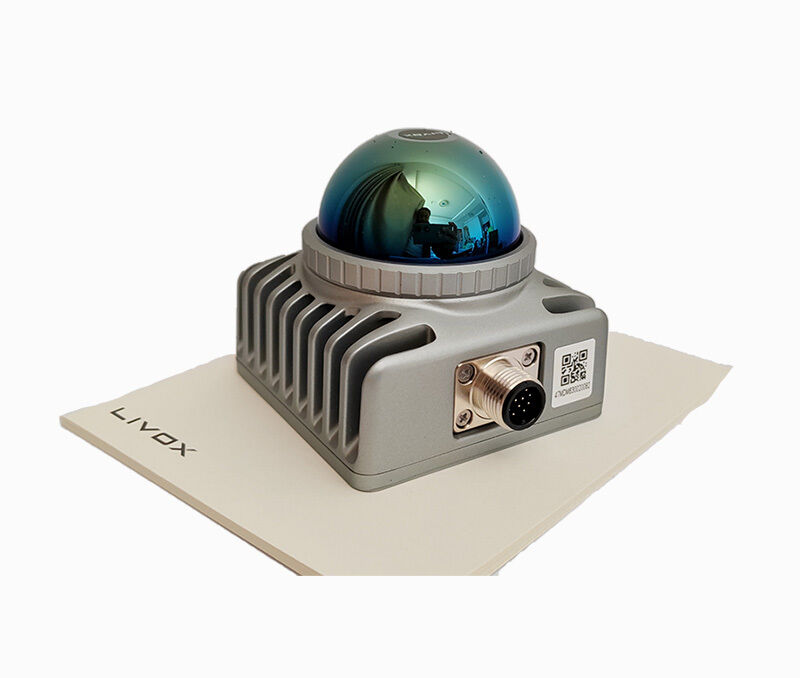

MID-360 LiDAR Sensor for Low Speed Robotics
New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 0 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 1
Key Features

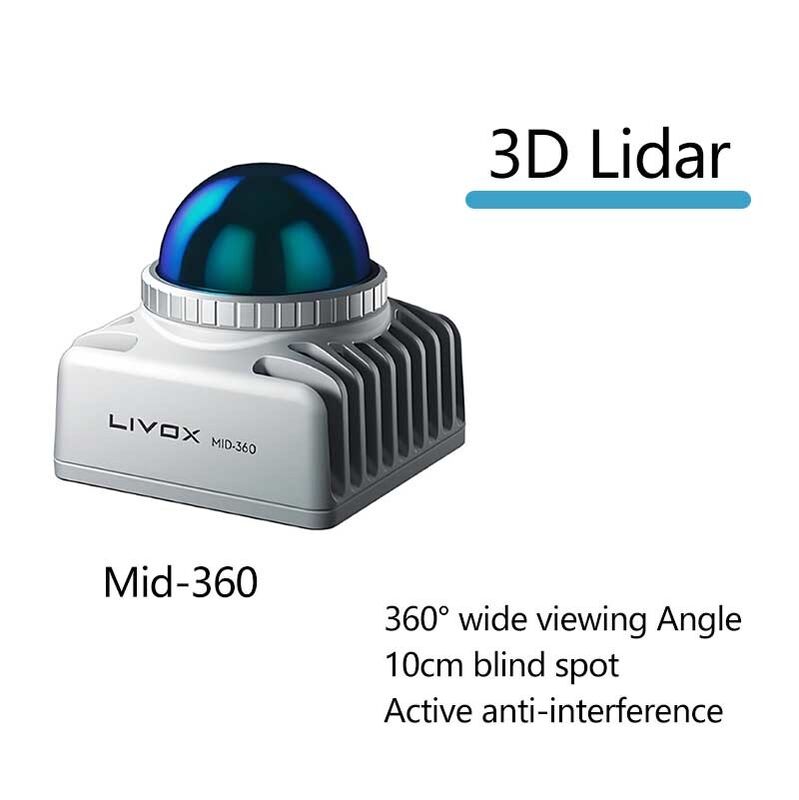

  • 360° horizontal FOV with wide vertical coverage (-7° to 52°)
  • Class 1 Eye-Safe operation
  • IP67-rated for dust and water resistance
  • PTPv2 (IEEE 1588) and GPS synchronization
  • Built-in IMU (ICM-40609) for motion compensation
  • Anti-crosstalk capability in multi-LiDAR environments
New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 2 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 3 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 4 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 5 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 6 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 7
Technical Specifications
Parameter Value
Model MID-360
Laser Wavelength 905 nm
Eye Safety Class Class 1 (IEC 60825-1:2014) Eye-Safe
Range (@ 100 klx) 40 m @ 10% reflectivity
70 m @ 80% reflectivity
Near Blind Zone 0.1 m
FOV (Field of View) Horizontal: 360°
Vertical: -7° to 52°
Ranging Random Error (1σ) ≤ 2 cm (@ 10 m)
≤ 3 cm (@ 0.2 m)
Angular Random Error (1 σ) < 0.15°
Point Cloud Output 200,000 points/second (configurable first echo)
Point Cloud Frame Rate 10 Hz (typical)
Data Interface 100 BASE-TX Ethernet
Data Synchronization IEEE 1588-2008 (PTPv2), GPS
Anti-Crosstalk Supported
False Alarm Rate (@ 100 klx) < 0.01%
IMU Built-in IMU Model: ICM-40609
Operating Temperature -20°C to 55°C
Ingress Protection IP67
Power Consumption 6.5 W
Supply Voltage 9-27 V DC
Dimensions 65 × 65 × 60 mm
Weight 265 g (0.265 kg)
Packaging & Delivery
Individual Package
1 piece per package. For orders of 50 pieces or more, custom packaging specifications and colors are available upon request.
New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 8
Carton Packaging
1 piece per carton. Carton dimensions: 1000×1000×800mm. Weight: 1kg
New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 9 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 10 New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 11
About Bailui Electric Technology Co., Ltd.
Established in January 2013, Bailui Electric Technology Co., Ltd. specializes in sensor product R&D, design, production, and trade. With over ten years of technical expertise, we follow a technology-first and service-first business philosophy to provide comprehensive application solutions for industries including pharmaceuticals, aerospace, chemicals, and electronics. Our company is committed to: "reasonable pricing, short production cycles, and satisfactory after-sales service." We welcome partnerships with customers for mutual development and benefit.
New Original Electronic Components Sensor Lidar MID-360 for Low Speed Robotics. 12
Frequently Asked Questions
What's your pricing strategy?
As a factory-direct supplier, we offer high-quality products at competitive prices.
What's the Minimum Order Quantity (MOQ)?
The MOQ is one piece. Pricing is quantity-based, with discounts available for larger orders.
What payment methods do you accept?
We accept TT and L/C. For sample orders, Western Union, Moneygram, and Aliexpress are available.
What's the delivery time?
7-10 days after payment confirmation.
How do I place an order?
Provide us with the required specifications and quantity, or describe your application so our technicians can recommend the appropriate model. After payment processing, we will arrange production and shipment promptly.
