In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics.

In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics.

MIN360 radar sensor for robotics

3D radar sensor MID-360

low speed robotics radar sensor

Place of Origin:

shenzhen

Brand Name:

livox

Model Number:

MID360

Chat Now
Request A Quote
In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics.
Product Details
Packaging Type:
Box Pack
Application:
Robots, Driverless Vehicles, Unmanned Aircraft
Series:
MID-360
Mounting Type:
Thread Fixation
Description:
Laser Detection Rangefinder
Frame Rate:
10 HZ
Resolution:
0.1mm
Voltage - Supply:
DC 9-27v
Sensor Type:
CMOS
Field Angle:
360°
Product Name:
Radar Sensor
Working Temperature:
-20...55℃
Highlight:

MIN360 radar sensor for robotics

,

3D radar sensor MID-360

,

low speed robotics radar sensor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
80~680＄
Payment Terms
T/T
Related Products
Good price 360° Field of View IP67-Rated Radar Imaging Sensor with 10 Hz Frame Rate for High-Precision Vision Systems online

360° Field of View IP67-Rated Radar Imaging Sensor with 10 Hz Frame Rate for High-Precision Vision Systems

Chat Now
Good price Advanced 360° Radar Imaging Sensor for High-Precision Camera & Vision Systems online

Advanced 360° Radar Imaging Sensor for High-Precision Camera & Vision Systems

Chat Now
Good price SZRMCC Livox Mid-360 Cable M12 Pin Female Aviation Plug 3 1 Splitter Data Sensor Cable for DJI Lidar Livox Mid-360 Mid-70 Avia online

SZRMCC Livox Mid-360 Cable M12 Pin Female Aviation Plug 3 1 Splitter Data Sensor Cable for DJI Lidar Livox Mid-360 Mid-70 Avia

Chat Now
Good price Livox Mid-360 LiDAR Sensors for Robot and Automation 3D Mapping Obstacle Detection Laser Rangefinder online

Livox Mid-360 LiDAR Sensors for Robot and Automation 3D Mapping Obstacle Detection Laser Rangefinder

Chat Now
Contact Us
86--18149042799
xianbairui@foxmail.com
Chat Now
Product Description

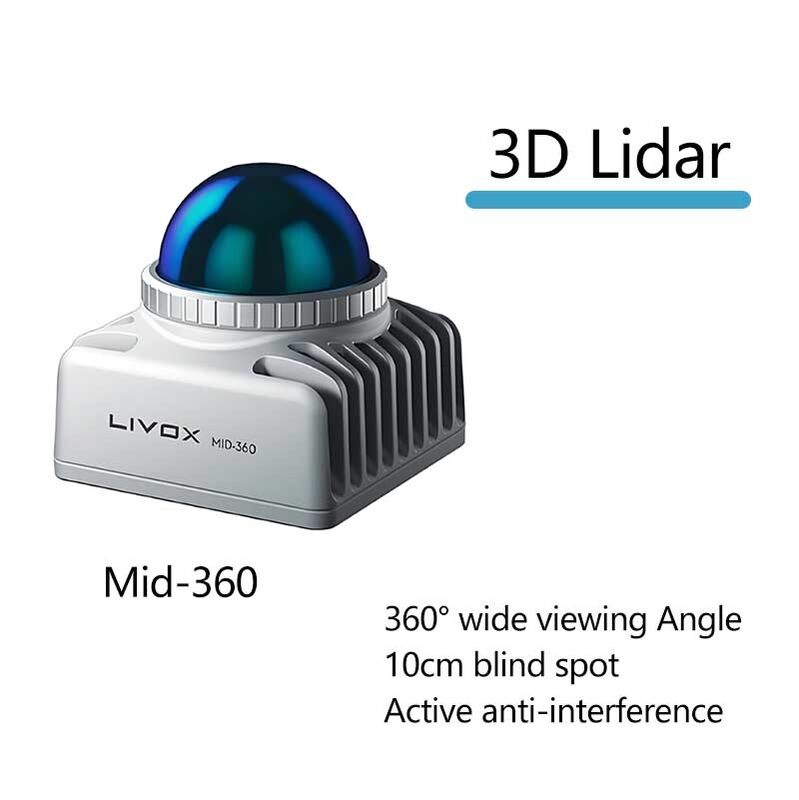

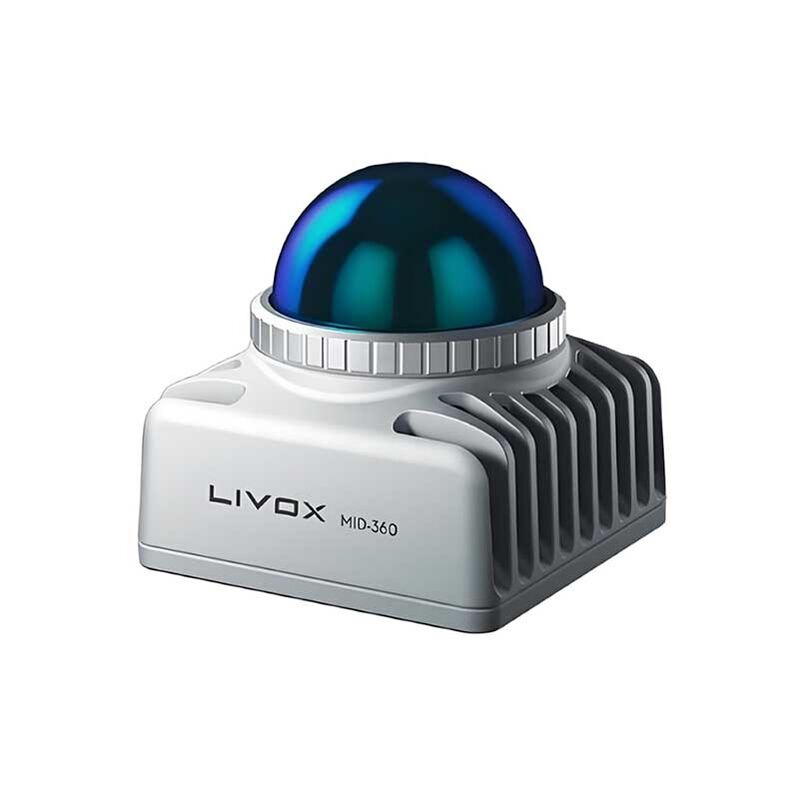

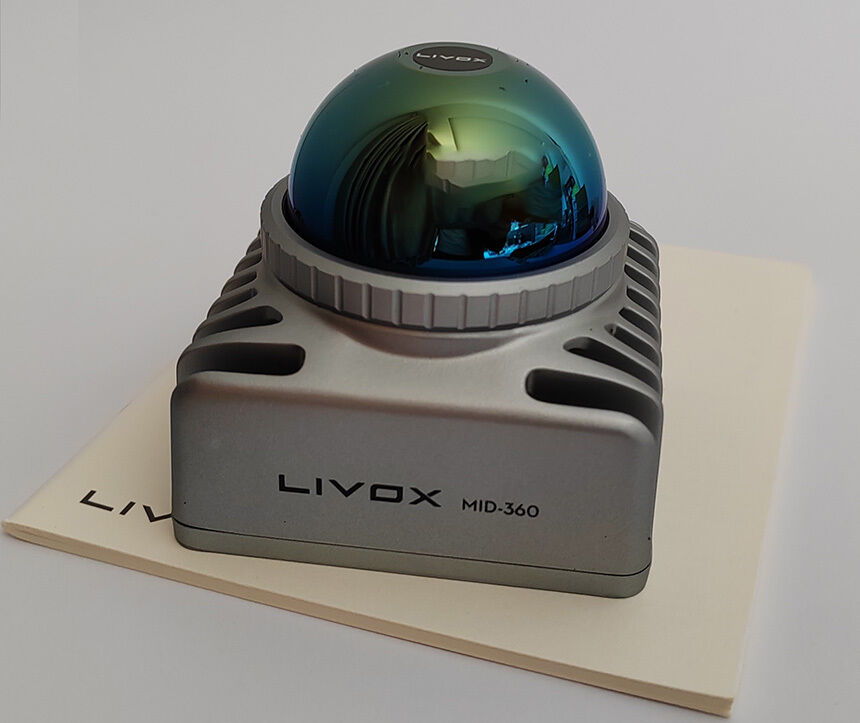

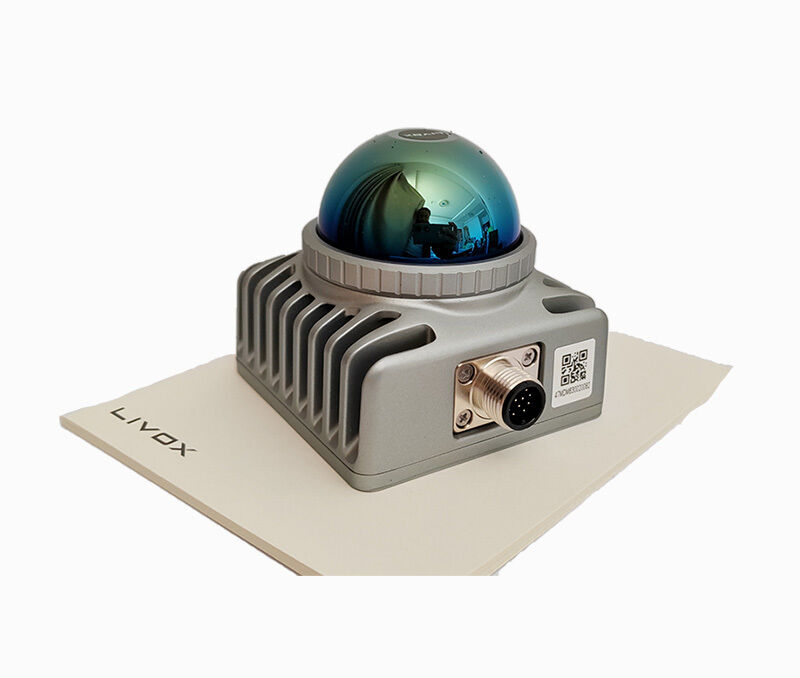

In-stock MIN360 Radar Sensor 3D Sensor MID-360 For Low Speed Robotics
In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 0 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 1 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 2 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 3 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 4 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 5 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 6 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 7
Key Features
  • 360° horizontal FOV with wide vertical coverage (-7° to 52°)
  • Class 1 Eye-Safe operation
  • IP67-rated for dust/water resistance
  • PTPv2 (IEEE 1588) and GPS synchronization
  • Built-in IMU (ICM-40609) for motion compensation
  • Anti-crosstalk capability in multi-LiDAR environments
Technical Specifications
Parameter Value
Model MID-360
Laser Wavelength 905 nm
Eye Safety Class Class 1 (IEC 60825-1:2014) Eye-Safe
Range (@ 100 klx) 40 m @ 10% reflectivity
70 m @ 80% reflectivity
Near Blind Zone 0.1 m
FOV (Field of View) Horizontal: 360°
Vertical: -7° to 52°
Ranging Random Error (1σ) ≤ 2 cm (@ 10 m)
≤ 3 cm (@ 0.2 m)
Angular Random Error (1 σ) < 0.15°
Point Cloud Output 200,000 points/second (configurable first echo)
Point Cloud Frame Rate 10 Hz (typical)
Data Interface 100 BASE-TX Ethernet
Data Synchronization IEEE 1588-2008 (PTPv2), GPS
Anti-Crosstalk Supported
False Alarm Rate (@ 100 klx) < 0.01%
IMU Built-in IMU Model: ICM-40609
Operating Temperature -20°C to 55°C
Ingress Protection IP67
Power Consumption 6.5 W
Supply Voltage 9-27 V DC
Dimensions 65 × 65 × 60 mm
Weight 265 g (0.265 kg)
Packing & Delivery
Separate Package
1 pcs packing
50pcs can be provided with free packaging specifications and colors according to user requirements.
Carton Packing
1pcs package size: 1000×1000×800mm. Weight: 1kg
In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 8 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 9 In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 10
About Bailui Electric Technology Co., Ltd.
Bailui Electric Technology Co., Ltd. was established in January 2013. We are a professional company focused on sensor product research and development, design, production, and trade. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, providing customers with complete mature application solutions. The industries we serve include pharmaceutical, aerospace, chemical, electronics and other sectors.
In foreign trade, we have rich experience in dealing with all aspects of international business. The company promises: "reasonable price, short production time, satisfactory after-sales service". We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.
In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics. 11
Frequently Asked Questions
What's your idea about your offer?
We have our own factory and offer high quality products with competitive pricing.
What's the MOQ?
The minimum order quantity is one piece, but our pricing is quantity-based - larger orders receive better pricing.
What type of payment do you have available?
We accept TT and L/C. For sample orders, Western Union, Moneygram and Aliexpress are available.
What's the delivery time?
7-10 days after we receive payment.
How to make an order?
Tell us the size and quantity you need, or describe your application so our technician can recommend the appropriate size. Then pay to our bank account, and we will arrange production and ship as soon as possible.
