Product Description

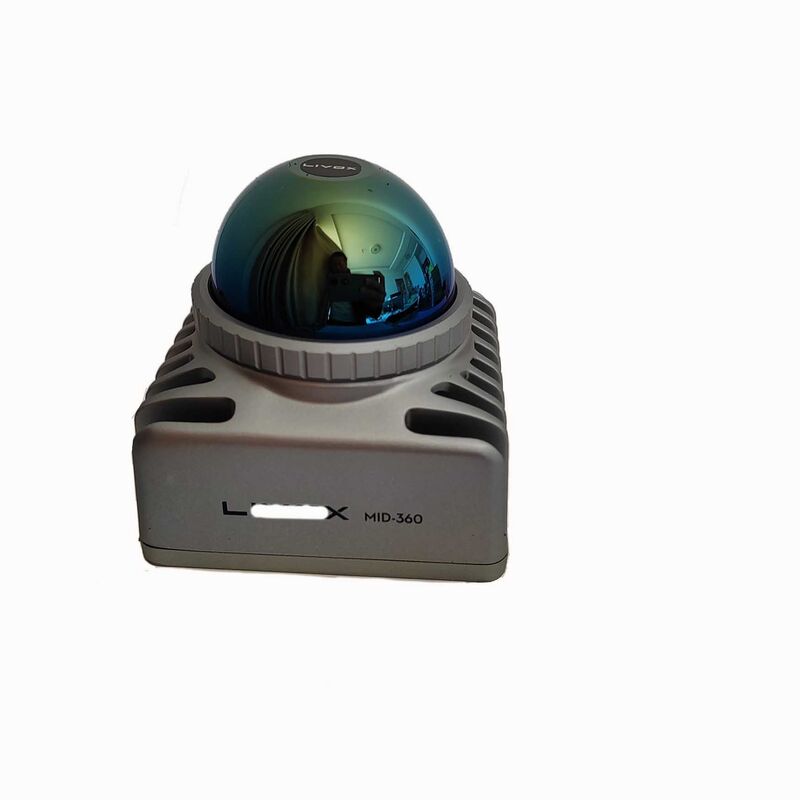

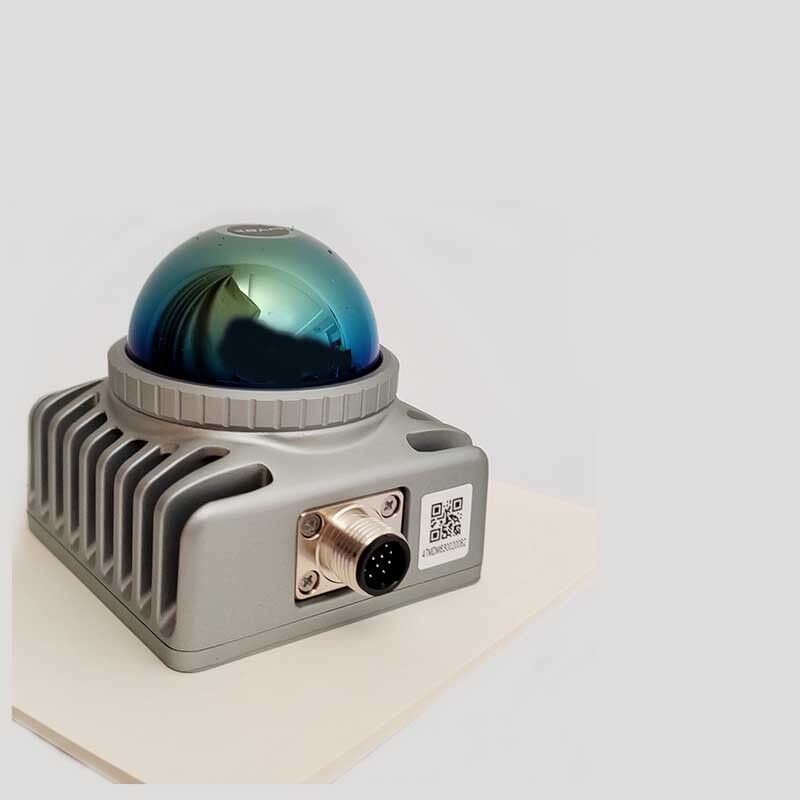

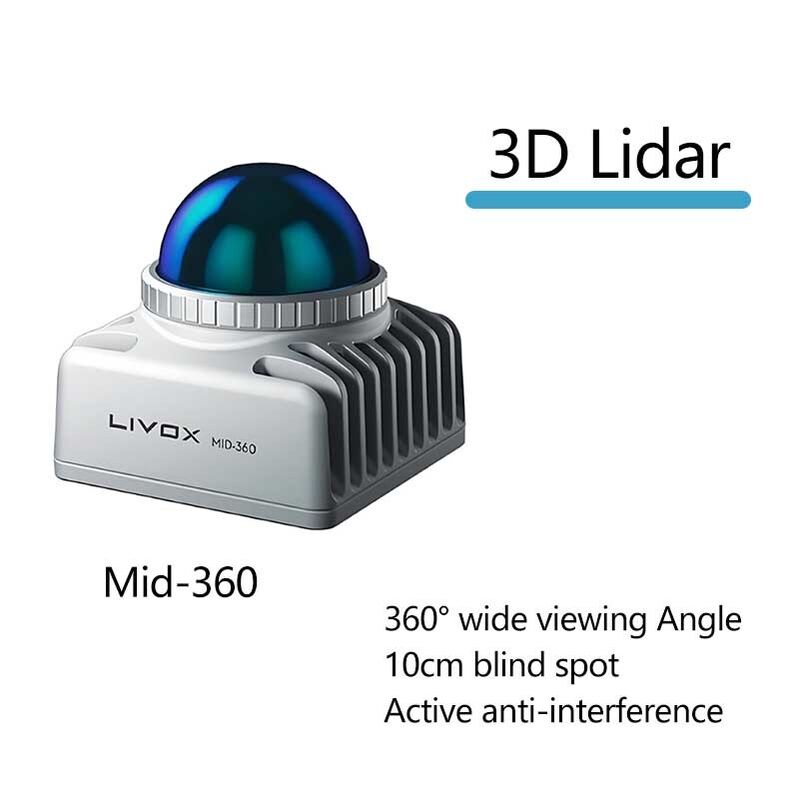

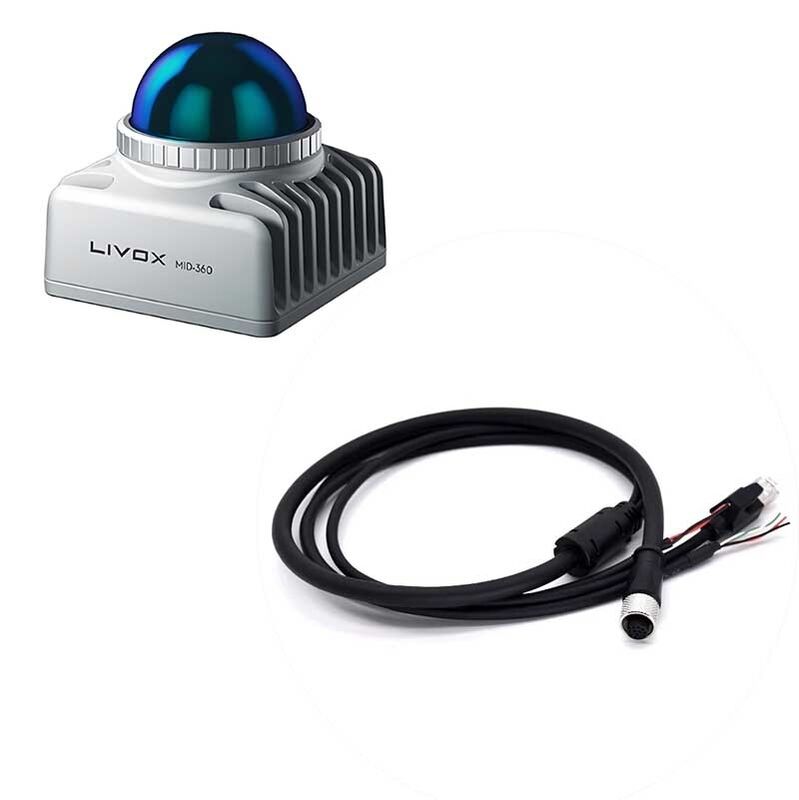

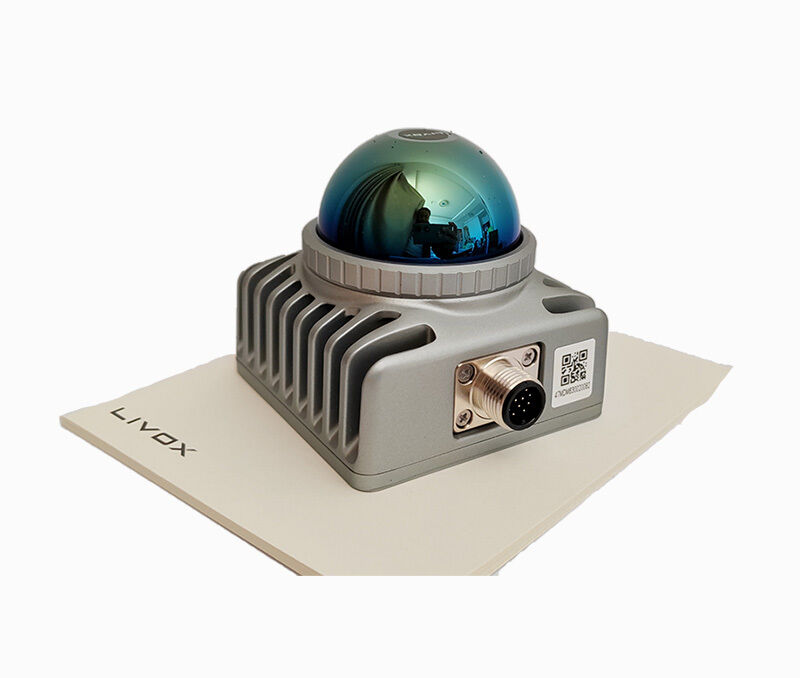

Livox Mid-360 LiDAR Sensors for Robotics and Automation

Advanced 3D mapping, obstacle detection, and laser rangefinder solutions for industrial applications.

Key Features

360° horizontal FOV with wide vertical coverage (-7° to 52°)
Class 1 Eye-Safe operation compliant with IEC 60825-1:2014
IP67-rated for dust and water resistance
PTPv2 (IEEE 1588) and GPS synchronization
Built-in IMU (ICM-40609) for motion compensation
Anti-crosstalk capability in multi-LiDAR environments

Technical Specifications

Parameter	Value
Model	MID-360
Laser Wavelength	905 nm
Eye Safety Class	Class 1 (IEC 60825-1:2014) Eye-Safe
Range (@ 100 klx)	40 m @ 10% reflectivity 70 m @ 80% reflectivity
Near Blind Zone	0.1 m
FOV (Field of View)	Horizontal: 360° Vertical: -7° to 52°
Ranging Random Error (1σ)	≤ 2 cm (@ 10 m) ≤ 3 cm (@ 0.2 m)
Angular Random Error (1 σ)	< 0.15°
Point Cloud Output	200,000 points/second (configurable first echo)
Point Cloud Frame Rate	10 Hz (typical)
Data Interface	100 BASE-TX Ethernet
Data Synchronization	IEEE 1588-2008 (PTPv2), GPS
Anti-Crosstalk	Supported
False Alarm Rate (@ 100 klx)	< 0.01%
IMU	Built-in IMU Model: ICM-40609
Operating Temperature	-20°C to 55°C
Ingress Protection	IP67
Power Consumption	6.5 W
Supply Voltage	9-27 V DC
Dimensions	65 × 65 × 60 mm
Weight	265 g (0.265 kg)
