80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge

80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge

80GHz radar liquid level gauge

RS485 radar level instrument

small lens antenna level meter

Place of Origin:

Shaanxi, China

Brand Name:

BAIRUI

Model Number:

L40

Chat Now
Request A Quote
Product Details
Customized Support:
OEM, ODM
Material:
Plastic
Warranty:
2 Years
Grade:
Industrial
Highlight:

80GHz radar liquid level gauge

,

RS485 radar level instrument

,

small lens antenna level meter

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
Negotiable
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Product Description
80GHz High Quality Radar Level Measuring Instruments
80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 0 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 1 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 2 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 3 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 4 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 5 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 6 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 7
This advanced wave radar level sensor delivers precise and reliable measurements through its highly focused radar beam technology. Ideal for diverse industrial applications including water treatment plants, pumping stations, open channel flow monitoring, buffer pools, chemical production facilities, and food processing operations.

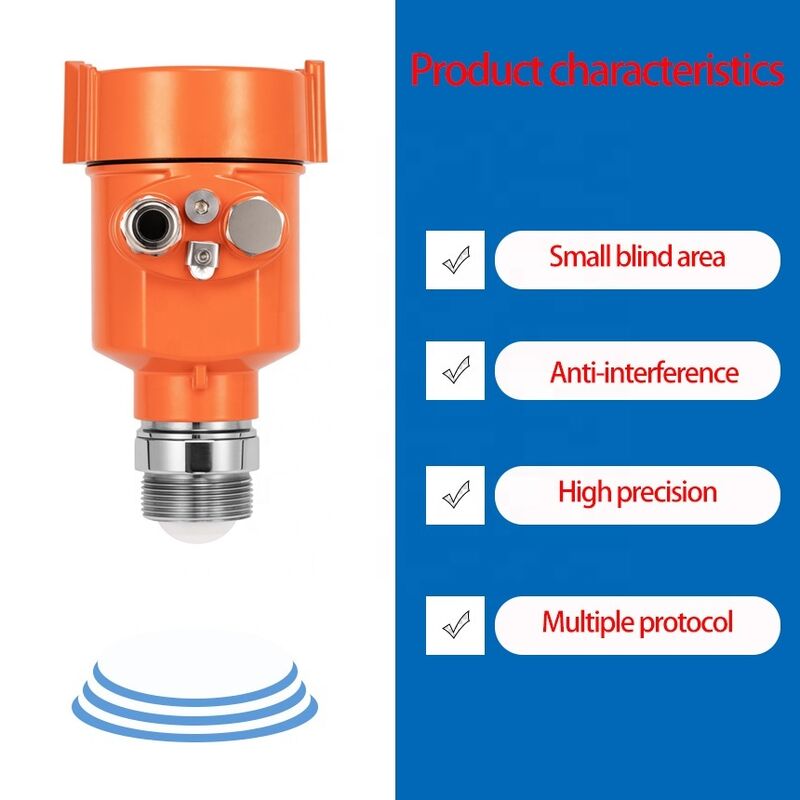

Key Features
  • Compact, robust design for easy installation directly above liquid surfaces
  • Extremely low energy consumption for cost-effective operation
  • Non-contact measurement technology prevents corrosion and scaling issues
  • Minimal maintenance requirements reduce operational costs

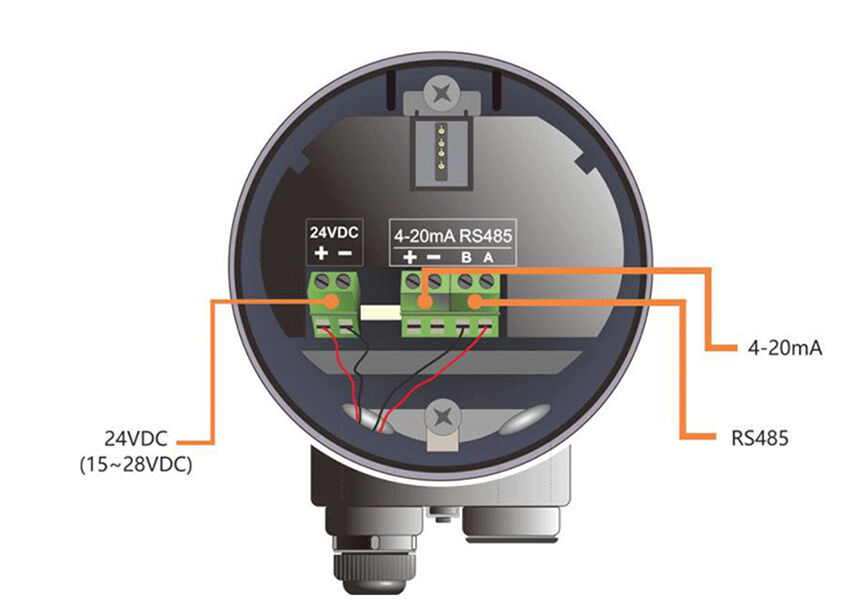

  • RS485 output with 4-20mA signal for versatile integration
Technical Specifications
Measuring Performance
Minimum Range 0.14m
Maximum Range 65m
Resolution 2mm
Azimuth Beam Width (3 dB)
Elevation Beam Width (3 dB)
Measurement Accuracy ±2mm
Operating Conditions
Operating Frequency Band 76-81 GHz
Mains Power Supply 18V-28V DC
Output 4-20mA
Enclosure Protection Fully sealed, injection molded housing rated to IP67
Operating Temperature Range -35°C to +75°C

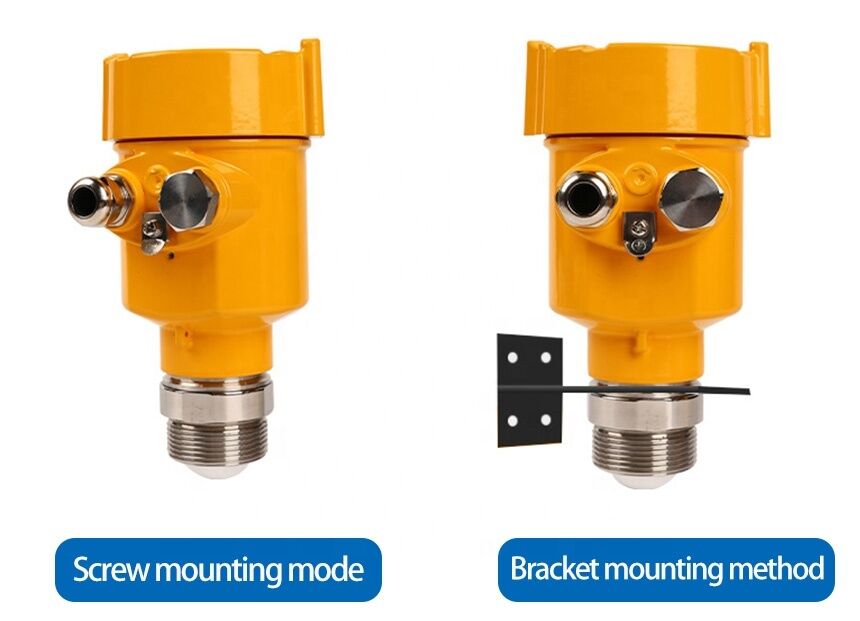

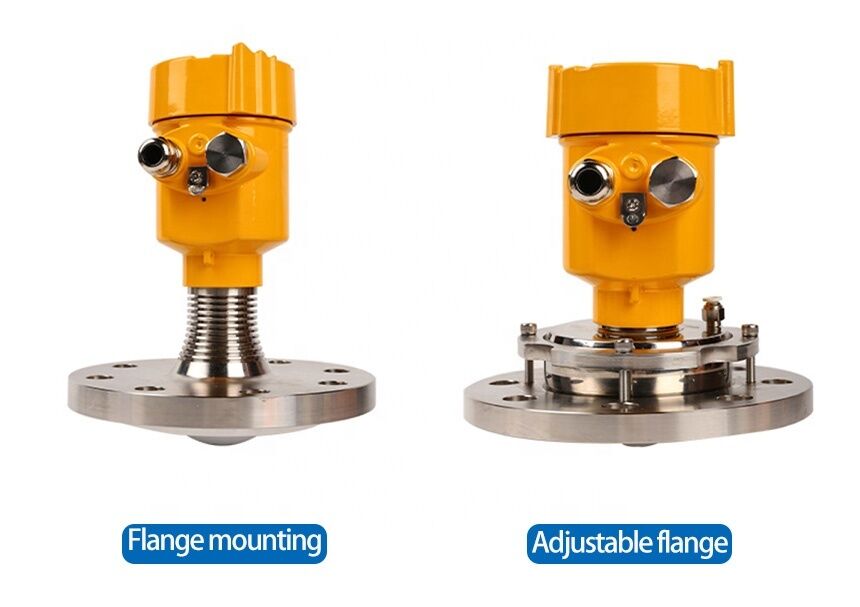

Installation Mounting bracket
Packing & Delivery
80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 8 80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 9  80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge 10
About Bailui Electric Technology Co., Ltd.
Established in January 2013, Bailui Electric Technology Co., Ltd. specializes in sensor product research, development, design, production, and trading. With over a decade of technological expertise, we adhere to a business philosophy prioritizing technology and service excellence, providing comprehensive application solutions for industries including pharmaceuticals, aerospace, chemicals, and electronics. Our international trade experience ensures smooth business transactions. We are committed to delivering reasonable pricing, short production cycles, and satisfactory after-sales service. We welcome partnerships with customers worldwide for mutual development and benefit.
