High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch

High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch

high temperature resistant water level switch

anti-static vibration tuning fork

tuning fork liquid level sensor

Place of Origin:

Guangdong, China

Brand Name:

BAIRUI

Model Number:

LS-500

Chat Now
Request A Quote
Product Details
Mounting Type:
Threaded Installation
Description:
Ultrasonic Sensor
Type:
Ultrasonic Sensor
Usage:
Liquid Level Measurement
Theory:
Vibration Occurs At The Mechanical Resonance Frequ
Output:
PNP/NPN
Amplifier Type:
Standard
Voltage - Supply:
24v DC/220V AC
Detection Distance:
5000mm
Material:
Stainless Steel
Highlight:

high temperature resistant water level switch

,

anti-static vibration tuning fork

,

tuning fork liquid level sensor

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
Negotiable
Product Description

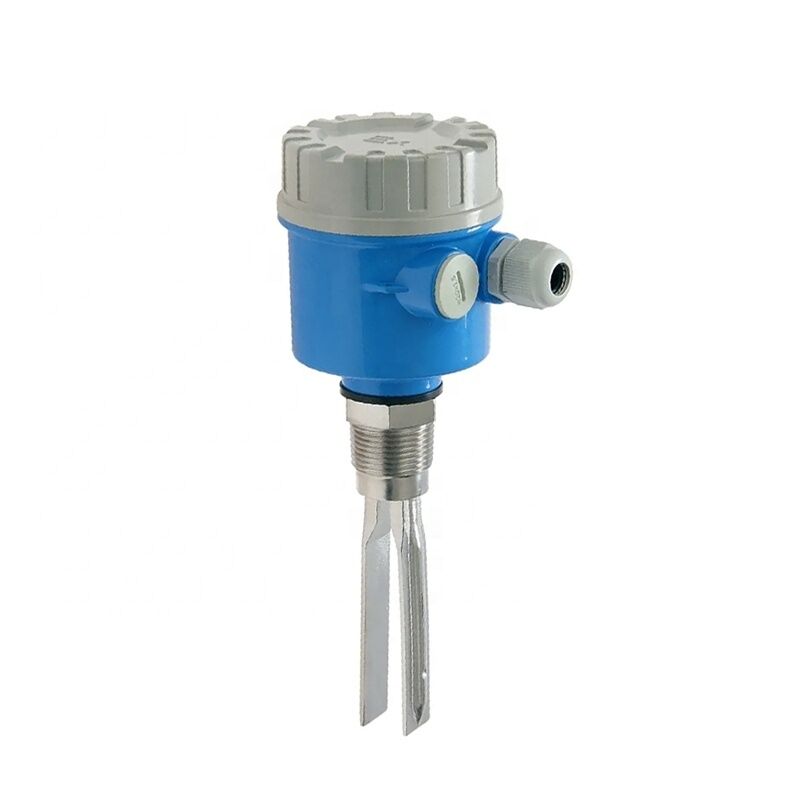

LS-500 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch
High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 0 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 1 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 2 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 3 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 4 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 5 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 6 High Temperature Resistant Anti-static Vibration Tuning Fork Water Level Switch 7
The LS-500 tuning fork level switch is a simple, reliable and efficient point-type level control device. It determines whether the liquid level exists by detecting the changes in the vibration state of the fork teeth and is widely used in pump control, alarm and protection functions in various industrial processes. When making a choice, just ensure that its material and specifications match your process medium and conditions.
Technical Specifications
Power Supply 19…60VDC 19…250VAC 50/60Hz
Switching Time In the medium 2 seconds, Empty: 3 seconds
Environment Temperature -40…+70°C
Shelf Temperature -40…+85°C
Medium Temperature -40…+150°C
Working Pressure -1…+40bar
Medium Type Powder and particle ≤10mm,density>0.1g/cm³ Liquid,Viscosity ≤10000mm²/s, density >0.7g/cm³
Process Connection M20×1.5,G1-1/2",customization
Electric Connection M12×P1.0 Connector
Shell Material SS304
Fork Material SS304/SS316
Output Relay, AC250V/4A, DC60V/4A NPN, 400mA PNP, 400mA
Power Consumption DC<3W, AC <15W
