Place of Origin:
Guangdong, China
Brand Name:
BAIRUI
Model Number:
LS-500

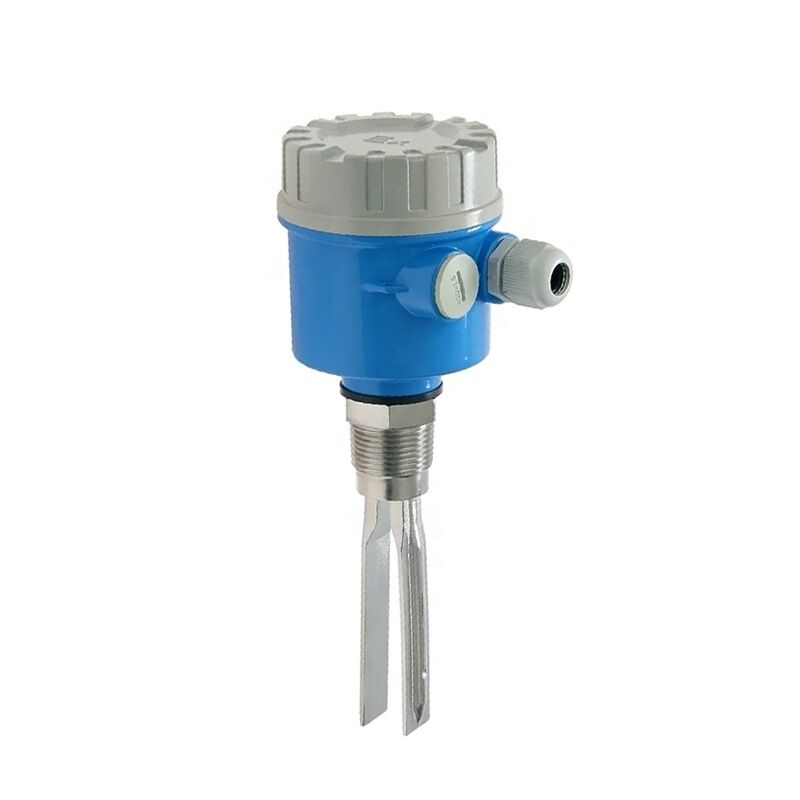

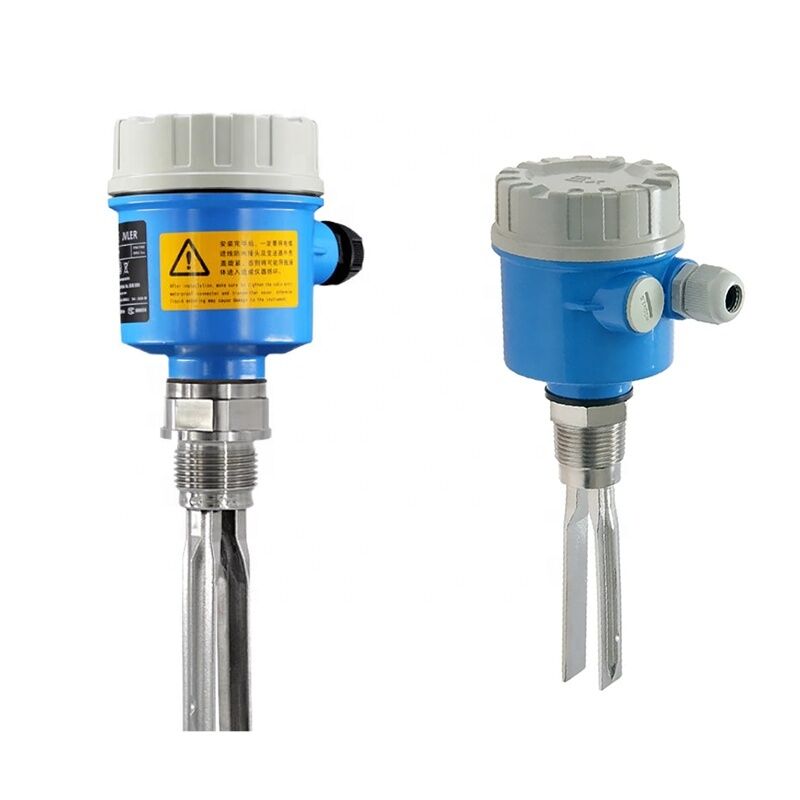

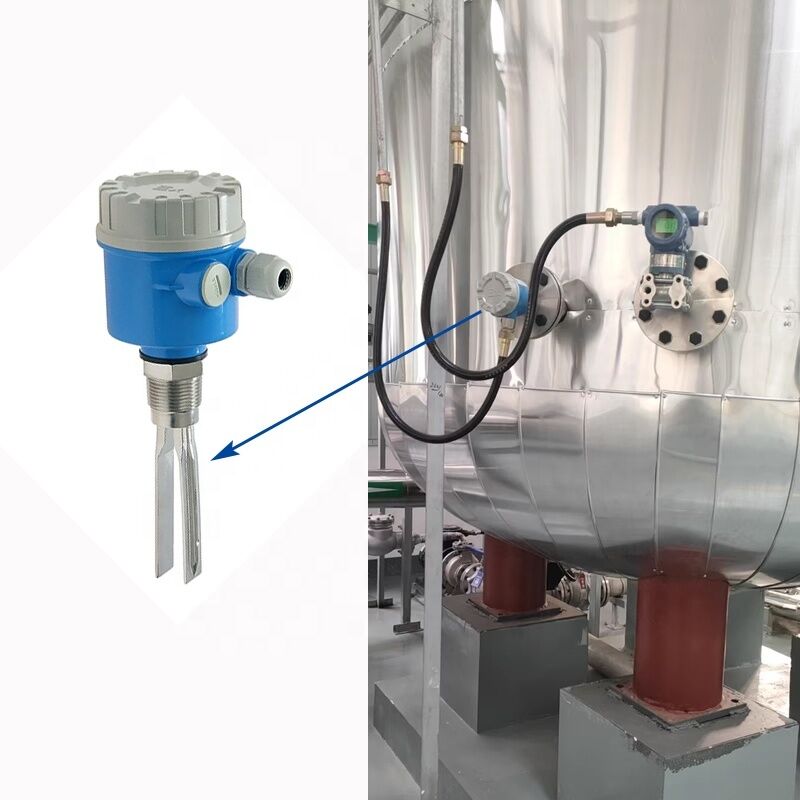

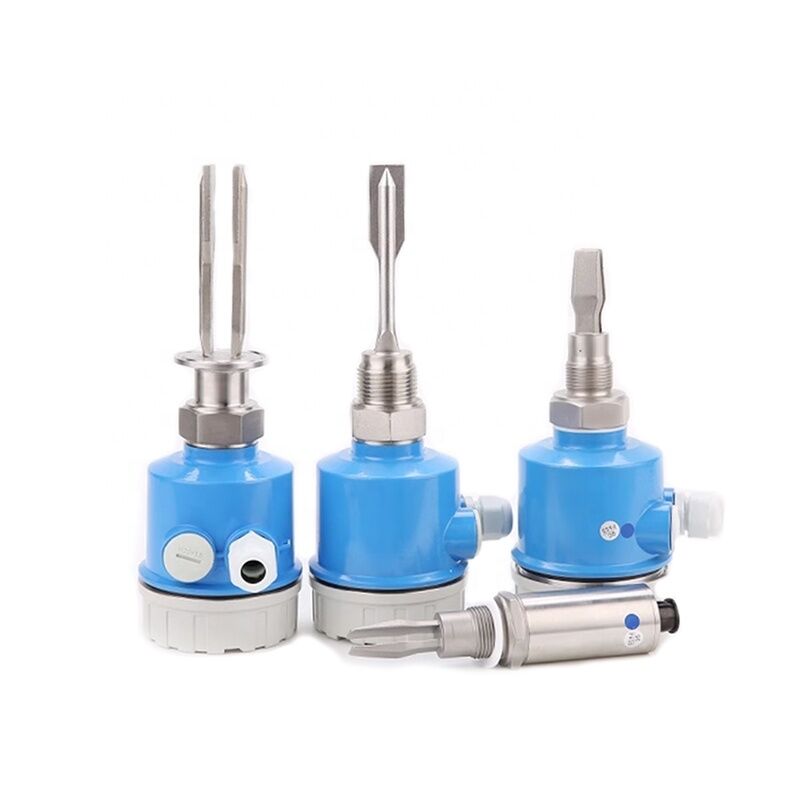

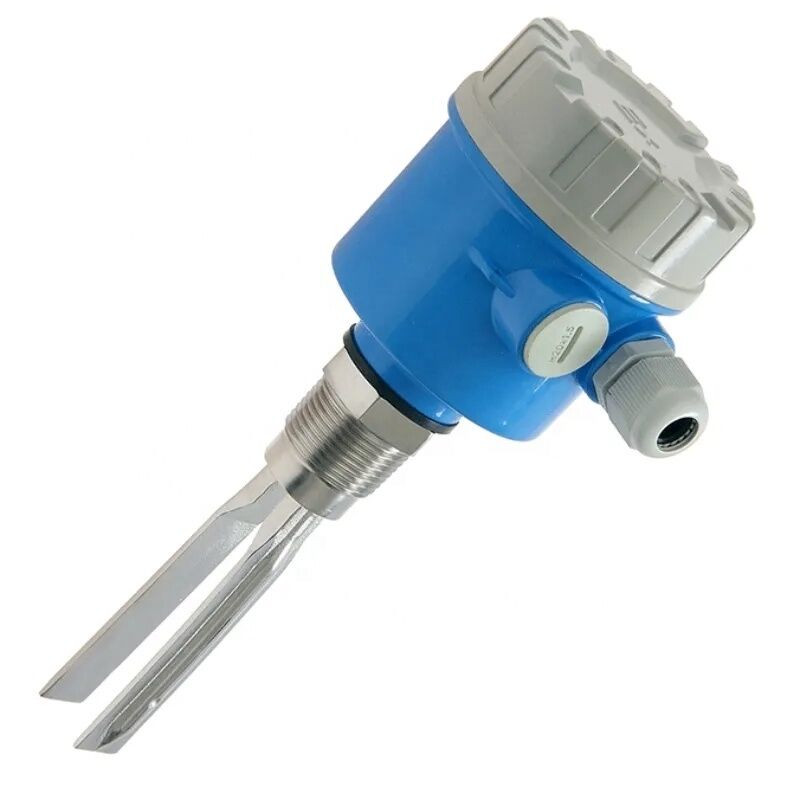

The LS-500 tuning fork level switch is a simple, reliable and efficient point-type level control device. It determines whether the liquid level exists by detecting the changes in the vibration state of the fork teeth and is widely used in pump control, alarm and protection functions in various industrial processes. When making a choice, just ensure that its material and specifications match your process medium and conditions.
| Power Supply | 19…60VDC 19…250VAC 50/60Hz |
| Switching Time | In the medium 2 seconds, Empty: 3 seconds |
| Environment Temp. | -40…+70°C |
| Shelf Temp. | -40…+85°C |
| Medium Temp. | -40…+150°C |
| Working Temp. | -1…+40bar |
| Medium Type | Powder and particle ≤10mm,density>0.1g/cm³ Liquid,Viscosity ≤10000mm2/s, density >0.7g/cm³ |
| Process Connect | M20×1.5,G1-1/2",customization |
| Electric Connect | M12×P1.0 Connector |
| Shell Material | SS304 |
| Fork Material | SS304/SS316 |
| Output | Relay, AC250V/4A, DC60V/4A NPN, 400mA PNP, 400mA |
| Power Consumption | DC<3W, AC <15W |
Bailui Electric Technology Co., Ltd. was established in January 2013. We are a professional company focused on sensor product research and development, design, production, and trade. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, to provide customers with complete mature application solutions. The industries we serve include pharmaceutical, aerospace, chemical, electronics and other sectors.
In foreign trade, we have rich experience in dealing with all aspects of international commerce. The company promises: "reasonable price, short production time, satisfactory after-sales service". We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.
