Name: APX503 Industrial Grade Compact Vibrating Fork Tuning Switch Limit Switch for Level Measurement
Brand: Xi'an Bairui Electrical Technology Co., Ltd.
SKU: LS-300
Availability: InStock

Home > Products > Liquid level analysis >

APX503 Industrial Grade Compact Vibrating Fork Tuning Switch Limit Switch for Level Measurement

industrial grade vibrating fork switch

compact limit switch for level measurement

tuning switch for liquid level analysis

Place of Origin:

Guangdong, China

Brand Name:

BAIRUI

Model Number:

LS-300

Chat Now

Request A Quote

Product Details

Mounting Type:

Threaded Installation

Description:

Ultrasonic Sensor

Type:

Ultrasonic Sensor

Usage:

Liquid Level Measurement

Theory:

Vibration Occurs At The Mechanical Resonance Frequ

Output:

PNP/NPN

Amplifier Type:

Standard

Voltage - Supply:

24v DC

Detection Distance:

1500mm

Material:

Stainless Steel

Highlight:

industrial grade vibrating fork switch

compact limit switch for level measurement

tuning switch for liquid level analysis

Payment & Shipping Terms

Minimum Order Quantity

2 pieces

Price

Negotiable

Payment Terms

L/C,D/A,D/P,T/T,Western Union

High Sensitivity Tuning Fork Level Switch Vibrator Explosion-proof Anti-corrosion Limit Vibration Level Switch Level Controller

Chat Now

Float Switch Water Level Controller tank Magnetic Sensor Float Switches

Chat Now

80GHz High Quality radar Level Measuring Instruments RS485 Output Small Lens Antenna radar Liquid Level Gauge

Chat Now

High Temperature Resistance 304 Stainless Steel Float Switch OEM ODM Hessman Connector Level Level Measuring Instruments

Chat Now

86--18149042799

xianbairui@foxmail.com

Chat Now

Product Description

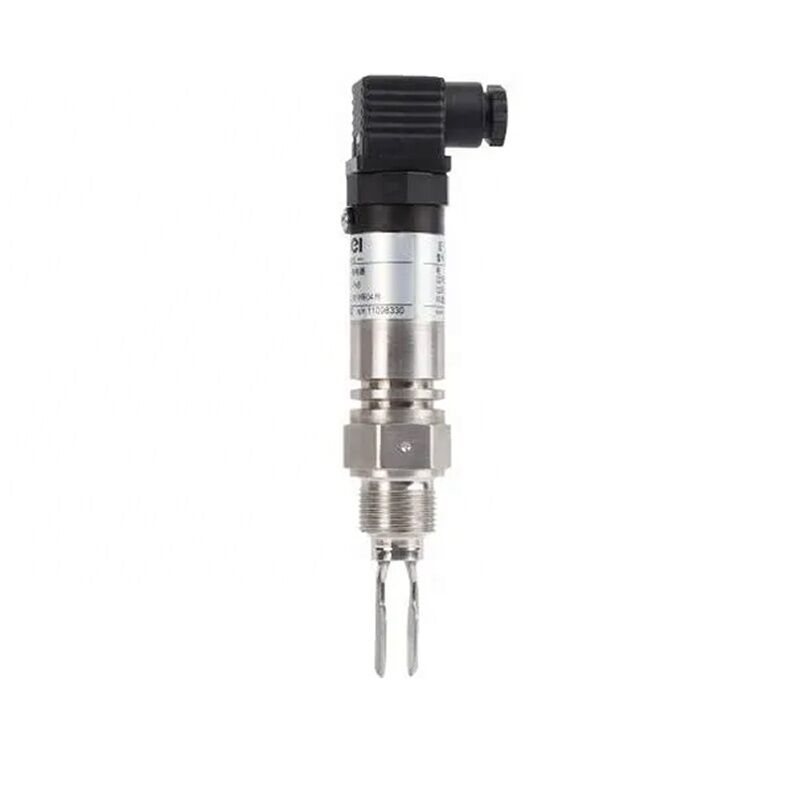

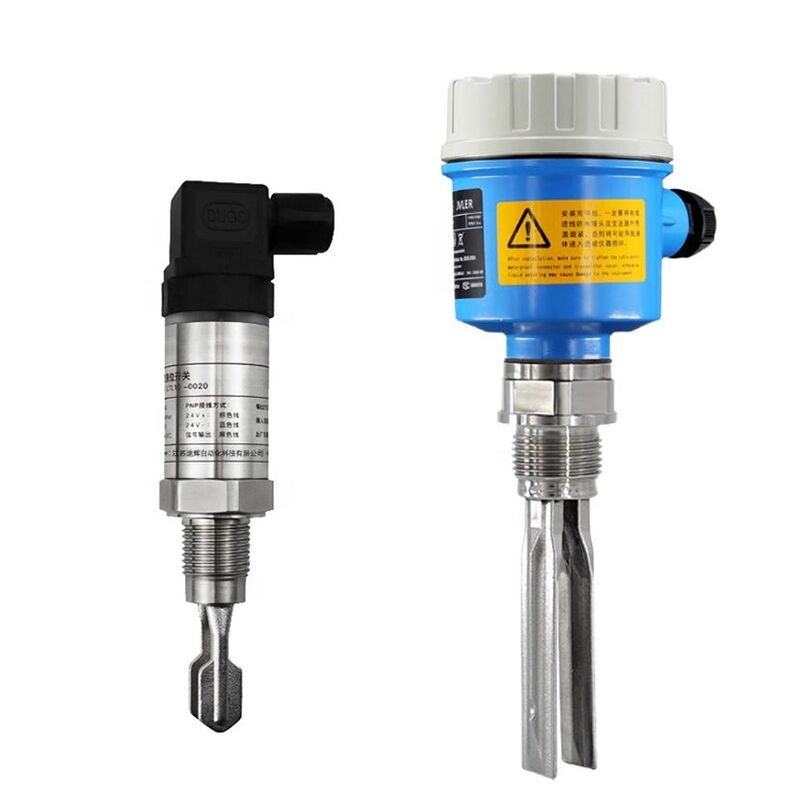

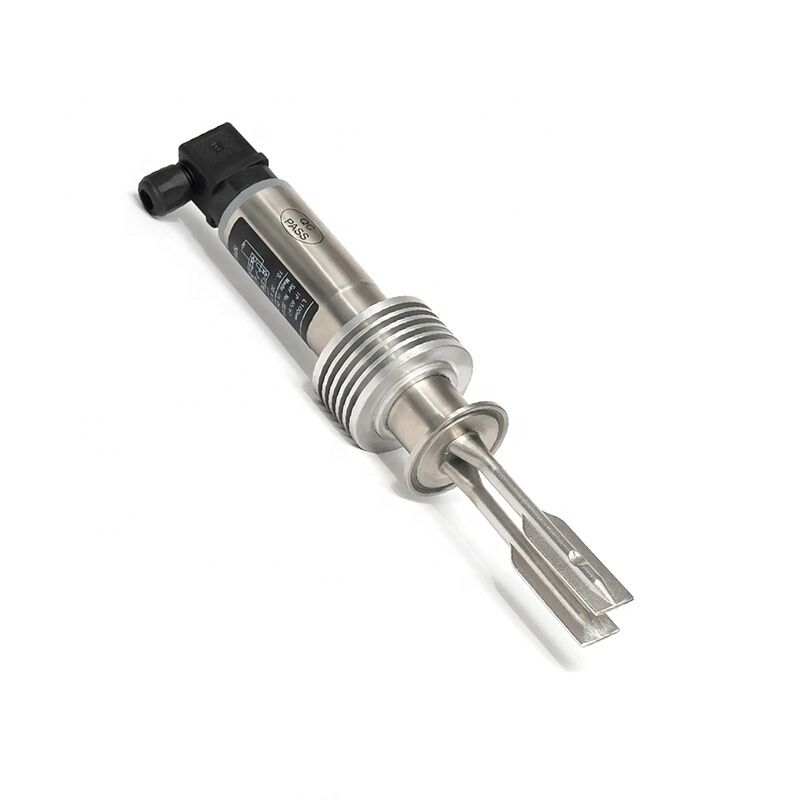

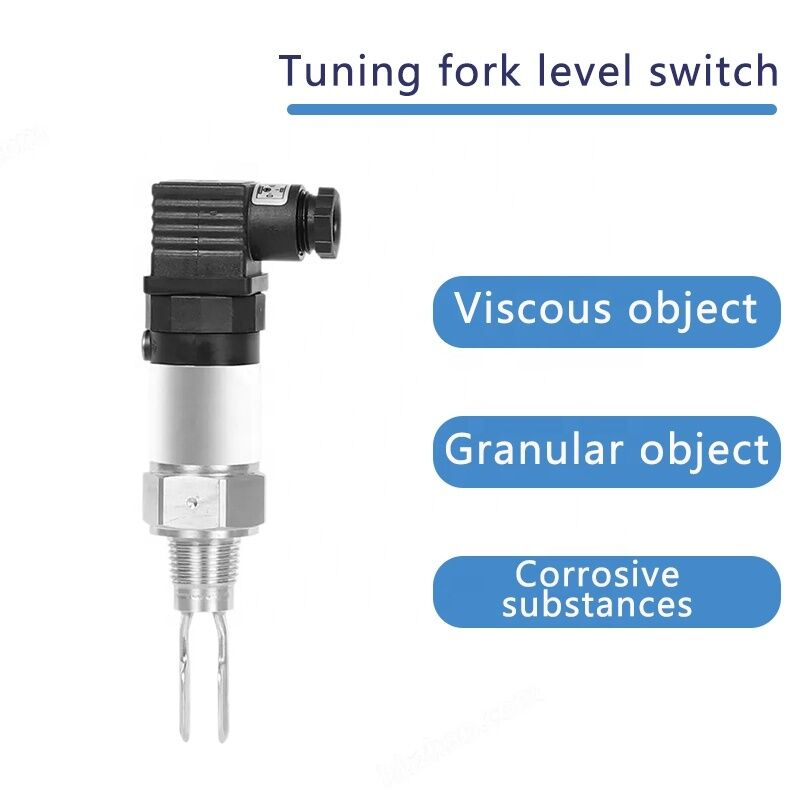

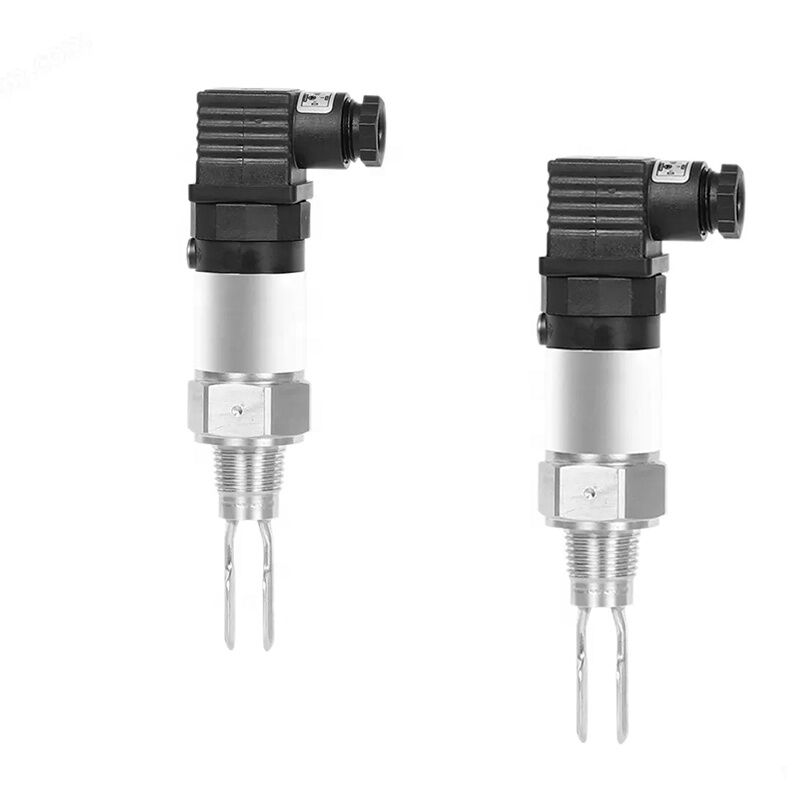

APX503 Industrial Grade Compact Vibrating Fork Tuning Switch Limit Switch for Level Measurement

The LS-300 tuning fork level switch is a simple, reliable and efficient point-type level control device. It determines whether the liquid level exists by detecting the changes in the vibration state of the fork teeth and is widely used in pump control, alarm and protection functions in various industrial processes. When making a choice, just ensure that its material and specifications match your process medium and conditions.

Technical Specifications

Power Supply	19…60VDC 19…250VAC 50/60Hz
Switching Time	In the medium 2 seconds, Empty: 3 seconds
Environment Temp.	-40…+70°C
Shelf Temp.	-40…+85°C
Medium Temp.	-40…+150°C
Working Temp.	-1…+40bar
Medium Type	Powder and particle =10mm,density>0.1g/cm³ Liquid,Viscosity =10000mm2/s, density >0.7g/cm³

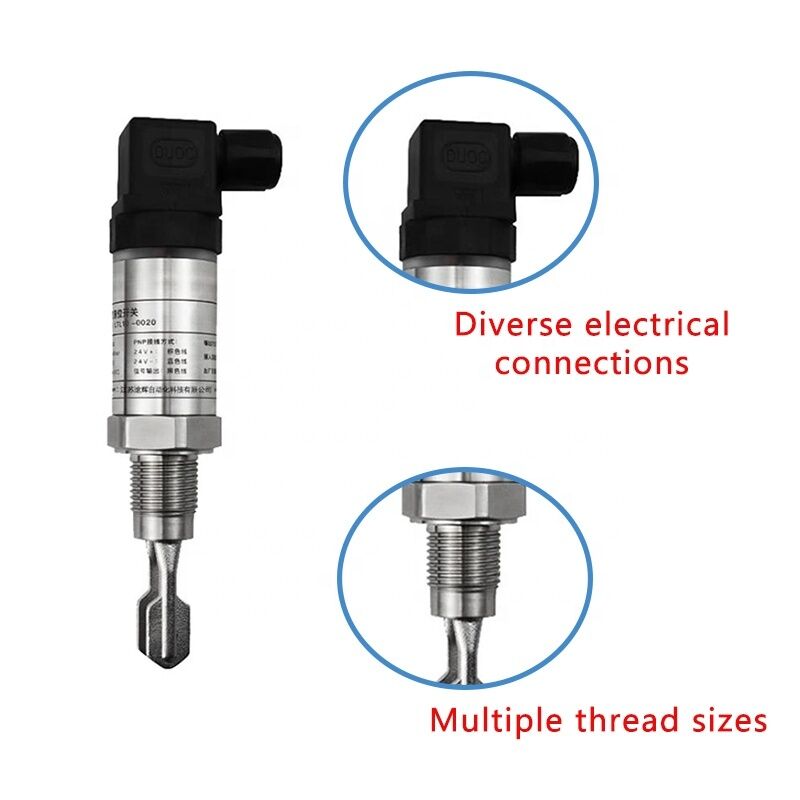

Process Connect	M20×1.5,G1-1/2",customization
Electric Connect	M12×P1.0 Connector
Shell Material	SS304
Fork Material	SS304/SS316
Output	Relay, AC250V/4A, DC60V/4A NPN, 400mA PNP, 400mA
Power Consumption	DC<3W, AC <15W

About Bailui Electric Technology Co., Ltd.

Frequently Asked Questions

1. What's your idea about your offer?

We have our own factory and offer high quality products with competitive pricing.

2. What's the MOQ?

The minimum order quantity is one piece, but our pricing is based on quantity - larger orders receive better pricing.

3. What type of payment do you have available?

We accept TT and L/C. For sample orders, Western Union, Moneygram and Aliexpress are also available.

4. What's the delivery time?

7-10 days after we receive payment.

5. How to make an order?

Tell us the size and quantity you need, or describe where you plan to use the device. Our technician will suggest the appropriate size for your application. Then pay to our bank account, and we will arrange production and ship as soon as possible.
