Name: Stainless Steel 304 Float Level Switch 100mm 200mm 300mm Water Level Controller Liquid Level Sensors
Brand: Xi'an Bairui Electrical Technology Co., Ltd.
SKU: FQKG
Availability: InStock

Home > Products > Liquid level analysis >

Stainless Steel 304 Float Level Switch 100mm 200mm 300mm Water Level Controller Liquid Level Sensors

Stainless Steel 304 float level switch

100mm water level controller

liquid level sensor with warranty

Place of Origin:

Shaanxi, China

Brand Name:

bairui

Model Number:

FQKG

Chat Now

Request A Quote

Product Details

Series:

Single Float Ball

Mounting Type:

Threaded Flange

Description:

Liquid Level Switch, FQKG

Manufacturing Date Code:

2025

Type:

Liquid Level Sensor

Usage:

Control The Liquid Level

Theory:

Switch

Output:

Switch

Power Source:

24V,220V

Switch Actuation Level:

50-800mm

Supply Voltage:

AC 30-260V DC 12-260V

Induction Mode:

Magnetic Induction

Installation Mode:

Screw Thread

Length:

100mm

Product Name:

Float Switch

Output Signal:

NO Or NC

Material:

Su 304

Scope Of Work:

3-5mm

Application:

Water Tank, Industrial Water Tower, Aquaculture Water Pool

Highlight:

Stainless Steel 304 float level switch

100mm water level controller

liquid level sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

5 pieces

Price

Negotiable

RELATED PRODUCTS

86--18149042799

xianbairui@foxmail.com

Chat Now

Product Description

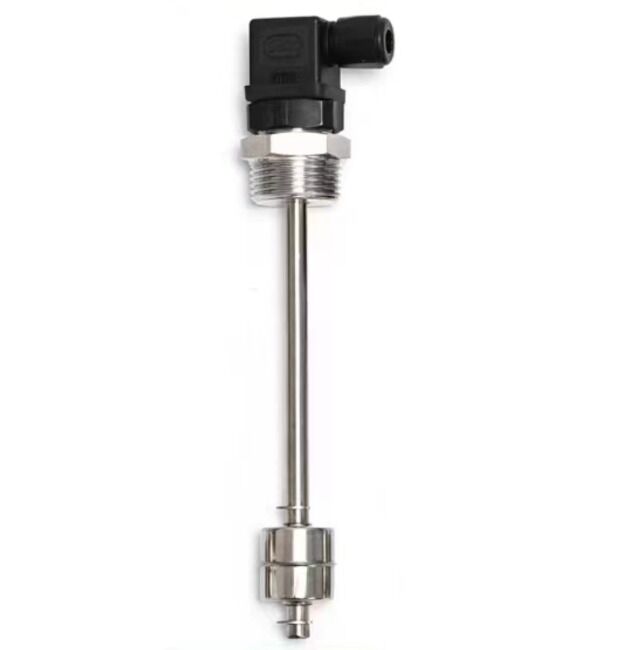

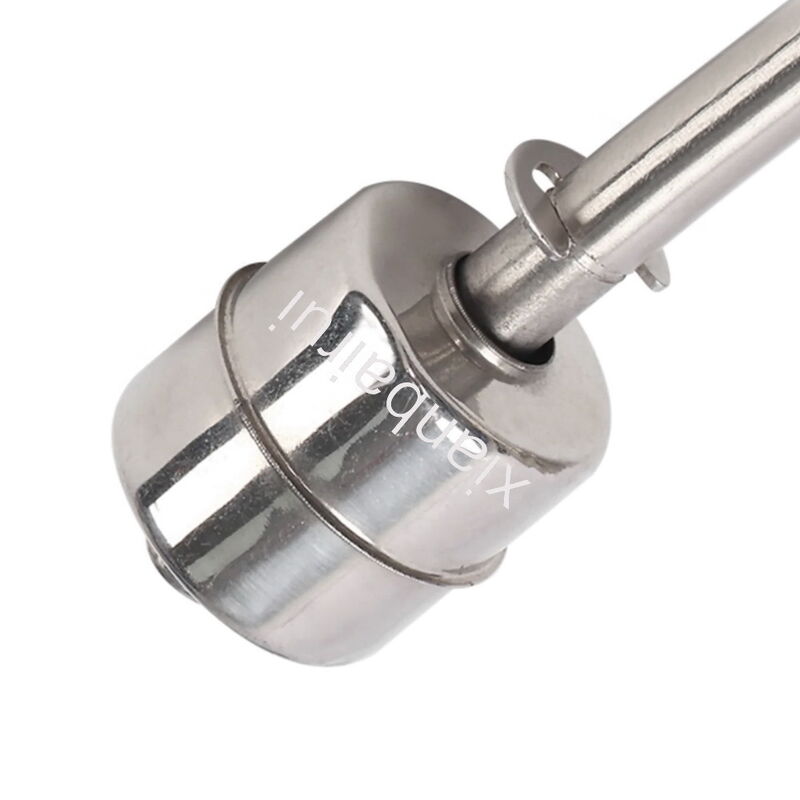

Stainless Steel 304 Float Level Switch

Professional-grade liquid level sensors available in 100mm, 200mm, and 300mm lengths for precise water level control and monitoring applications.

Product Specifications

Specification	Details
Customized Support	OEM, ODM
Place of Origin	Shaanxi, China
Brand Name	Bairui
Model Number	FQKG
Length Options	0-800mm
Installation Mode	Hesman / Flange / Junction Box
Contact Capacity	Contact current 1A, 2A
Supply Voltage	AC 12-260V, AC 30-260V
Material	Stainless Steel S304
Medium Temperature	-20°C to 120°C
Applicable Media	Water and Oil
Diameter of Guide Rod	8mm
Protection Rating	IP65

Application Overview

This water level sensor is widely used in water and oil tank level auto control systems. It detects liquid levels to automatically start up and shut down water pumps or electric valves based on liquid level changes, or outputs switching signals to other signal acquisition modules.

Product Images
