Place of Origin:
Shaanxi, China
Brand Name:
chenzhu
Model Number:
GS5035-EX

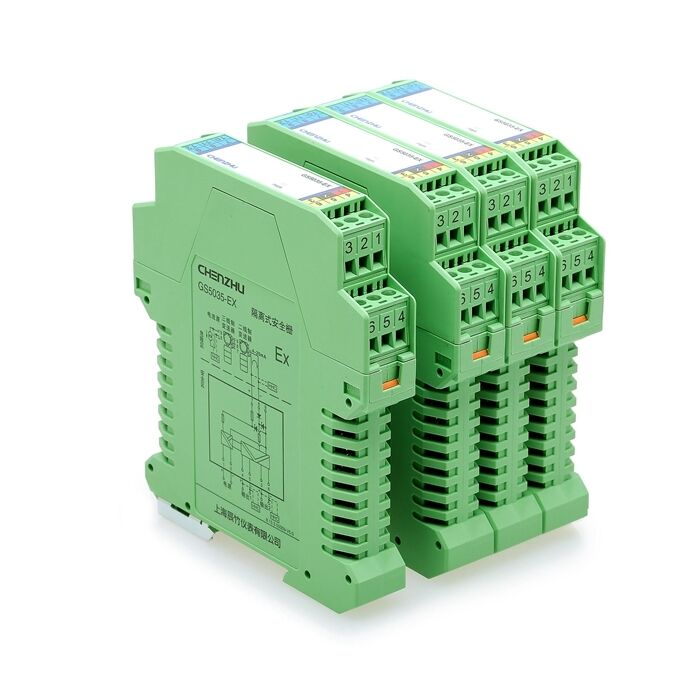

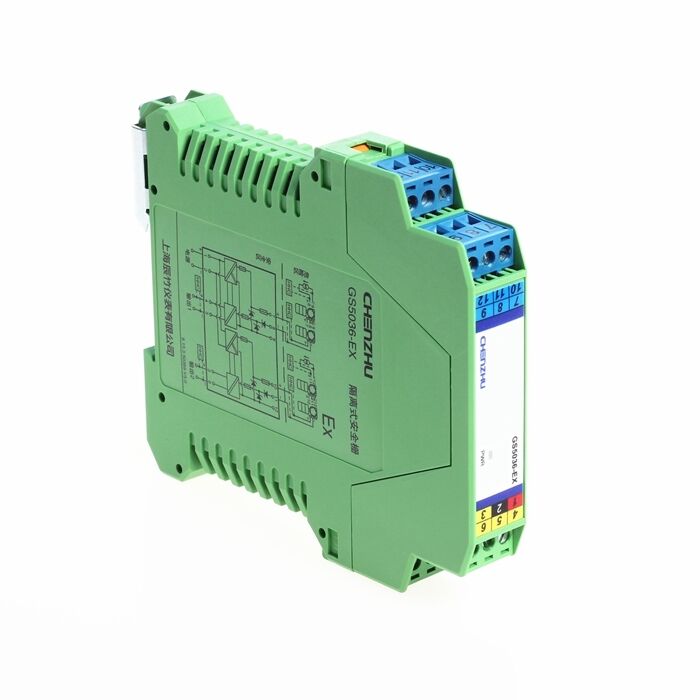

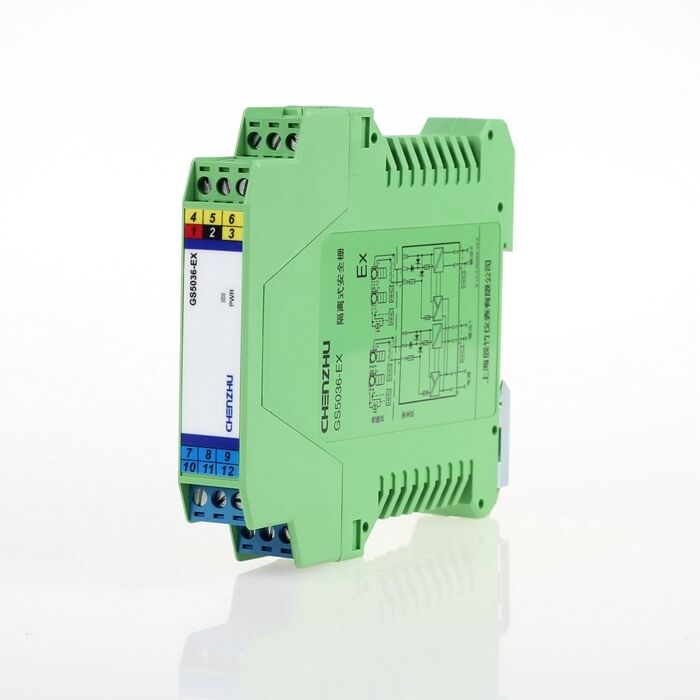

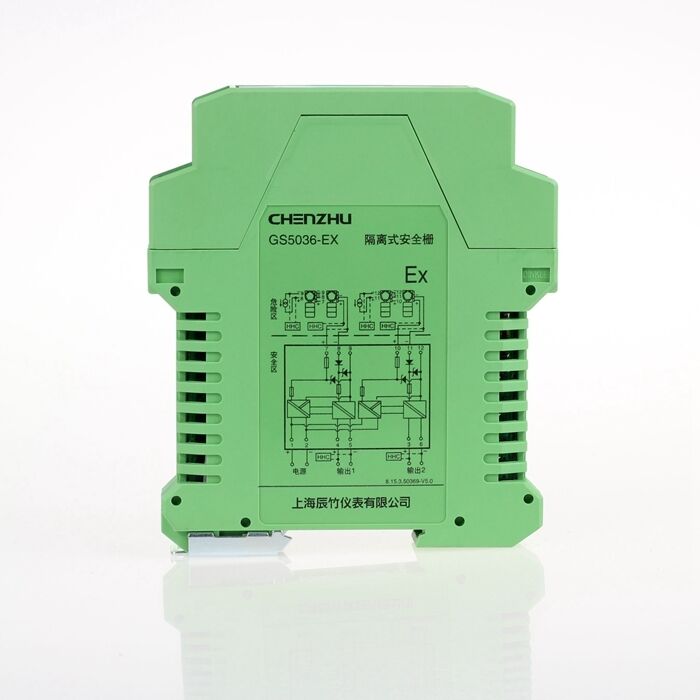

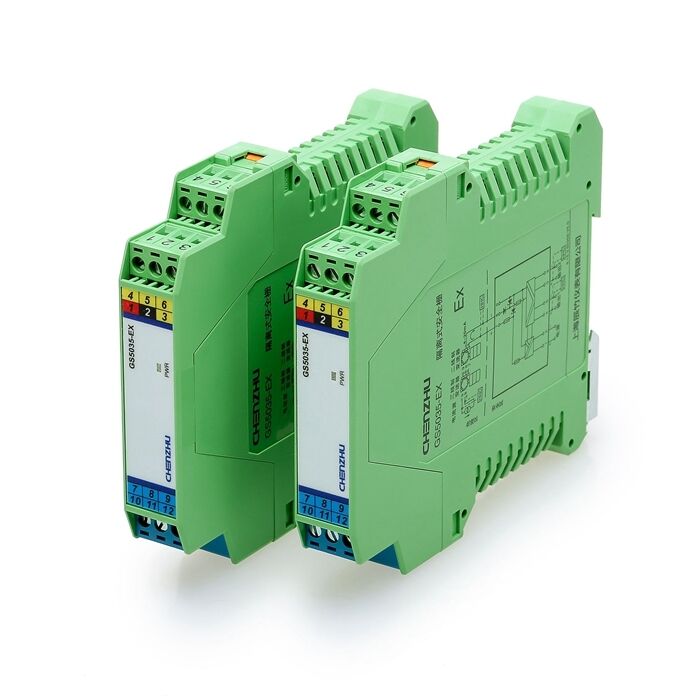

The analog input isolation barrier provides isolated power supply to the transmitters in the hazardous area, isolating and transmitting the current generated by the transmitters from the hazardous side to the safe side, and supports bidirectional transmission of HART signals. This product requires independent power supply, with three isolations for power supply, input and output.
| Model | GS5035-EX | GS5036-EX | GS5045-EX |
|---|---|---|---|
| Number of channels | 1 in, 2 out | 2 in, 2 out | 1 in, 1 out |
| Response time | 2ms reaches 90% of the final value | 2ms reaches 90% of the final value | 2ms reaches 90% of the final value |
| Input signal | 0~20mA; 4~20mA; HART digital signal | 0~20mA; 4~20mA; HART digital signal | 0~20mA; 4~20mA; HART digital signal |
| Open-circuit voltage | ≤28V | ≤28V | ≤28V |
| Distribution voltage | Voltage at 20mA: ≥15.5V | Voltage at 20mA: ≥15.5V | Voltage at 20mA: ≥15.5V |
| Normal operating current | ≤25mA | ≤25mA | ≤25mA |
| Output signal | 0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V | 0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V | 0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V |
| Current output load resistor | RL≤300Ω(550Ω is optional for users) | RL≤300Ω(550Ω is optional for users) | RL≤300Ω(550Ω is optional for users) |
| Voltage output load resistor | RL 330 k Ω or higher | RL 330 k Ω or higher | RL 330 k Ω or higher |
| Supply voltage (Ue) | 20-35V DC | 20-35V DC | 20-35V DC |
| Power protection | Reverse power supply protection | Reverse power supply protection | Reverse power supply protection |
| Current consumption | ≤75mA(when powered by 24V and with 20mA output) | ≤75mA(when powered by 24V and with 20mA output) | ≤75mA(when powered by 24V and with 20mA output) |
| Power supply mode | Independent power supply | Independent power supply | Independent power supply |
| Power connection method | Terminal power supply | Terminal power supply | Terminal power supply |
| Material | PA | PA | PA |
| Protection grade | IP20 | IP20 | IP20 |
Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on the research, development, design, production, and trade of sensor products. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, providing customers with complete sets of mature application solutions. Our products serve various industries including pharmaceutical, aerospace, chemical, and electronics.
We have extensive experience in foreign trade and dealing with all aspects of international business. The company promises: "reasonable price, short production time, satisfactory after-sales service". We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.
We have our own factory and offer high quality products with proper pricing.
The minimum order quantity is one piece, but our pricing is based on quantity - larger orders receive more competitive pricing.
We accept TT and L/C for sample orders. Western Union, Moneygram, and Aliexpress are also available payment methods.
7-10 days after we receive payment.
Tell us the size and quantity you need, or describe your application requirements. Our technical team will recommend the appropriate specifications. After payment to our bank account, we will arrange production and ship your order as soon as possible.
