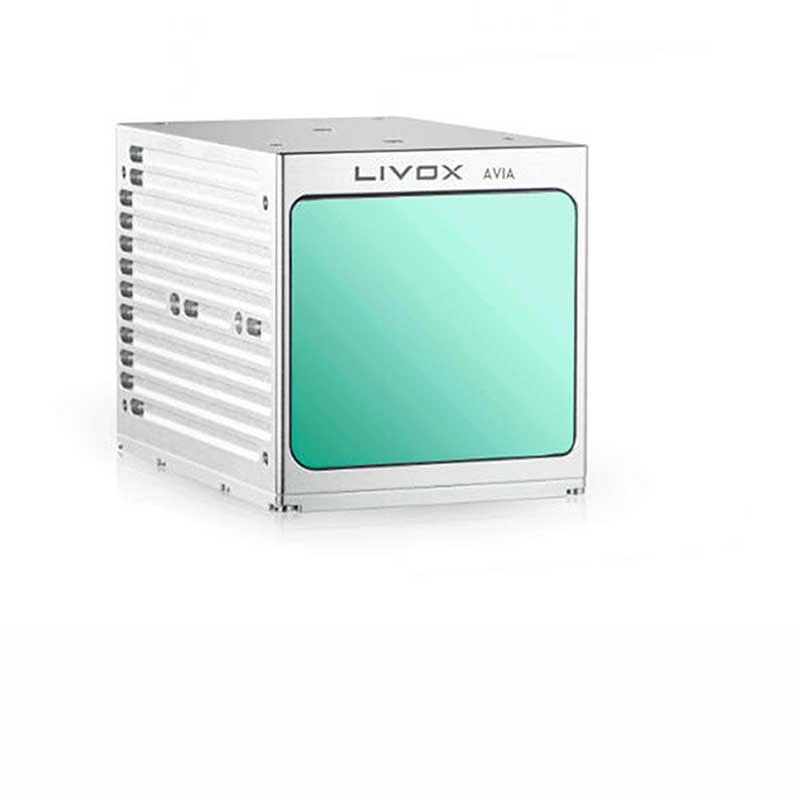

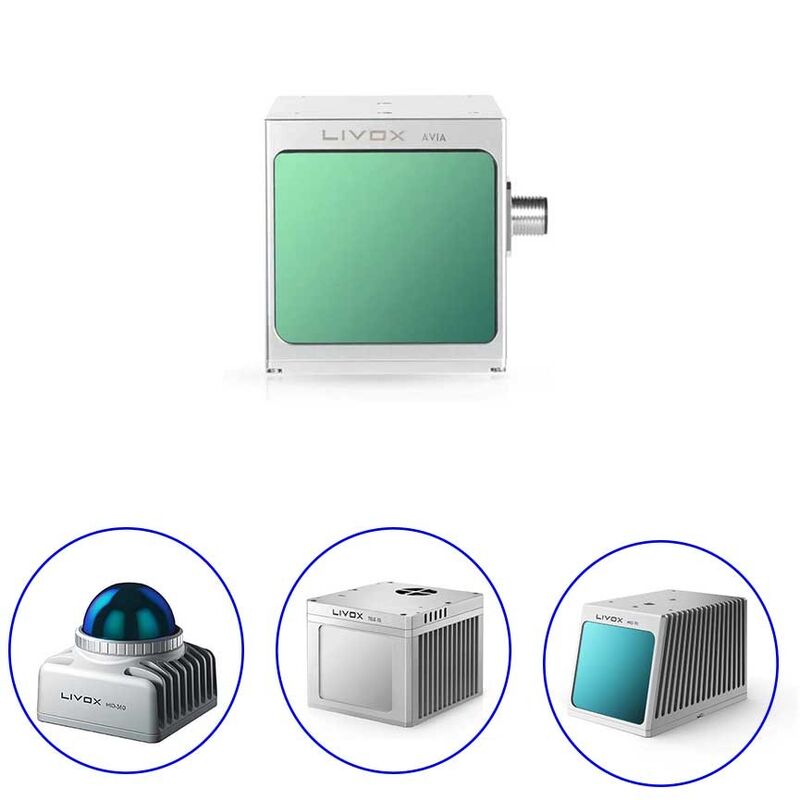

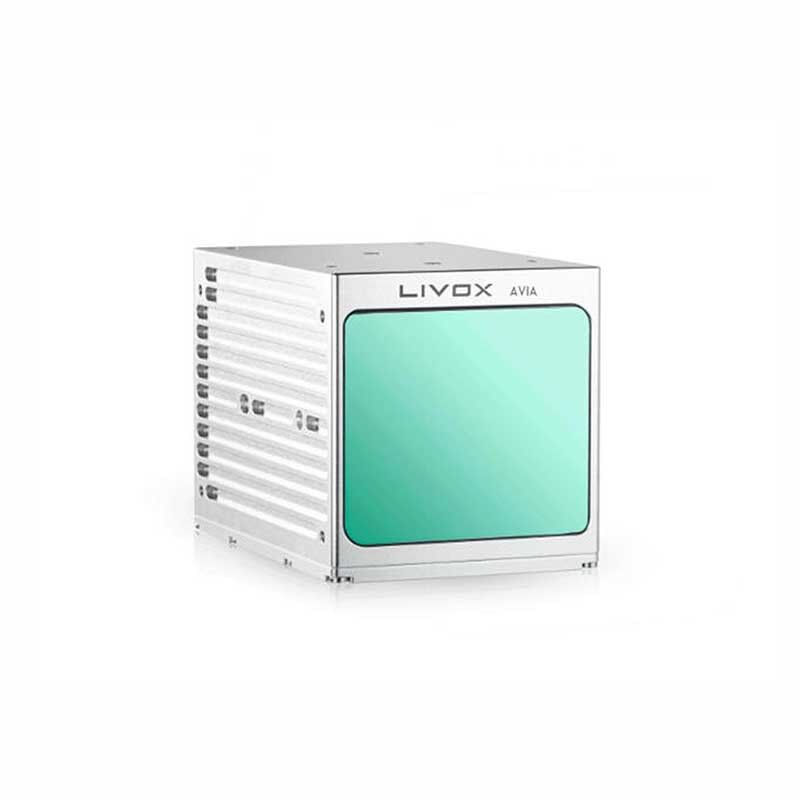

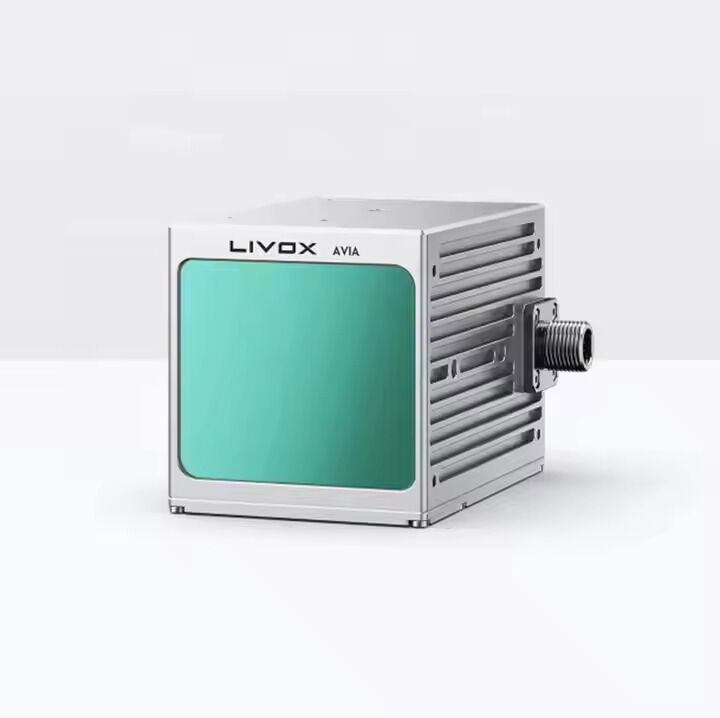

50m Distance High Precision 3D LiDAR Sensor
Advanced 3D LiDAR sensor offering exceptional precision, high rotation frequency, low noise operation, and compact design with lightweight construction.
Key Features
Adaptive Detection Technology: Avia automatically adjusts detection distance based on ambient light intensity while maintaining extremely low noise levels. Enhanced range performance in low-light conditions (cloudy days, indoors, night) extends to 450 meters, enabling surveying equipment to operate at higher navigation altitudes for improved efficiency without compromising distant object detail.
Compact & Efficient Design: The Avia LiDAR features a lightweight, compact form factor that significantly enhances detection range and operational efficiency. With a field of view exceeding 70°, it supports three-echo and dual-scan modes for versatile applications across power, forestry, general mapping, and smart city sectors.
Technical Specifications
| Item |
Value |
| Mounting Type |
TBD |
| Description |
Livox Avia LiDAR sensor |
| Model Number |
Livox Avia |
| Place of Origin |
China |
| Brand Name |
Livox |
| Detecting Distance |
320m @ 80% reflectivity |
| FOV |
70.4×77.2 degrees |
| Distance Random Error |
<2cm @ 20m |
| Angular Random Error |
<0.05 degrees |
| Laser Wavelength |
905nm |
| Point Rate |
240,000-720,000Hz |
| Protection Grade |
IP67 |
| Supply Voltage |
DC 10-15V |
| Weight |
498g |
| Dimensions |
91×61.2×64.8mm |
Packaging & Delivery
Individual Package
1 piece per package. For orders of 50 pieces or more, custom packaging specifications and colors are available according to customer requirements.
Carton Packaging
1 piece per package. Package dimensions: 1000×1000×800mm. Weight: 1kg.
About Bailui Electric Technology Co., Ltd.
Established in January 2013, Bailui Electric Technology Co., Ltd. specializes in sensor product research, development, design, production, and trade. With over ten years of technological expertise, we adhere to a business philosophy of technology-first and service-first, providing customers with comprehensive application solutions across pharmaceutical, aerospace, chemical, electronics, and other industries. Our commitment: "Reasonable pricing, short production cycles, and satisfactory after-sales service." We welcome partnerships with customers for mutual development and benefit.
Frequently Asked Questions
What are your pricing and quality standards?
As a factory-direct supplier, we offer high-quality products at competitive prices.
What is the Minimum Order Quantity (MOQ)?
The MOQ is one piece. Pricing is quantity-based, with discounts available for larger orders.
What payment methods do you accept?
We accept TT and L/C. For sample orders, Western Union, MoneyGram, and AliExpress payments are available.
What is the delivery time?
7-10 days after payment confirmation.
How do I place an order?
Provide us with the required specifications and quantity, or describe your application. Our technical team will recommend suitable configurations. After payment processing, we will arrange production and expedite delivery.
