Name: In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics.MID-40
Brand: Xi'an Bairui Electrical Technology Co., Ltd.
SKU: MID360
Price: negotiable USD
Availability: InStock

Home > products > Radar sensor >

In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics.MID-40

MIN360 radar sensor for robotics

MID-360 3D sensor low speed

MID-40 radar sensor with warranty

Place of Origin:

shenzhen

Brand Name:

livox

Model Number:

MID360

Chat Now

Request A Quote

Product Details

Packaging Type:

Box Pack

Application:

Robots, Driverless Vehicles, Unmanned Aircraft

Series:

MID-360

Mounting Type:

Thread Fixation

Description:

Laser Detection Rangefinder

Frame Rate:

10 HZ

Resolution:

0.1mm

Voltage - Supply:

DC 9-27v

Sensor Type:

CMOS

Field Angle:

360°

Product Name:

Radar Sensor

Working Temperature:

-20...55℃

Highlight:

MIN360 radar sensor for robotics

MID-360 3D sensor low speed

MID-40 radar sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable

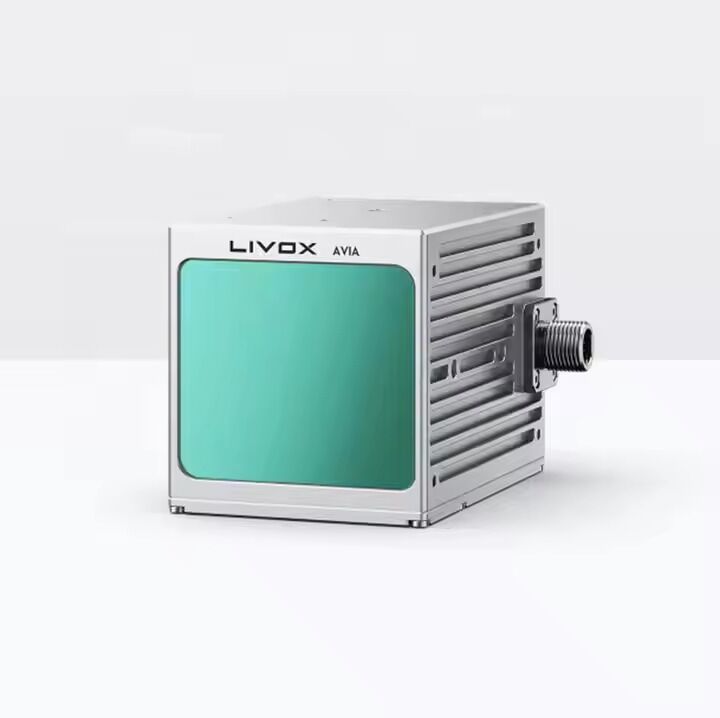

Livox Avia Laser Detection Rangefinder with Advanced Image & Camera Sensors

Chat Now

50m distance high precision and high rotation frequency low noise and small size light weight range 3D lidar sensor

Chat Now

360° Field of View IP67-Rated Wireless Imaging Sensor with 10 Hz Frame Rate for High-Precision Vision Systems

Chat Now

In-stock MIN360 radar sensor 3D sensorr MID-360 For Low Speed Robotics.

Chat Now

86--18149042799

xianbairui@foxmail.com

Chat Now

Product Description

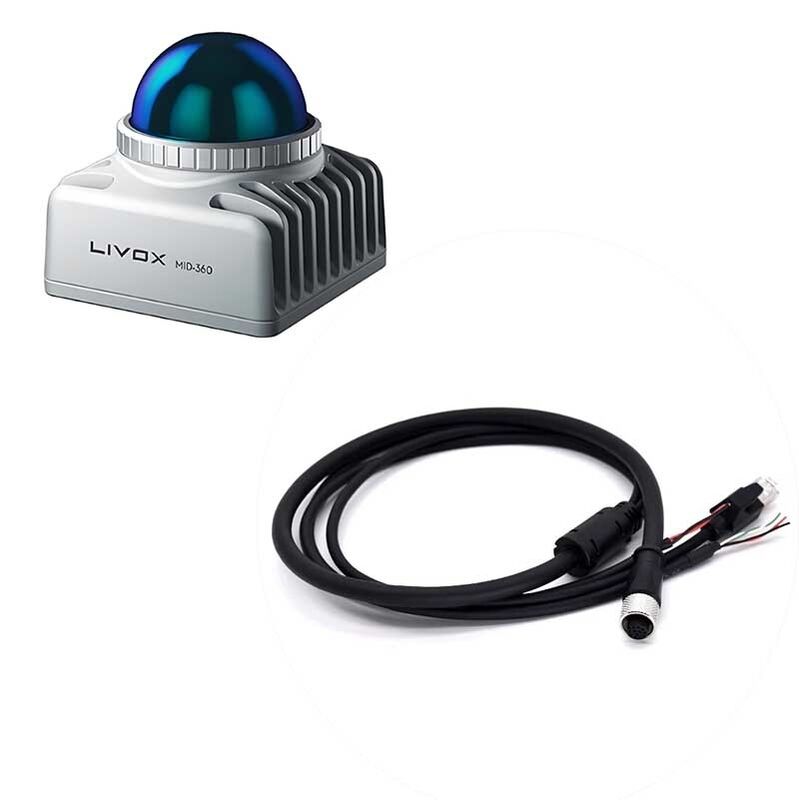

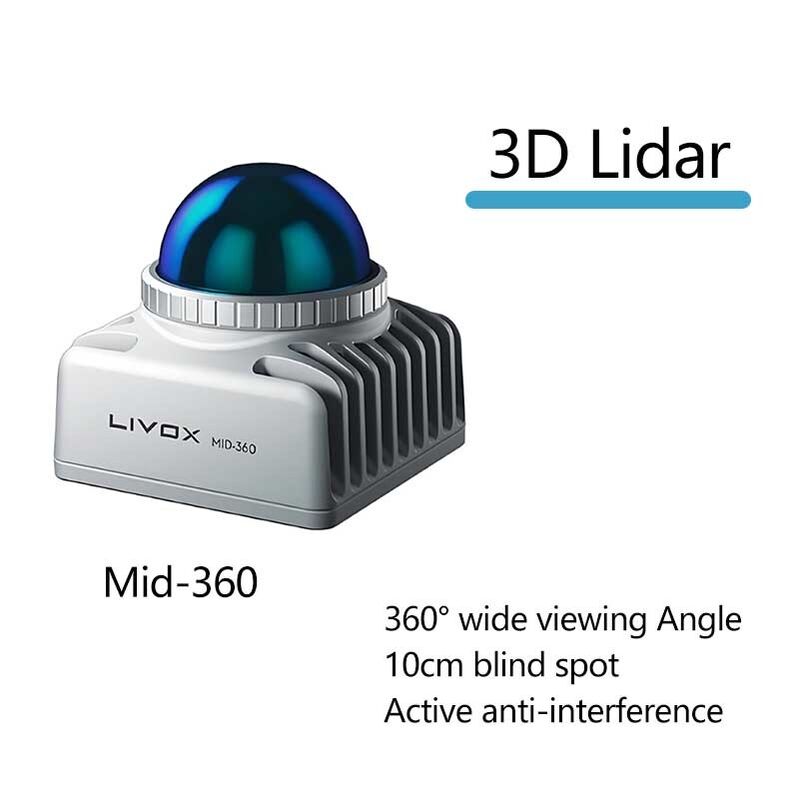

MID-360 3D Radar Sensor for Low Speed Robotics

In-stock MIN360 radar sensor 3D sensor MID-360 designed specifically for low-speed robotics applications.

Key Features

360° horizontal FOV with wide vertical coverage (-7° to 52°)
Class 1 Eye-Safe operation certified
IP67-rated for dust and water resistance
PTPv2 (IEEE 1588) and GPS synchronization
Built-in IMU (ICM-40609) for motion compensation
Anti-crosstalk capability in multi-LiDAR environments

Technical Specifications

Parameter	Value
Model	MID-360
Laser Wavelength	905 nm
Eye Safety Class	Class 1 (IEC 60825-1:2014) Eye-Safe
Range (@ 100 klx)	40 m @ 10% reflectivity 70 m @ 80% reflectivity
Near Blind Zone	0.1 m
FOV (Field of View)	Horizontal: 360° Vertical: -7° to 52°
Ranging Random Error (1σ)	≤ 2 cm (@ 10 m) ≤ 3 cm (@ 0.2 m)
Angular Random Error (1 σ)	< 0.15°
Point Cloud Output	200,000 points/second (configurable first echo)
Point Cloud Frame Rate	10 Hz (typical)
Data Interface	100 BASE-TX Ethernet
Data Synchronization	IEEE 1588-2008 (PTPv2), GPS
Anti-Crosstalk	Supported
False Alarm Rate (@ 100 klx)	< 0.01%
IMU	Built-in IMU Model: ICM-40609
Operating Temperature	-20°C to 55°C
Ingress Protection	IP67
Power Consumption	6.5 W
Supply Voltage	9-27 V DC
Dimensions	65 × 65 × 60 mm
Weight	265 g (0.265 kg)

Packaging & Delivery

Separate Package

1 piece per package. For orders of 50 pieces or more, free custom packaging specifications and colors available according to user requirements.

Carton Packaging

1 piece per package. Package dimensions: 1000×1000×800mm. Weight: 1kg.

About Bailui Electric Technology Co., Ltd.

Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on sensor product research, development, design, production, and trade. With over ten years of technology accumulation, we follow the business philosophy of "technology first and service first" to provide customers with complete, mature application solutions. Our expertise spans pharmaceutical, aerospace, chemical, electronics, and other industries.

With extensive experience in foreign trade, we handle all aspects of international business. Our company commitment: "Reasonable price, short production time, satisfactory after-sales service". We welcome cooperation with customers for mutual development and benefit.

Frequently Asked Questions

What's your idea about your offer?

We have our own factory and offer high quality products at competitive prices.

What's the MOQ?

The minimum order quantity is one piece. Our pricing is quantity-based - larger orders receive better pricing.

What type of payment do you have available?

We accept TT and L/C. For sample orders, Western Union, and Aliexpress are available.

What's the delivery time?

7-10 days after we receive payment.

How to make an order?

Tell us the size and quantity you need, or describe your application so our technicians can recommend the appropriate size. After payment to our bank account, we will arrange production and ship as soon as possible.
