Name: High Temperature Resistance Anti Static Vibrating Tuning Fork Water Liquid Level Switch
Brand: Xi'an Bairui Electrical Technology Co., Ltd.
SKU: LS-300
Price: negotiable USD
Availability: InStock

Home > products > Liquid level analysis >

High Temperature Resistance Anti Static Vibrating Tuning Fork Water Liquid Level Switch

high temperature resistant liquid level switch

anti static vibrating tuning fork

water level sensor with warranty

Place of Origin:

Guangdong, China

Brand Name:

BAIRUI

Model Number:

LS-300

Chat Now

Request A Quote

Product Details

Mounting Type:

Threaded Installation

Description:

Ultrasonic Sensor

Type:

Ultrasonic Sensor

Usage:

Liquid Level Measurement

Theory:

Vibration Occurs At The Mechanical Resonance Frequ

Output:

PNP/NPN

Amplifier Type:

Standard

Voltage - Supply:

24v DC

Detection Distance:

1500mm

Material:

Stainless Steel

Highlight:

high temperature resistant liquid level switch

anti static vibrating tuning fork

water level sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

2 pieces

Price

Negotiable

High Temperature Resistance Anti Static Vibrating Tuning Fork Water Liquid Level Switch

Chat Now

IP68 Protection Stainless Steel 304 Submersible Pressure Transmitter with 0.5% Accuracy for Water and Oil Level Measurement

Chat Now

Vertically Mounted Stainless Steel 304 Magnetic Float Level Switch with 0-800mm Length for Pool Buffer Tank

Chat Now

Water Level Sensor Level Measuring Instruments Stainless Steels High Temperature Tuning Fork Level

Chat Now

86--18149042799

xianbairui@foxmail.com

Chat Now

Product Description

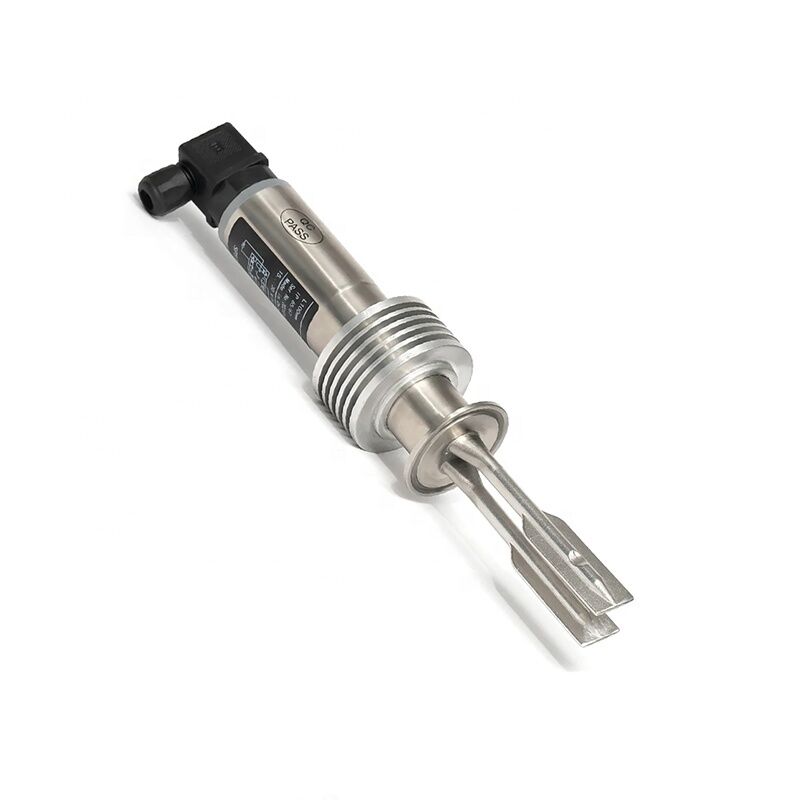

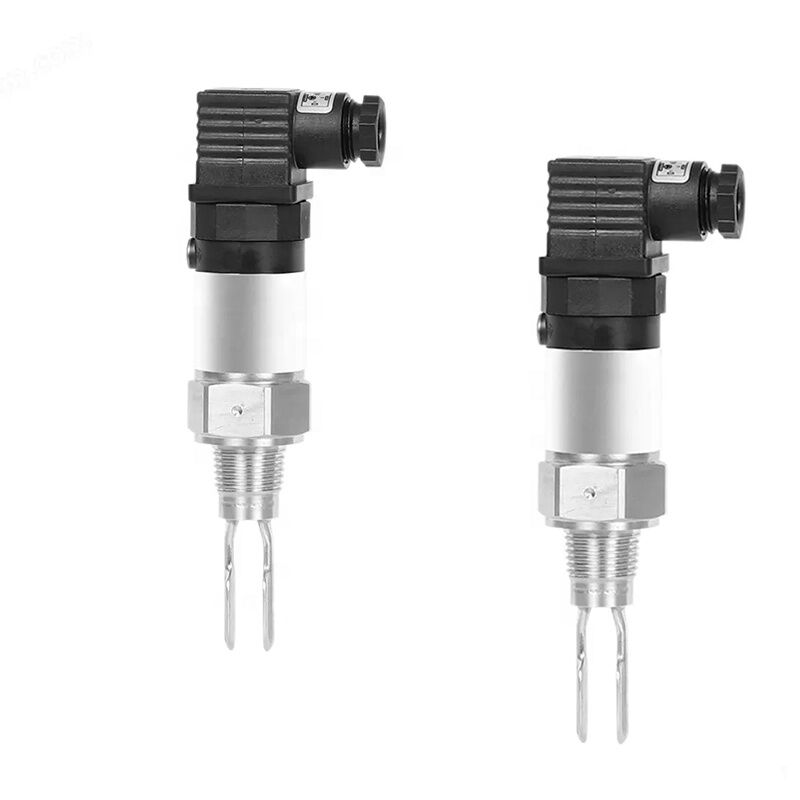

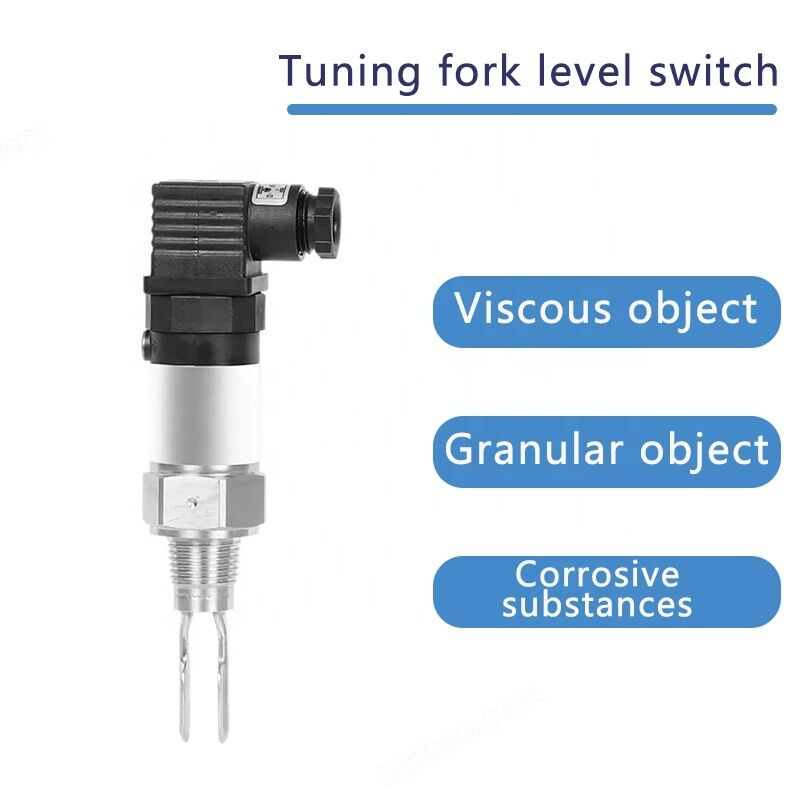

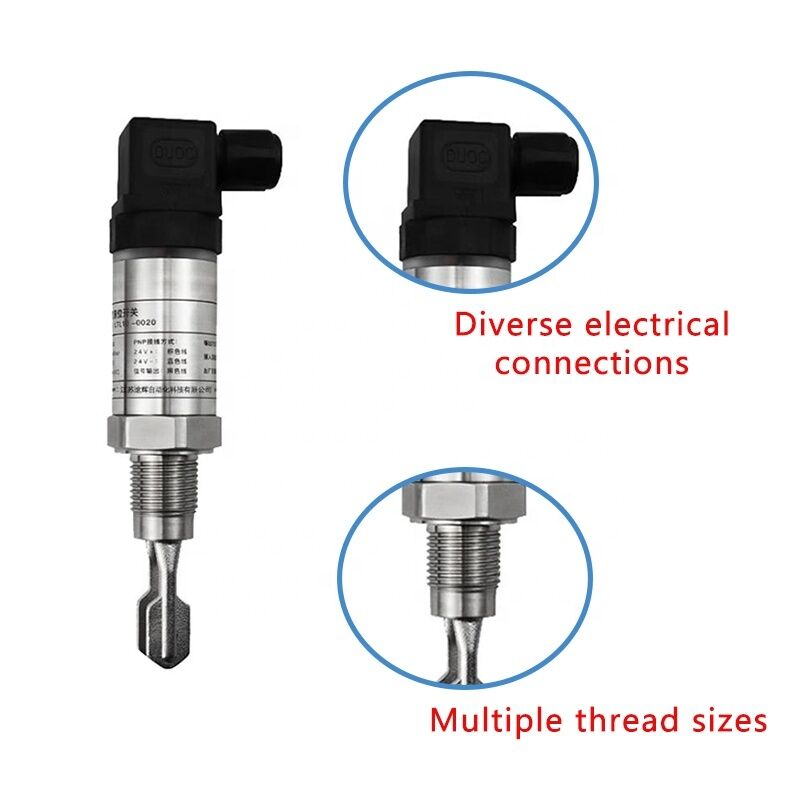

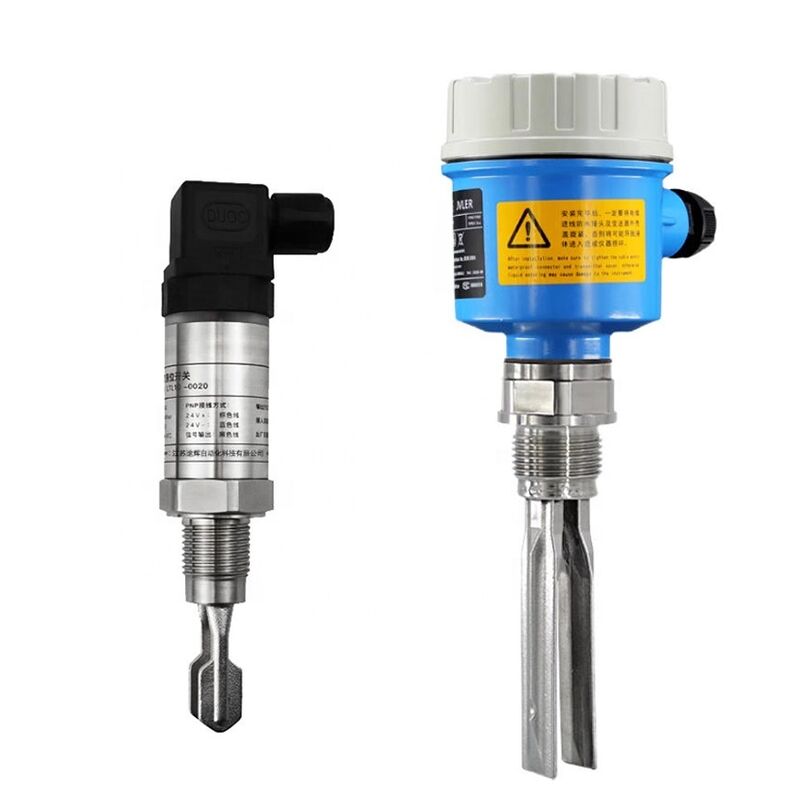

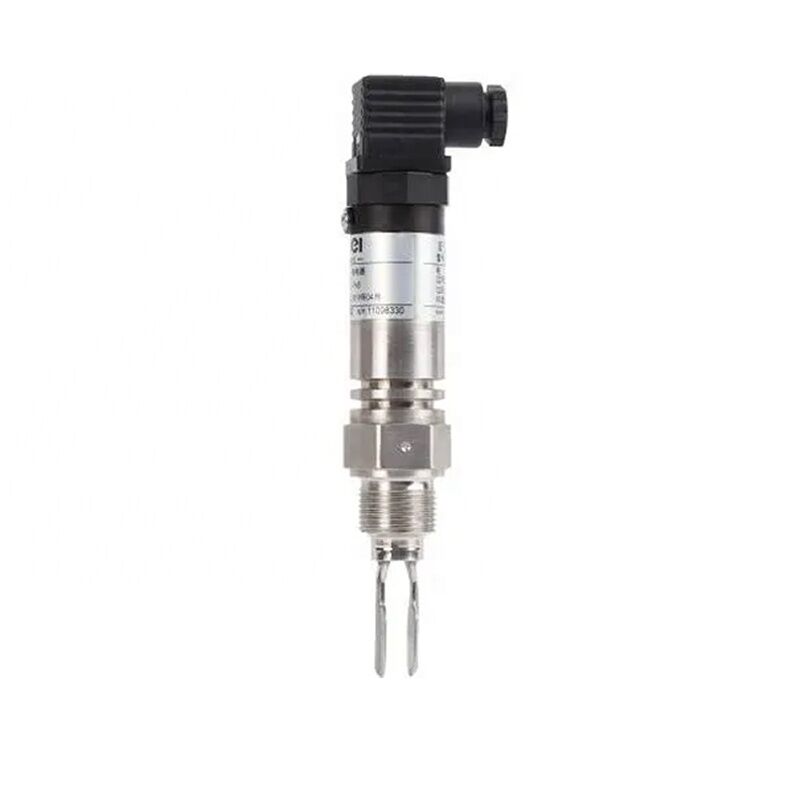

High Temperature Resistance Anti Static Vibrating Tuning Fork Water Liquid Level Switch

The LS-300 tuning fork level switch is a simple, reliable and efficient point-type level control device. It determines whether the liquid level exists by detecting the changes in the vibration state of the fork teeth and is widely used in pump control, alarm and protection functions in various industrial processes. When making a choice, just ensure that its material and specifications match your process medium and conditions.

Technical Specifications

Power Supply	19…60VDC 19…250VAC 50/60Hz
Switching Time	In the medium: 2 seconds, Empty: 3 seconds
Environment Temperature	-40…+70°C
Shelf Temperature	-40…+85°C
Medium Temperature	-40…+150°C
Working Pressure	-1…+40bar
Medium Type	Powder and particle ≤10mm，density>0.1g/cm³ Liquid，Viscosity ≤10000mm²/s, density >0.7g/cm³
Process Connection	M20×1.5，G1-1/2"，customization
Electric Connection	M12×P1.0 Connector
Shell Material	SS304
Fork Material	SS304/SS316
Output	Relay, AC250V/4A, DC60V/4A NPN, 400mA PNP, 400mA
Power Consumption	DC<3W, AC <15W

Packing & Delivery

About Bailui Electric Technology Co., Ltd.

Established in January 2013, Bailui Electric Technology Co., Ltd. is a professional company focused on sensor product research and development, design, production, and trade. With more than ten years of technology accumulation, we follow the business philosophy of technology first and service first, providing customers with complete mature application solutions. The industries we serve include pharmaceutical, aerospace, chemical, electronics and other sectors. In foreign trade, we have rich experience in dealing with all aspects of international business.

Company Promise: "Reasonable price, short production time, satisfactory after-sales service". We hope to cooperate with more customers for common development and mutual benefit. Potential buyers are welcome to contact us.

Frequently Asked Questions

What's your idea about your offer?

We have our own factory and offer high quality products with competitive pricing.

What's the MOQ?

The minimum order quantity is one piece, but our pricing is quantity-based. Larger orders receive more favorable pricing.

What type of payment do you accept?

We accept TT and L/C. For sample orders, Western Union, and Aliexpress are also available.

What's the delivery time?

7-10 days after we receive payment.

How to make an order?

Tell us the size and quantity you need, or describe your application. Our technicians will recommend the appropriate size. After payment to our bank account, we will arrange production and ship as soon as possible.
