Place of Origin:
Denmark
Brand Name:
PR electronics
Model Number:
5333A

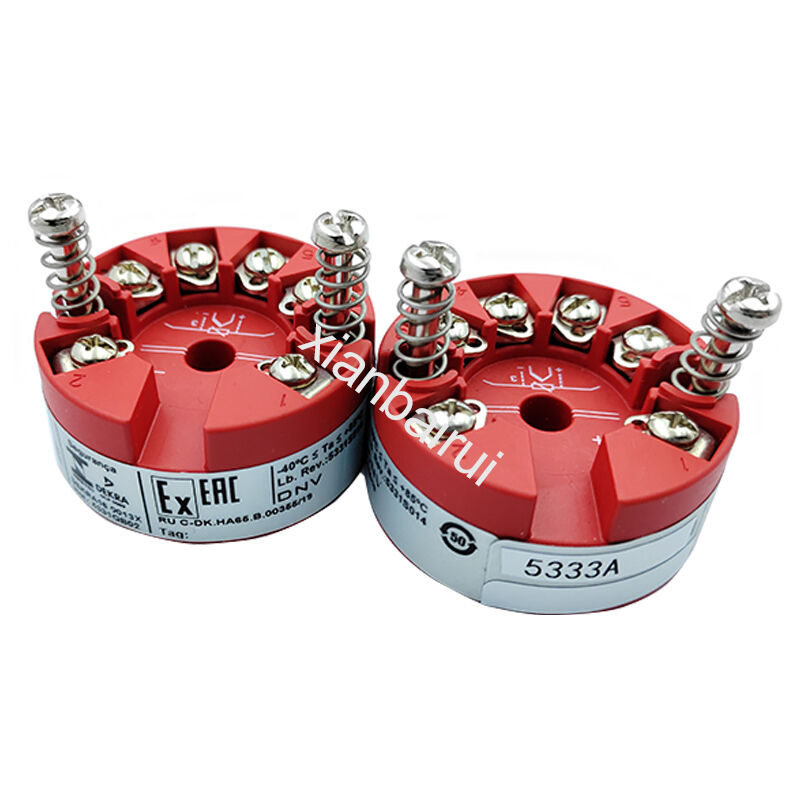

| Product Name | Round head temperature transmitter |
| Model Number | 5333 |
| Origin | Denmark |
| Brand | PR electronics |
| Primary Function | Temperature/resistance signal conversion |
| RTD Measuring Range | -200...+850°C / 25°C minimum range |
| Linear Resistance Range | 0...10 kΩ / 30 Ω minimum range |
| Sensor Connections | Two lines / Three lines |
| TC Type | 50% of the selected maximum value |
| mA Signal Range | 3.5...23 mA / 16 mA minimum range |
| Ambient Temperature | -40...+85°C |
| Power Supply Voltage | 8...35 VDC |
| Maximum Power Consumption | 0.8W |
| Response Time | 0.33...60 s |
| Signal Dynamic Range | 19 bit input / 16 bit output |
| Precision | ±0.1% of measuring range |
| Temperature Coefficient | ±0.01% of range per °C |
| NAMUR Standard | NE43 |
| Channels | 1 |
| Parameter Setting Mode | Loop Link |
| Dimensions | Ø 44 x 20.2 mm |
