Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control

Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control

M12 connector RTD sensor

Quick-install interface temperature sensor

Process control Pt100 sensor

Chat Now
Request A Quote
Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control
Product Details
Highlight:

M12 connector RTD sensor

,

Quick-install interface temperature sensor

,

Process control Pt100 sensor

Payment & Shipping Terms
Minimum Order Quantity
5
Packaging Details
1pcs
Delivery Time
7-14
Payment Terms
L/C,D/A,D/P
Supply Ability
10000
RELATED PRODUCTS
Good price Hot Selling 316L Double Branch Temperature Sensor Puncture Sterile Cabinet with High Sensitivity for Temperature Monitoring online

Hot Selling 316L Double Branch Temperature Sensor Puncture Sterile Cabinet with High Sensitivity for Temperature Monitoring

Chat Now
Good price DS18B20 Digital Temperature Sensor online

DS18B20 Digital Temperature Sensor

Chat Now
Good price Ip68 Rated Injection Molded Double Rolling Stainless Steel Ntc Ptc Rtd Pt100 Pt1000 Waterproof Temperature Sensor online

Ip68 Rated Injection Molded Double Rolling Stainless Steel Ntc Ptc Rtd Pt100 Pt1000 Waterproof Temperature Sensor

Chat Now
Good price G1/2 3/8 1/4Screw Mounting DS18B20 Digital Temperature Sensor Cold Storage Temperature Sensor online

G1/2 3/8 1/4Screw Mounting DS18B20 Digital Temperature Sensor Cold Storage Temperature Sensor

Chat Now
CONTACT US
86--18149042799
xianbairui@foxmail.com
Chat Now
Product Description
Pt100 Metal Temperature Sensor with Standard Quick-Install Interface

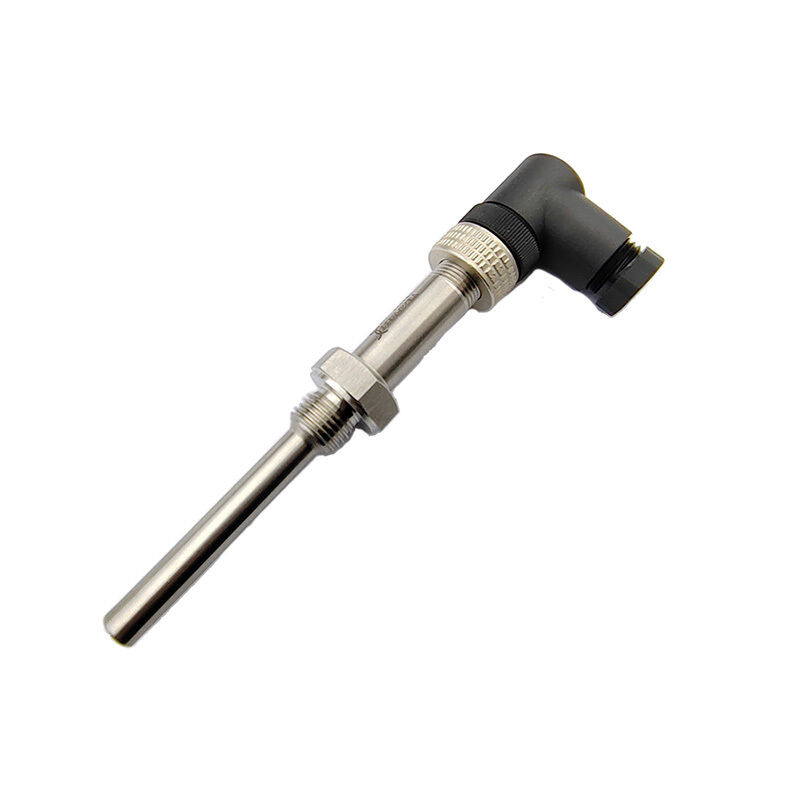

Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control 0
  • All use welded 316L stainless steel shells
  • Optional with or without installation threads, providing M8x1 and M10x1 installation threads
  • A-class Pt100 or Pt1000 4-wire platinum RTD elements, in accordance with IEC60751 standard
  • Integrated 4-pin M12 connector for easy connection
  • Fast response (3.5 seconds or response time in water is less than 63% of normal conditions)
  • Standardized 6 mm diameter (available in 3 mm diameter)

High-precision RTD temperature sensors featuring M12 connectors for reliable process control, testing, and measurement applications.

  • Pt100 RTD technology for accurate temperature measurement
  • Standard M12 quick-install connectors for easy integration
  • Metal construction for industrial durability
  • Ideal for process control and testing applications
  • Precision measurement capabilities

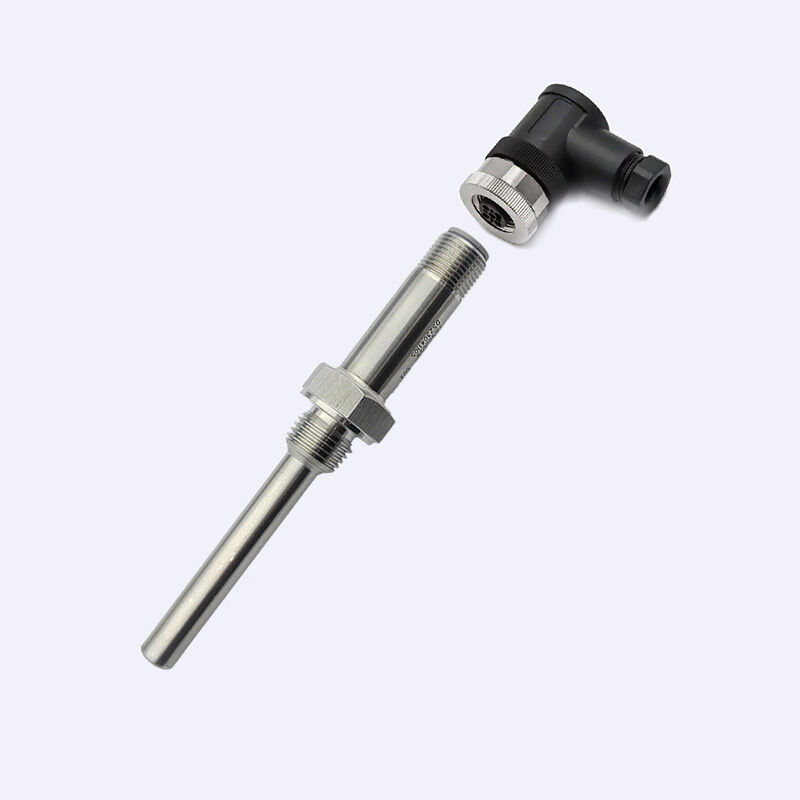

Pt100 RTD temperature sensor with M12 connector and quick-install interface for process control 1
