The stepped-tube packaged platinum resistance temperature sensors feature a stepped stainless steel tube (or other specified metals). The platinum resistance element is sealed inside and wired out to protect it. These sensors are widely applied in humid, liquid, dusty, corrosive, extrusive and conventional working environments, representing a common packaging form for temperature sensors.
| Category | RTD |
| Nominal Output | PT100/PT1000 |
| Accuracy | Class1/3B, A ,B or C per IEC60751 |
| Sheath Material | 304 316Stainless Steel |

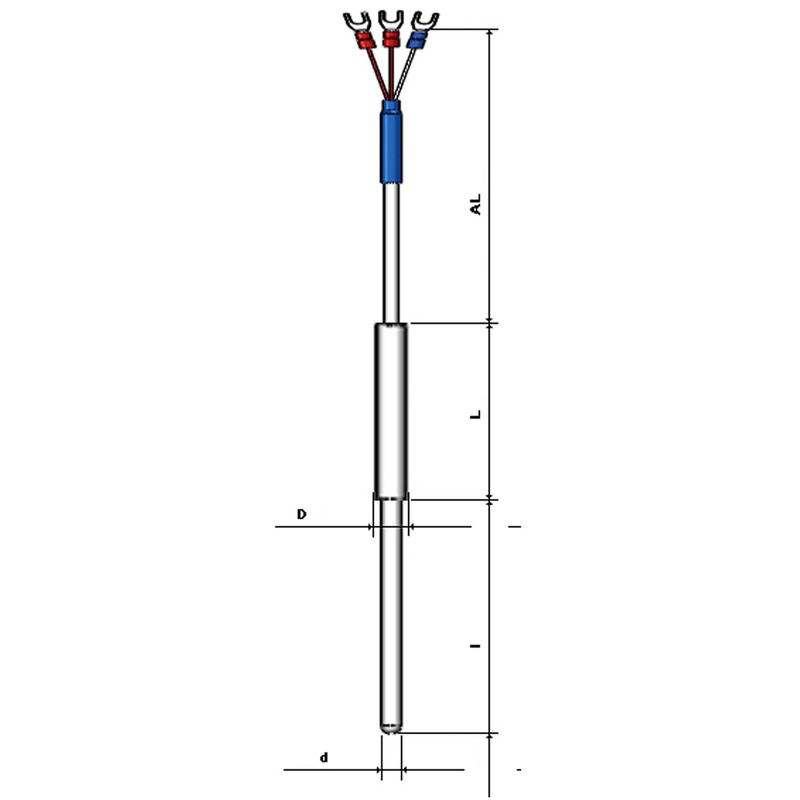

| Probe Diameter D | Customized 4mm 5mm…… |
| Probe Length L | Customized 20mm 30mm 40mm 50mm…… |
| Probe Diameter d | Customized 4mm 5mm…… |
| Probe Length l | Customized 20mm 30mm 40mm 50mm…… |
| Cable Length | 20’ or Customized 1M 2M…… |
| Number Of Wires | Two / Three / Four |
| Process Temperature Range | -40~200℃ or Customized |
| Termination Connection Type | Stripped leads |
| Number Sensing Points | one |
