Place of Origin:
Shaanxi, China
Brand Name:
BAIRUI
Model Number:
TE102
DS18B20 is a commonly used digital temperature sensor that outputs a digital signal. It features small size, low hardware overhead, strong anti-interference capability, and high accuracy. The DS18B20 digital temperature sensor is easy to wire and, after packaging, can be used in various applications, such as pipe-mounted, threaded, magnetically attached, and stainless steel-encapsulated types. Various models are available, including LTM8877 and LTM8874.
Its appearance is mainly changed according to the application. The packaged DS18B20 can be used for temperature measurement in cable trenches, blast furnace water circulation, boilers, computer rooms, agricultural greenhouses, clean rooms, ammunition depots, and other non-extreme temperature applications. It is wear-resistant, impact-resistant, small in size, easy to use, and available in various packaging forms, making it suitable for digital temperature measurement and control in various confined spaces.
| Model Number | TE102 |
| Place of Origin | China |
| Brand Name | BAIRUI |
| Operating Principle | Resistance Sensor |
| Output Type | Digital Sensor |
| Digital Chip | DS18B20 |
| Power Supply | 3.0~5.5VDC |
| Resolution | 9~12 bit |
| Operating Temperature Range | -50~+125℃ |
| Cable Type | PVC, 1m |
| Shell Material | Stainless Steel |
| Connector Options | Molex, JST, DuPont, CWB, CJT, U type etc. |
| Drive Pipe Options | Heat shrinkable tube; PVC tube; glass fiber tube |
| Connection Mode | Black: GND, Yellow: DATA, Red: VDD+ |
| Wire Type | UL Series |

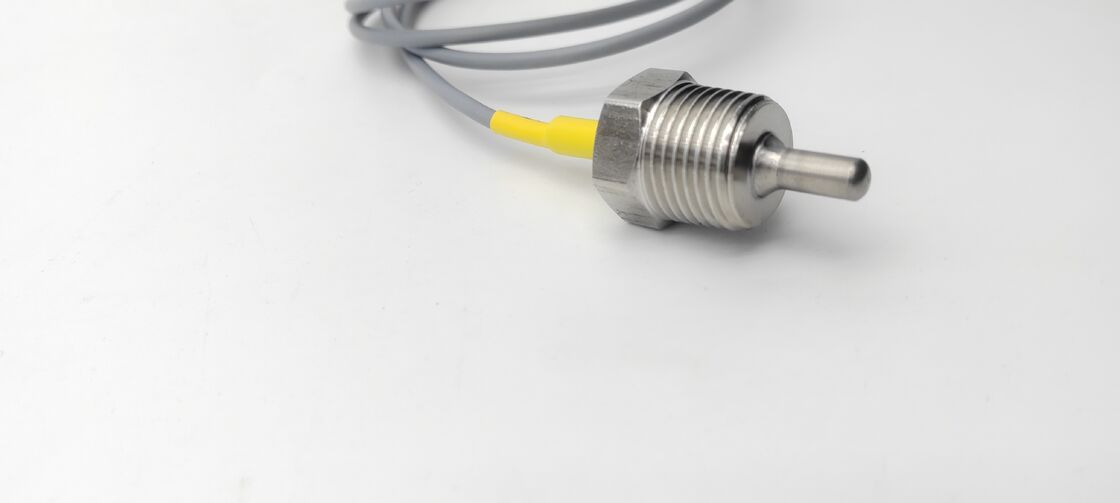

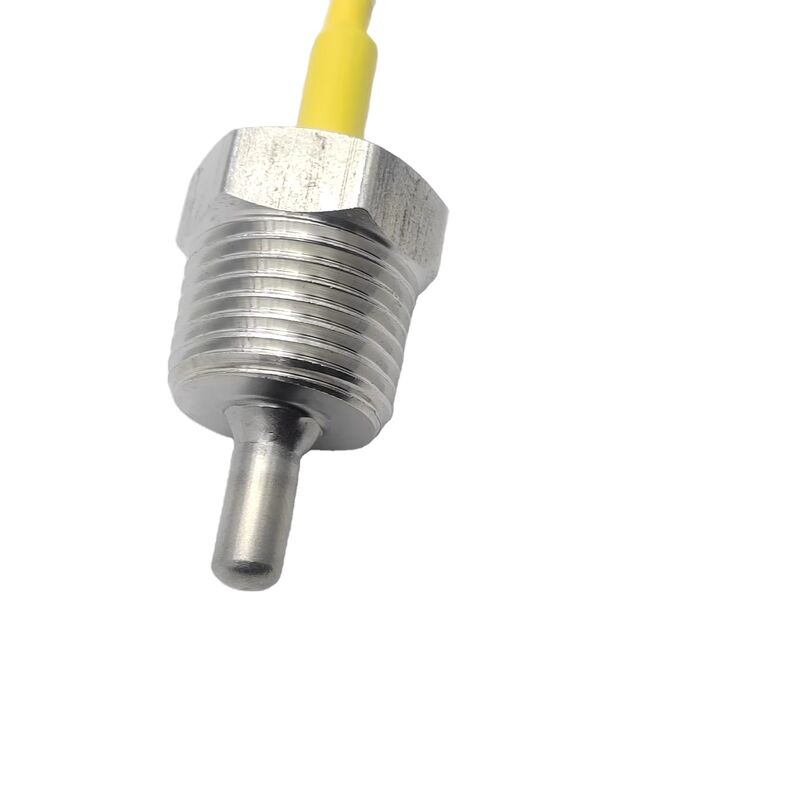

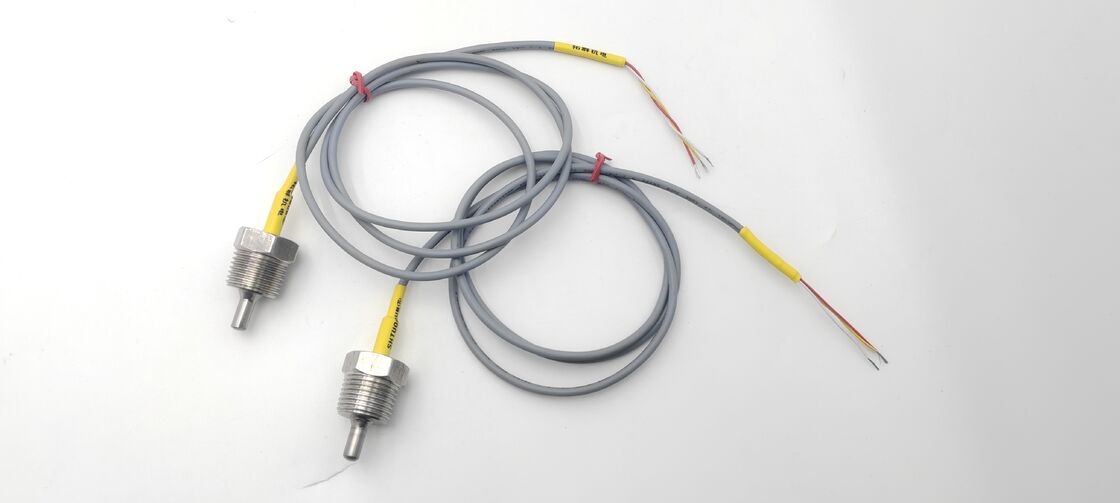

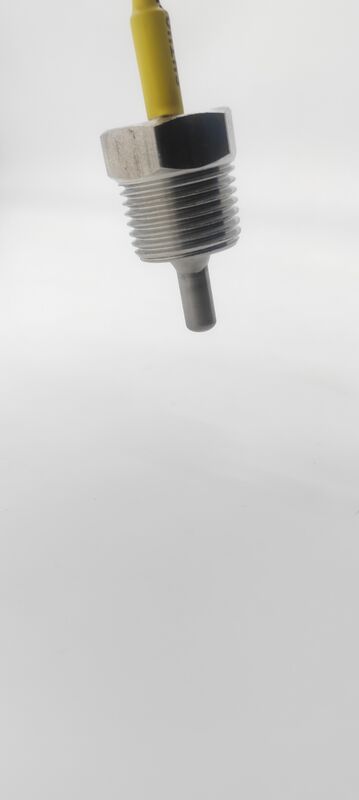

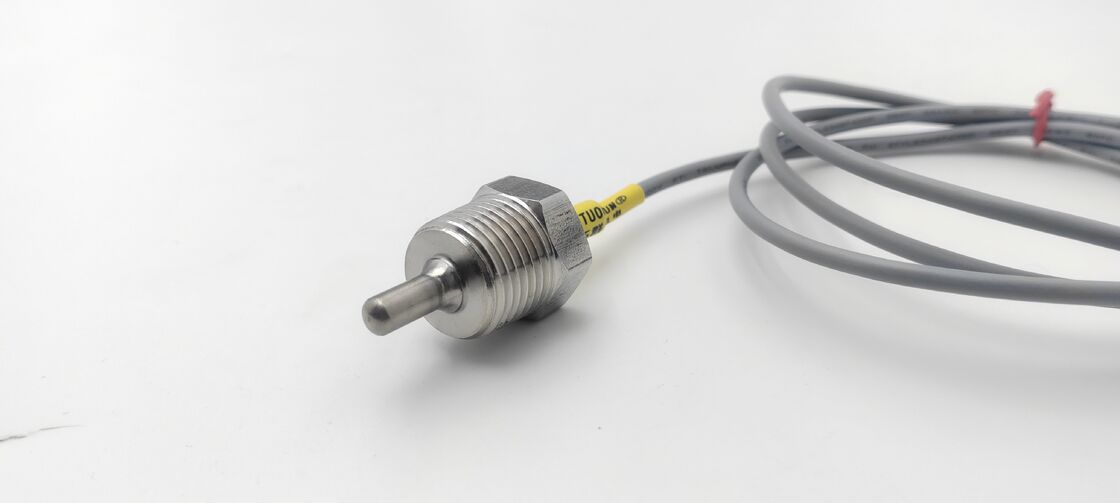

| Product Name | Stainless Steel Thread DS18B20 Temperature Sensor |
| Customization Options | Length, cable, thread size |
