PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples

PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples

Round head temperature transmitter RTD/TC

Universal temperature transmitter thermocouples

RTD/TC transmitter B/K/J/E/S/N

Place of Origin:

Shaanxi, China

Brand Name:

Bairui Electric

Model Number:

5331

Chat Now
Request A Quote
PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples
Product Details
Features:
Round Head Temperature Transmitter
Series:
Round Head Temperature Transmitter
Mounting Type:
Head Mount DIN Rail Mount
Description:
Round Head Temperature Transmitter, Round Head Temperature Transmitter
Type:
Temperature Sensor
Usage:
Temperature/resistance Signal Conversion
Theory:
NTC Thermistor Temperature Sensor
Output:
3.5...23 MA / 16 MA
Highlight:

Round head temperature transmitter RTD/TC

,

Universal temperature transmitter thermocouples

,

RTD/TC transmitter B/K/J/E/S/N

Payment & Shipping Terms
Minimum Order Quantity
5 pieces
Payment Terms
L/C,D/A,D/P,Western Union,T/T
RELATED PRODUCTS
Good price PR electronics5333A/5333B Transmission Output Pt100 Temperature Transmitter Sensor online

PR electronics5333A/5333B Transmission Output Pt100 Temperature Transmitter Sensor

Chat Now
Good price K E Type Thermocouple Microwave Oven Sensor Customized ODM for Coffee Maker Induction Cooker Measures Oil Temperature online

K E Type Thermocouple Microwave Oven Sensor Customized ODM for Coffee Maker Induction Cooker Measures Oil Temperature

Chat Now
Good price Customized Platinum Resistance Rtd Pt100 Stainless Pt1000 Temperature Sensor 4 Wires online

Customized Platinum Resistance Rtd Pt100 Stainless Pt1000 Temperature Sensor 4 Wires

Chat Now
Good price Hot Sale Stainless Steel Electronic Thermostat for Kitchen ODM Folding Probe for Precise Control Baking Barbecue Food online

Hot Sale Stainless Steel Electronic Thermostat for Kitchen ODM Folding Probe for Precise Control Baking Barbecue Food

Chat Now
CONTACT US
86--18149042799
xianbairui@foxmail.com
Chat Now
Product Description

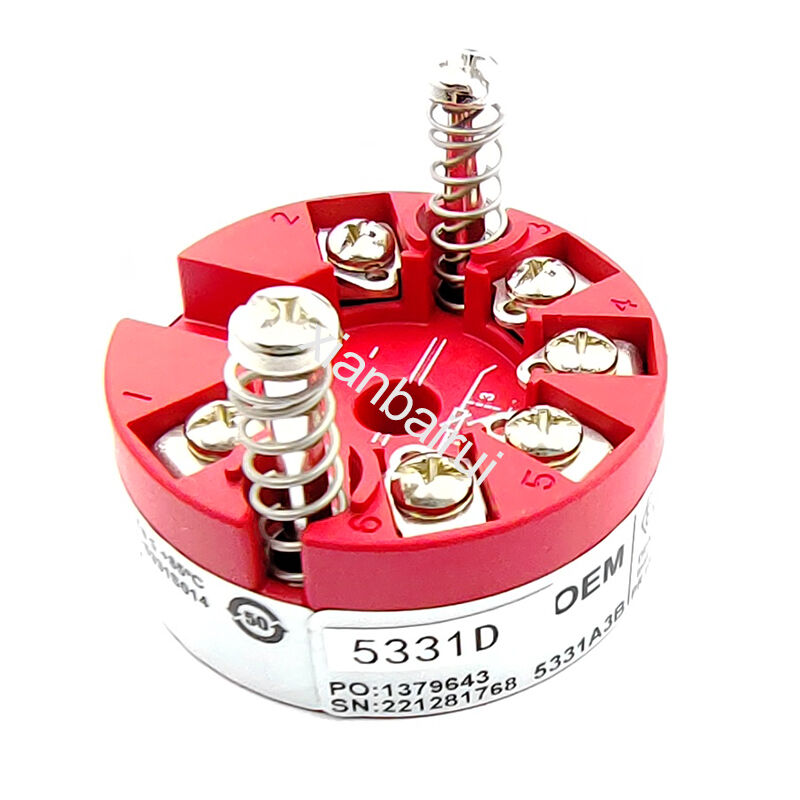

PR electronics 5331A/5331D Round Head Temperature Transmitter
Universal RTD/TC type compatible with B/K/J/E/S/N thermocouples
Product Specifications
Product Name Round Head Temperature Transmitter
Installation Mode Head mount, DIN rail mount
Model Number 5331
Origin Denmark
Brand PR electronics
Feature Temperature/resistance signal conversion
Input Specifications
mV, Measuring Range / Minimum Range -12...800 mV / 5 mV
RTD, Measuring Range / Minimum Range -200...+850°C / 25°C
Linear Resistance, Measuring Range / Minimum Range 0...5000 Ω / 30 Ω
Sensor Connections Two lines, Three lines, Four lines
TC Type B, E, J, K, L, N, R, S, T, U, W3, W5, Lr
Maximum Offset 50% of the selected maximum value
Cold-end Compensation Internal/external
Output & Performance
mA Signal Range / Minimum Range 3.5...23 mA / 16 mA
Ambient Temperature -40...+85°C
Power Supply Voltage, DC 7.2...35 VDC
Maximum Power Consumption 0.8W
Isolation Voltage, Test/Working 1500 VAC / 50 V
Response Time 1...60 s
Signal Dynamic Range, Input/Output 20 bit / 16 bit
Precision < ±0.05% of the measuring range
Temperature Coefficient < ±0.01% of the range / °C
Additional Specifications
NAMUR NE21, NE43
Channels 1
Parameter Setting Mode Loop Link
Structural Dimensions Ø 44 x 20.2 mm
Application Scope Whole industry
Application Industry Temperature measurement
Product Images
PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 0 PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 1 PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 2

Company Profile
PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 3
Factory Show
PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 4 PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 5
Packing & Shipping
PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 6
Frequently Asked Questions
PR electronics 5331A/5331DRound head temperature transmitter RTD/TC Universal type for B/K/J/E/S/N thermocouples 7
