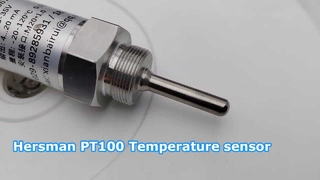

Pt100 Temperature Sensor -20-150C Machine Pipe

Thermometry
January 09, 2026
Chat Now Contact Us
Brief: Curious about how this performs in practice? Join us for a hands-on look at the Small Temperature Sensor Pt100 designed for machine and pipe temperature measurement. This video provides a detailed walkthrough of its installation process, technical specifications, and real-world applications across various industrial environments.
Related Product Features:
  • Precision PT100 sensor with temperature ranges from -20°C to 150°C and high-temperature versions up to 250°C.
  • Multiple mounting options with screw mounting and various thread sizes including G1/2, G1/4, G1/8, and M20*1.5.
  • Available in both two-wire and three-wire output configurations with 4-20mA output signal.
  • High accuracy options of 0.2, 0.25, or 0.5 for precise temperature monitoring.
  • IP65 protection grade ensures reliable operation in demanding industrial environments.
  • Customizable probe lengths from 50mm to 200mm to suit specific application requirements.
  • Standard 304 stainless steel construction with optional 316L material for corrosive environments.
  • Hirschmann interface compatibility with customizable connection options for flexible integration.
FAQs:
  • What temperature ranges are available for this PT100 sensor?
    The sensor offers multiple temperature ranges including -20~100°C, 0-100°C, 0-150°C, -30-150°C, and a high-temperature version that covers -50~250°C for demanding applications.
  • What installation options does this temperature sensor support?
    The sensor features screw mounting with various thread sizes including G1/2, G1/4, G1/8, and M20*1.5, providing flexible installation options for different machine and pipe configurations.
  • What output signals and wiring configurations are available?
    The sensor is available in both two-wire and three-wire output configurations with a standard 4-20mA output signal, operating on 24VDC power supply (9-30V range) for reliable industrial communication.
  • Can the sensor be customized for specific application requirements?
    Yes, the sensor offers multiple customization options including probe lengths from 50-200mm, material selection (standard 304 stainless steel or optional 316L), and customizable interface types to meet specific industrial needs.
