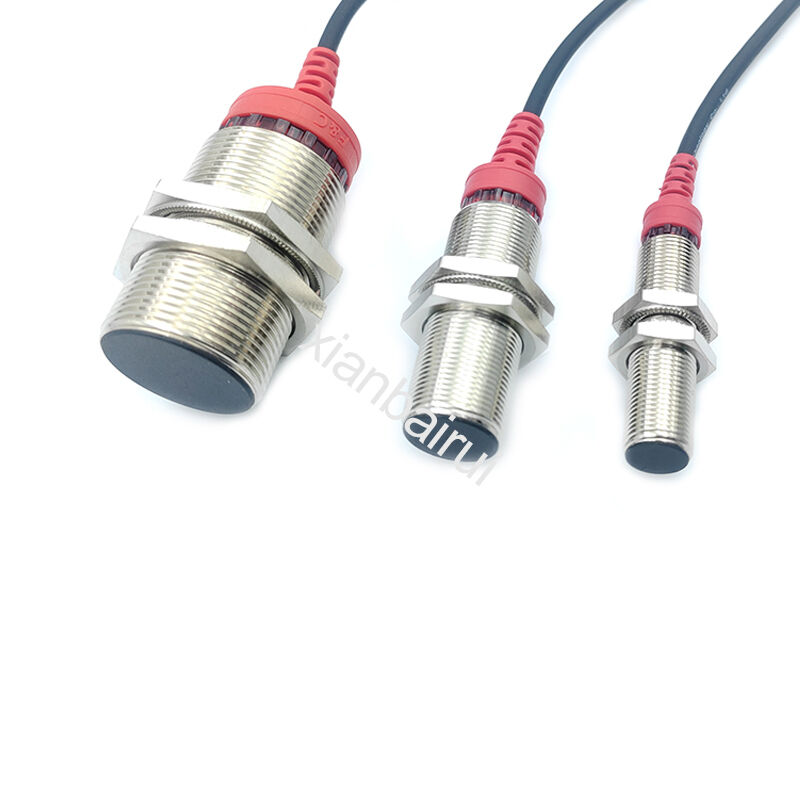

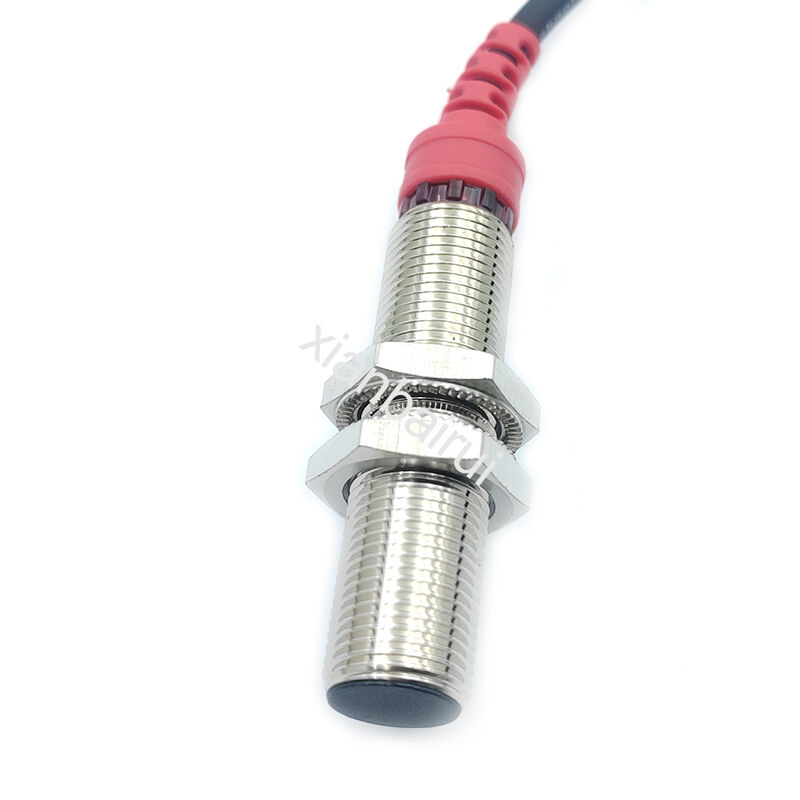

Name: M12mm High Quality Automatic Ip67 Flush Detection Npn Pnp Metal Switch Standard Inductive Proximity Sensor
Brand: Xi'an Bairui Electrical Technology Co., Ltd.
SKU: LN4-50GM12
Price: 8.00 USD
Availability: InStock

Home > Products > Proximity sensor >

M12mm High Quality Automatic Ip67 Flush Detection Npn Pnp Metal Switch Standard Inductive Proximity Sensor

M12mm IP67 inductive proximity sensor

NPN PNP metal proximity switch

automatic flush detection sensor

Place of Origin:

Shaanxi, China

Brand Name:

Xi 'an Bairui

Model Number:

LN4-50GM12

Chat Now

Request A Quote

Product Details

Features:

Inductor

Series:

M12

Mounting Type:

Screw Thread

Description:

Object Detection, Bairui

Manufacturing Date Code:

2025

Type:

Inductive Proximity Sensor

Usage:

Object Detection

Theory:

Inductor

Supply Voltage:

9-36V Dc

Ingress Protection:

IP65

Shielding:

Unshielded

Termination Style:

Sensing Distance:

2-4mm

Indicator:

LED

Response Frequency:

800Hz

Material - Body:

Stainless Steel

Highlight:

M12mm IP67 inductive proximity sensor

NPN PNP metal proximity switch

automatic flush detection sensor

Payment & Shipping Terms

Minimum Order Quantity

10 pieces

Price

$8-8.50 / piece

RELATED PRODUCTS

86--18149042799

xianbairui@foxmail.com

Chat Now

Product Description

M12mm High Quality Automatic IP67 Flush Detection NPN PNP Metal Switch Standard Inductive Proximity Sensor

Product Specifications

Product Name	Inductive Proximity Sensor
Specification	M12
Model Number	LN4-50GM12
Place of Origin	Xi'an
Brand	Xi'an Bairui
Feature	Object Detection
Detection Distance	4mm
Operating Voltage	12~24VDC ±10%
Current Consumption	< 10mA
Load Current	100mA
Leakage Circuit	< 0.01mA No-load
Residual Voltage	< 1.5VDC (load current 100mA, wire 2 meters)
Repeatability	< 2% detection distance
Response Frequency	1KHZ
Reaction Time	0.5 ms
Power Supply Reverse Protection	Yes
Output Short-Circuit Protection	Yes
Output Mode	NPN.NO/NPN.NC PNP.NO/PNP.NC
Ambient Temperature	-25°C to 70°C (storage temperature -25°C to 70°C)
Temperature Drift	< ±10% detection distance at 25°C
Relative Humidity	35% to 95% RH (storage humidity 35% to 95%)
Class of Protection	IP67
Impulse Withstand Voltage	1000VAC 50~60HZ 1min (between charging part and housing)
Insulation Resistance	> 20MΩ (between charging part and housing)
Connection Mode	φ3x2M/2-wires φ3x2M/3-wires
Shell Material	PBT + Copper Nickel Plating + PVC
Net Weight	Approximately 35g
Application Industry	Complete Industry, Automation
